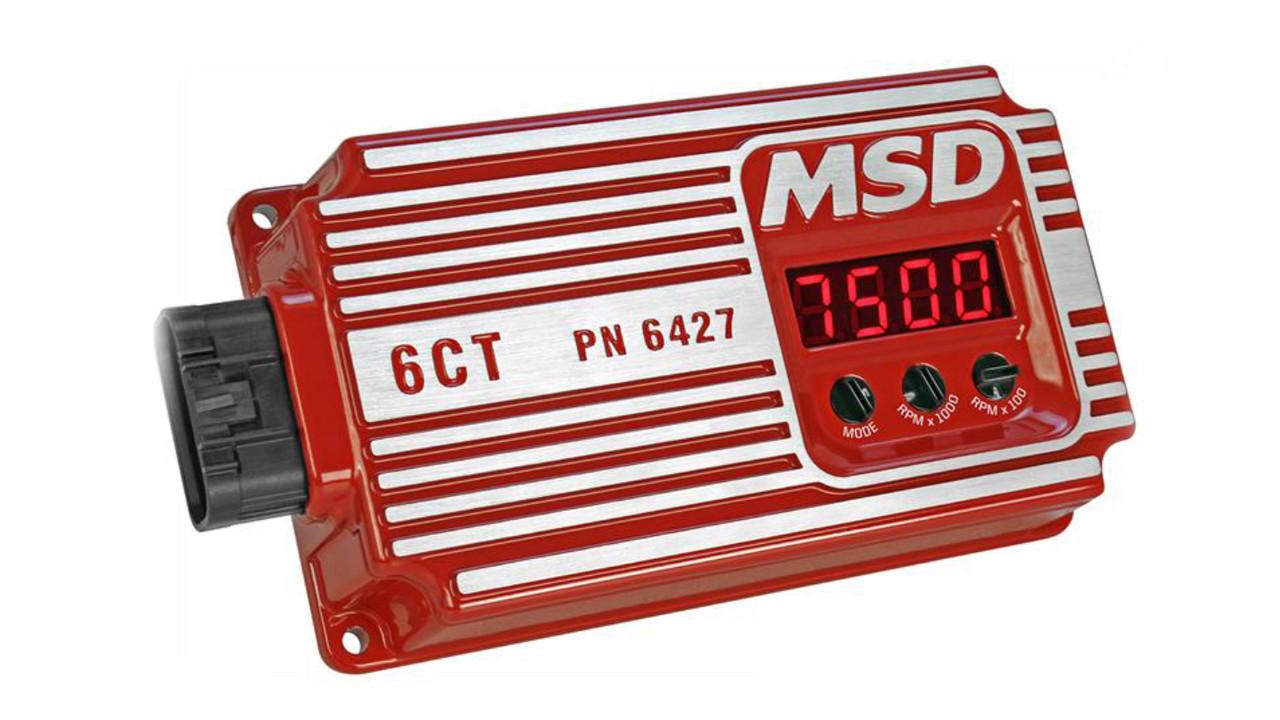

Msd Ignition 6Ct Circle Track Ignition Controller

The 6CT Circle Track Ignition Control unit stands as the pinnacle of ignition technology for circle track applications, boasting superior design and durability. Infused with the renowned power of MSD Ignition, the 6CT comes equipped with a host of features designed to elevate performance on the track. The prominent digital LED display, coupled with laser-etched rotary dials, facilitates effortless adjustment of the rev limiter setting.

Rev limiting, controlled by a microprocessor, ensures smooth operation that minimally impacts the chassis when entering turns. The rotary dials serve multiple functions, allowing users to set cylinder select for 4, 6, and 8 cylinder engines, and adjust the built-in start retard with options of 0⁰, 10⁰, or 20⁰ of timing retard for swift and reliable starts. The LED display serves as a live tachometer and can showcase the racecar's battery voltage. Additionally, the unit records the highest RPM achieved during the race, providing easy recall on the LED display.

Encased in a robust epoxy-filled cast aluminum housing, the 6CT is fortified against circuit board damage, making it well-suited for the demanding conditions of dirt track racing. Its advanced digital control ensures reliability over countless laps. The unit features a single sealed connector, promoting clean and dry wiring. Key features include:

• MSD’s smoothest rev limiter for minimal chassis disturbance
• Large and easily readable LED display
• Simple setup with three rotary dials on the unit's face
• Built-in Start Retard with adjustable increments for quick starts and extended starter life
• LED displays rev limit, highest RPM, cylinder select, start retard, and battery voltage, with a tach mode option
• Full spark energy delivery down to 6 volts battery supply
• Highly efficient, low current draw for extended battery life
• Rugged, epoxy-filled housing for protection against demanding race conditions
• Single plug-in connector for tidy wiring
• Tamper-proof screws to prevent unauthorized modifications
• Records the highest RPM achieved in the last 20 minutes of run time
• Compatible with 4, 6, and 8 cylinder engines
• Reverse polarity and overheat protection for ultimate reliability
