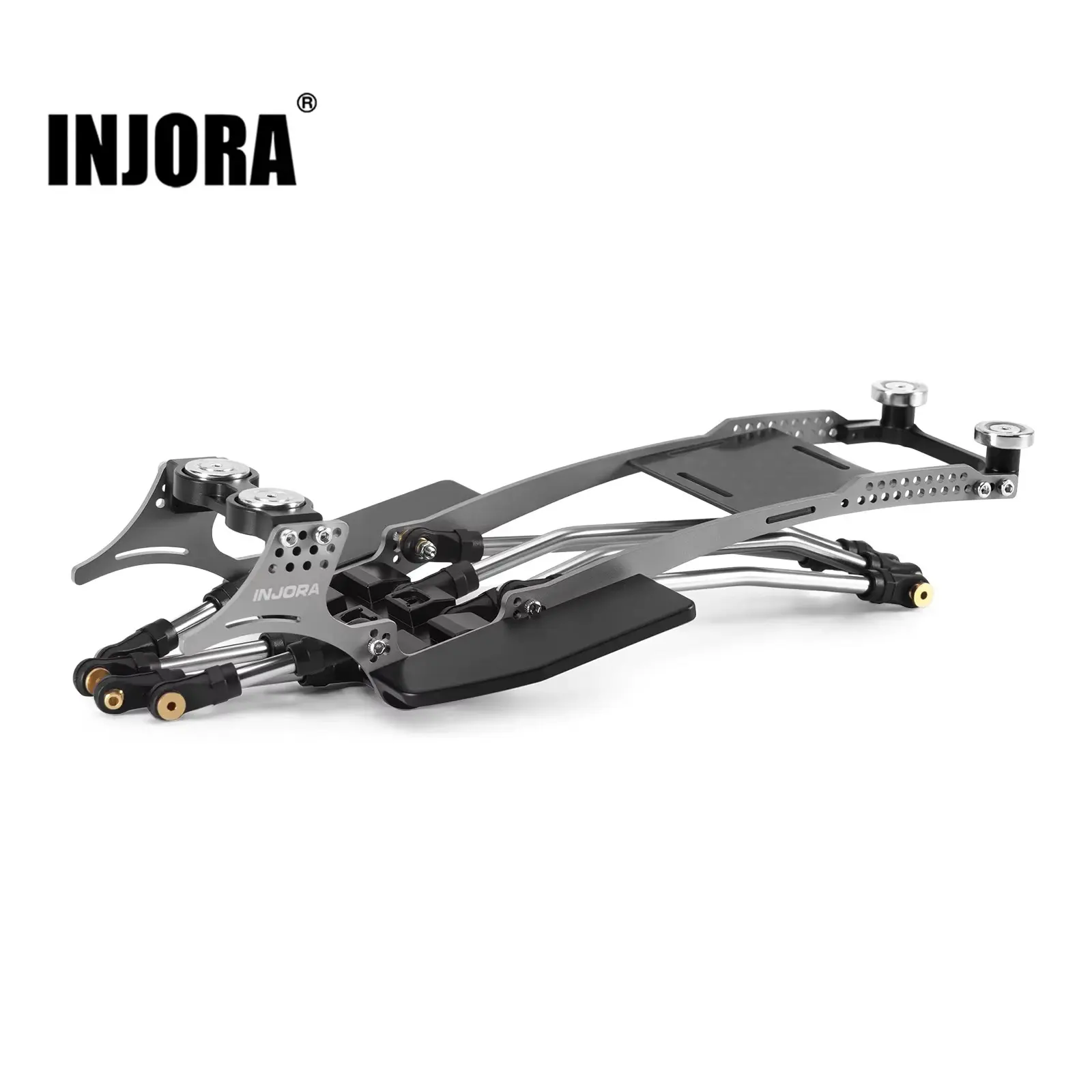

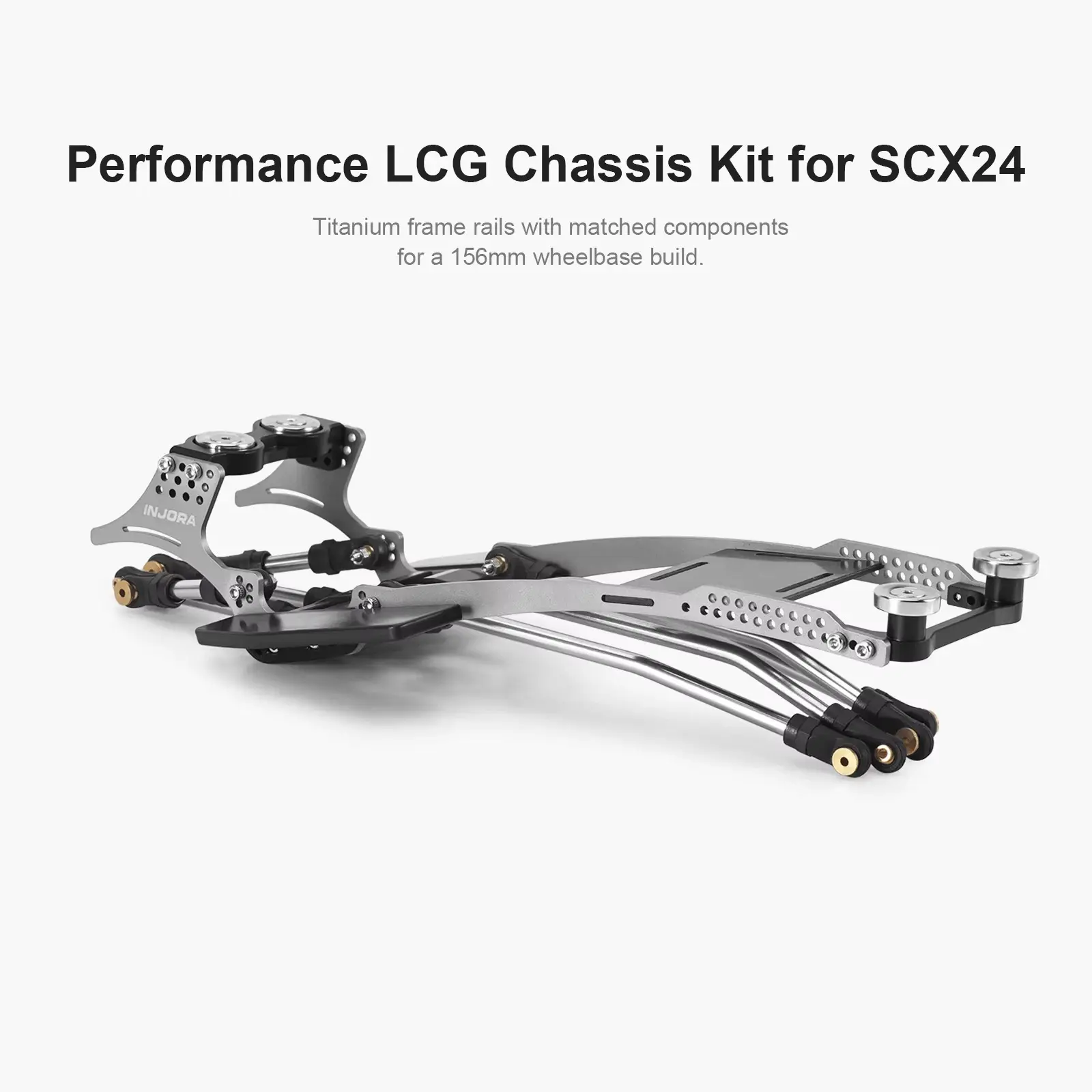

Built for SCX24 builders ready to step into a more performance-focused setup without having to work out the whole chassis from scratch.
The core geometry and fitment are already matched giving you a solid starting point while still leaving room to tune the suspension around your build.
Compatibility:
Motor: Compatible with INJORA 050 brushed motors and 1721 / 2204 brushless motors
Body: Compatible with INJORA BUG24 body (trimming required). Not compatible with INJORA IR60-24 IR40-24 and IR90-24 bodies.
Transmission: Compatible with the stock SCX24 and INJORA WG24 transmissions (WG24 cannot be used with the 2204 motor).
Features:
Titanium frame rails deliver high strength and rigidity for a solid chassis foundation
Brass skid plate lowers the center of gravity and supports reversible transmission mounting

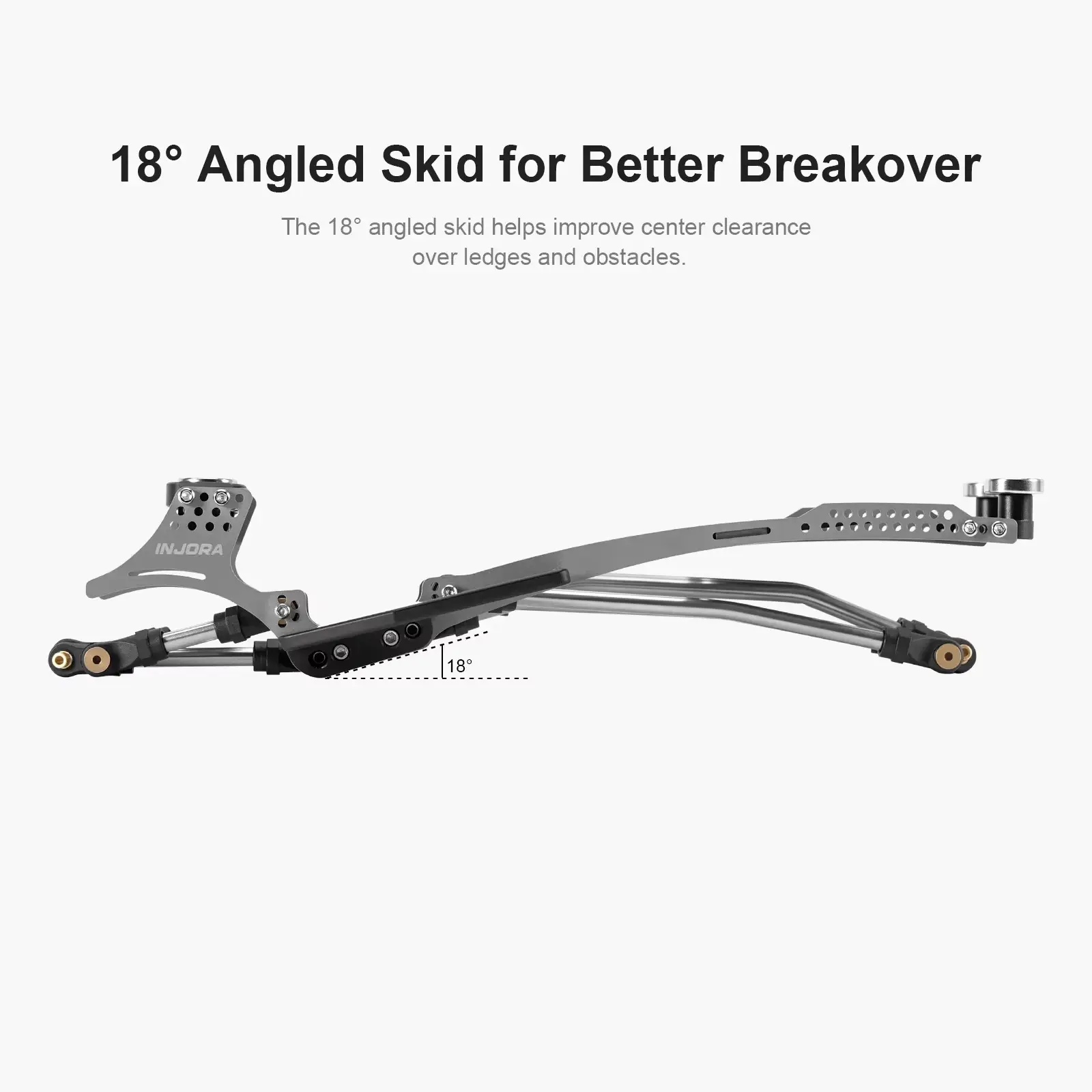

18° angled high-clearance design improves breakover capability and climbing stability
Multi-position shock mounting points allow flexible suspension setups for different driving styles and terrains
Stainless steel drive shafts ensure durable power transfer with lengths matched to the chassis setup
CNC aluminum magnetic body mounts provide secure fitment and quick body removal
3.0mm stainless steel double-bent link geometry helps reduce link hang-ups on rocks and uneven terrain.
Low-friction POM rock sliders allow the chassis to slide smoothly over rocks and obstacles
Specifications:
Part Number: INC-24H
Frame Rails Material: Titanium
Body Mount Material: Aluminum
Skid Plate Material: Brass
Links Material: Stainless Steel & Nylon
Drive Shafts Material: Stainless Steel
Rock Sliders Material: POM
Battery Tray Material: Carbon Fiber
Chassis Size: 144 × 37.6mm
Wheelbase: 156mm
Total Weight: 99g

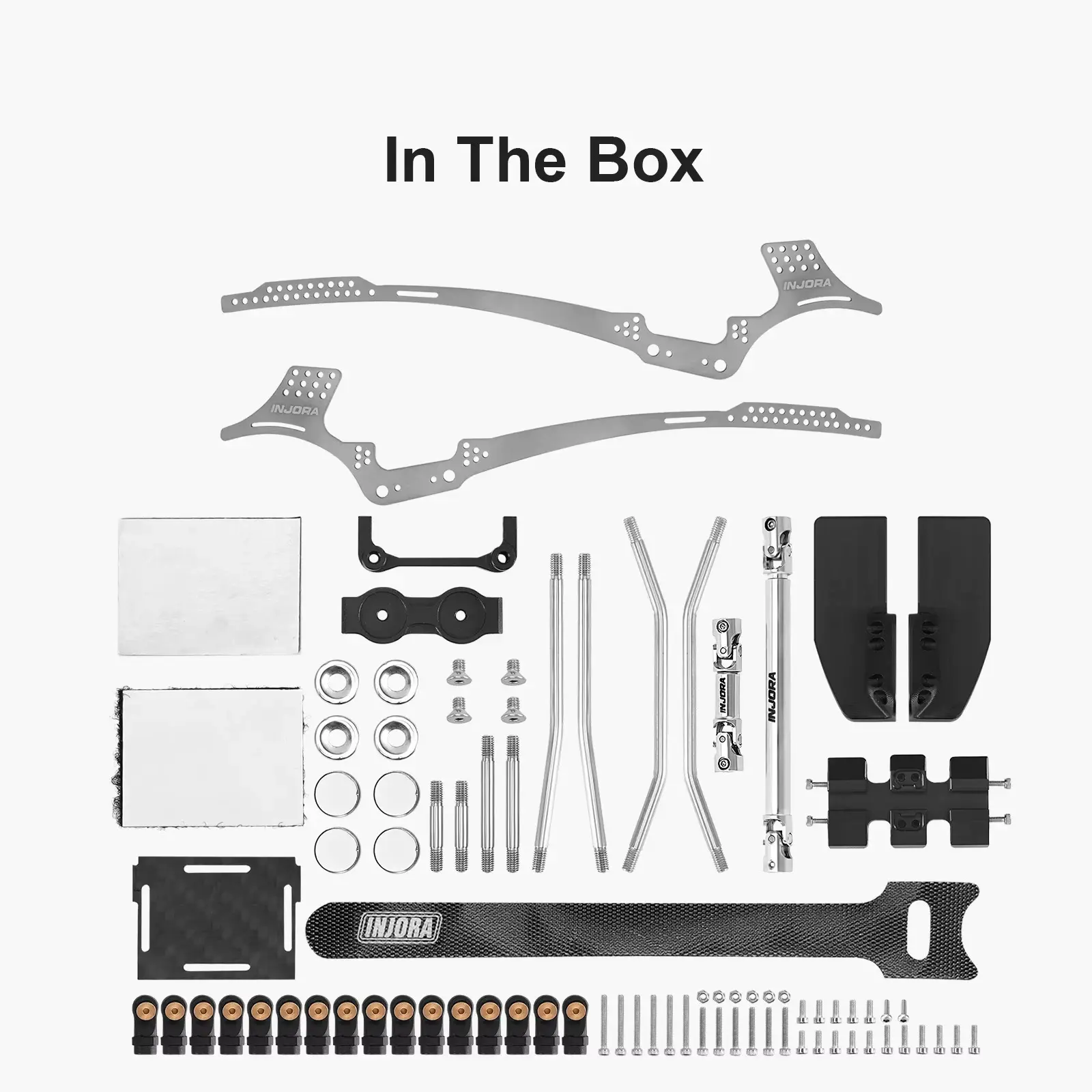

Package List:
1 × Titanium LCG Chassis Kit
