Pack serious steering power into a compact package. The Injora INJS2065 PRO 9kg Waterproof Metal Gear Digital Micro Servo delivers high-torque, high-speed performance with durable stainless steel gears, a rugged aluminum alloy and nylon case, and high-voltage compatibility for demanding RC crawler applications.

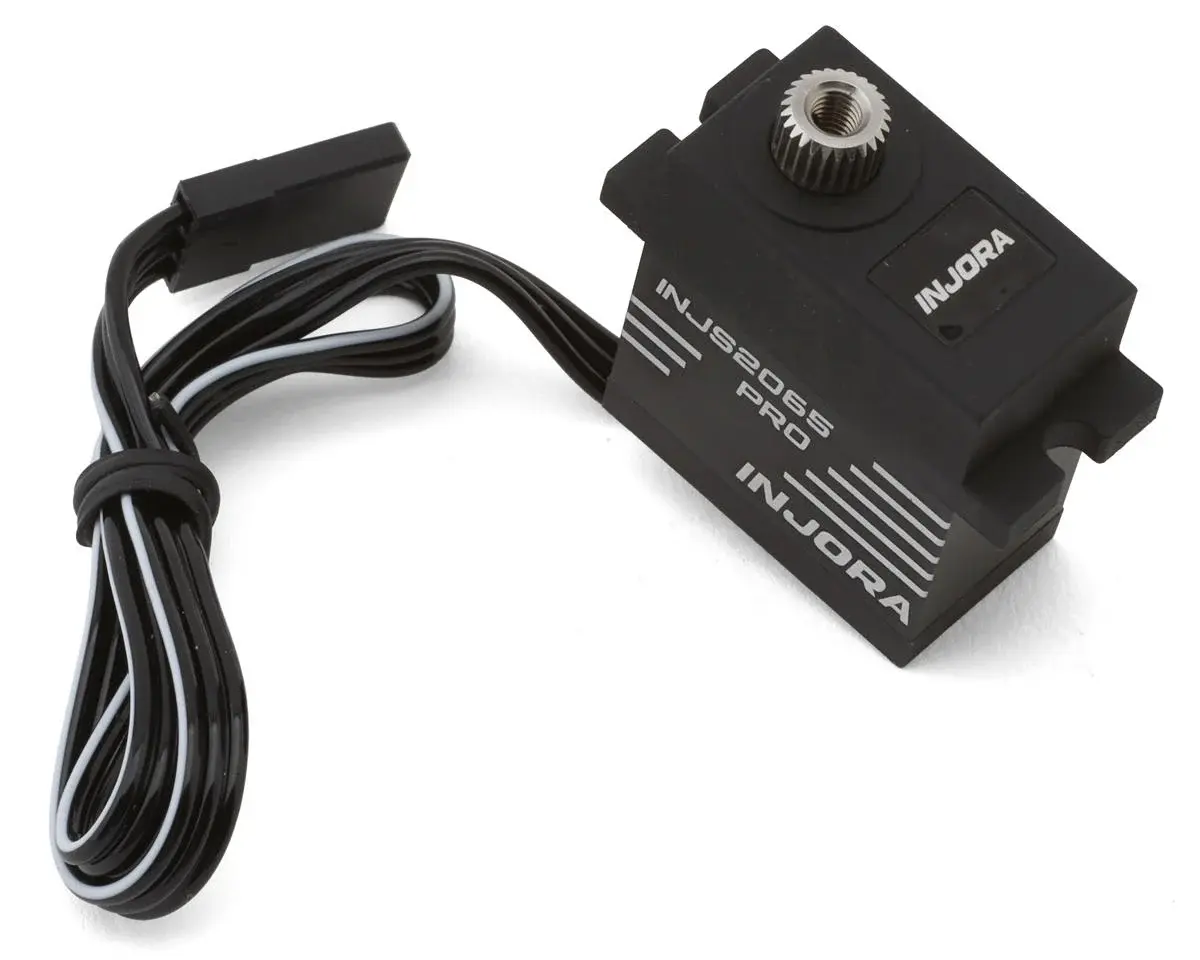

About the INJS2065 PRO 9kg Waterproof Metal Gear Digital Micro Servo
High-Torque
The INJS2065 PRO delivers up to 9.00 kg-cm of steering torque at 8.4V for increased control in technical crawling, steep side-hills, and high-load steering conditions. Its high-torque digital design helps maintain precise wheel positioning when tires are heavily loaded against rocks and obstacles. The compact design makes it an ideal steering upgrade for RC crawler platforms requiring powerful and reliable steering performance.
Fast Response
Built for both power and speed, the INJS2065 PRO provides fast, smooth, and precise steering response for demanding terrain. At 8.4V, steering speed reaches up to 0.061 sec/60°, helping deliver quick steering corrections during technical and competition crawling. Its digital operation supports accurate steering inputs and responsive control.
Rugged Construction
A durable aluminum alloy and nylon case, stainless steel internal gears, and a waterproof design provide the strength and reliability needed for demanding RC applications. The micro 25T output spline supports compatible servo horns, while the 250mm JR connector lead offers convenient installation. High-voltage support from 4.8–8.4V provides flexible power options for a wide range of RC setups.
Features:
- Delivers up to 9.00 kg-cm of torque at 8.4V
- High-speed digital response for precise steering control
- Reaches 0.061 sec/60° at 8.4V
- Aluminum alloy and nylon case construction
- Stainless steel internal gears for strength and durability
- Waterproof design for reliable performance in wet conditions

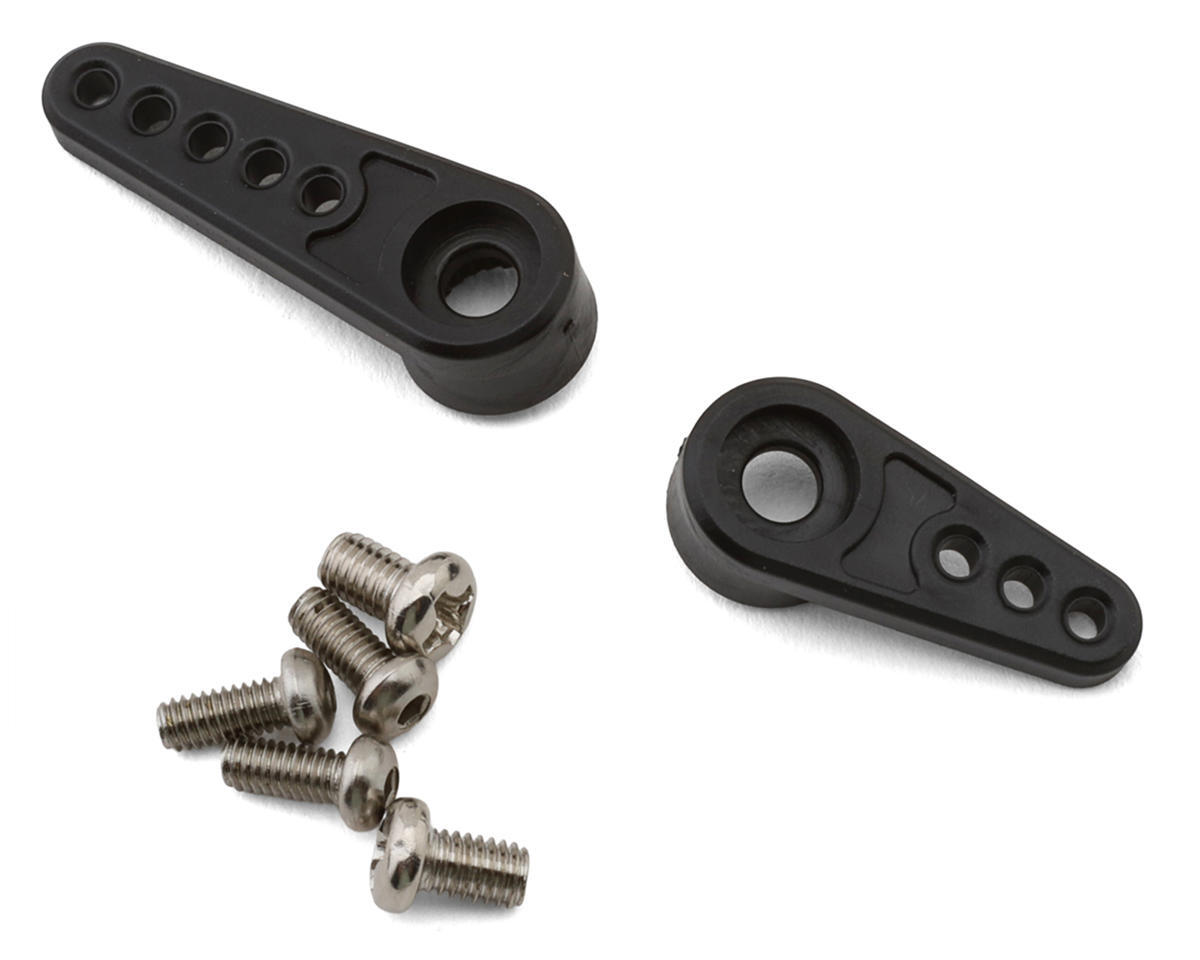

- Micro 25T output spline
- 250mm JR connector lead with 26AWG wire
- Supports 4.8–8.4V high-voltage operation
Includes:
- (1) INJS2065 PRO 9kg Waterproof Metal Gear Digital Micro Servo
Specifications:
| Application | RC Vehicles |
|---|---|
| Part Number | INJS2065 PRO |
| Input Voltage | 4.8–8.4V |
| Speed: | |
| @7.4V: | 0.069 sec/60° |
| @8.4V: | 0.061 sec/60° |
| Torque: | |
| @7.4V: | 110.1oz.in (7.93kg-cm) |
| @8.4V: | 125.0oz.in (9.00kg-cm) |
| Motor | Core Motor |
| Control Signal | PWM |
| Operating Angle | 180° (500–2500?s) |
| Output Spline | ?5.9 25T |
| Gear Material | Stainless Steel |
| Housing Material | Aluminum Alloy, Nylon |
| Waterproof | Yes |
| Connector | JR |
| Wire Length | 9.84in (250mm), 26AWG |
| Dimensions (LxWxH) | 0.91×0.51×1.02in (23×13×25.9mm) |
