INJORA INJS15 15KG Coreless High Torque Micro Servo 25T for 1/18 1/24 RC Crawler

INJORA INJS15 15KG Coreless High Torque Micro Servo for 1/18 1/24 RC Crawler

Compatible with INJS11 servo mounts and horns

Features:

• Same size as INJS11, but with more torque — a great choice for heavier crawlers.
• CNC-machined aluminum case for strength and durability
• Coreless motor provides fast response and stable output
• Stainless steel gears for reliable long-term use
• High torque output supports heavier micro crawler builds

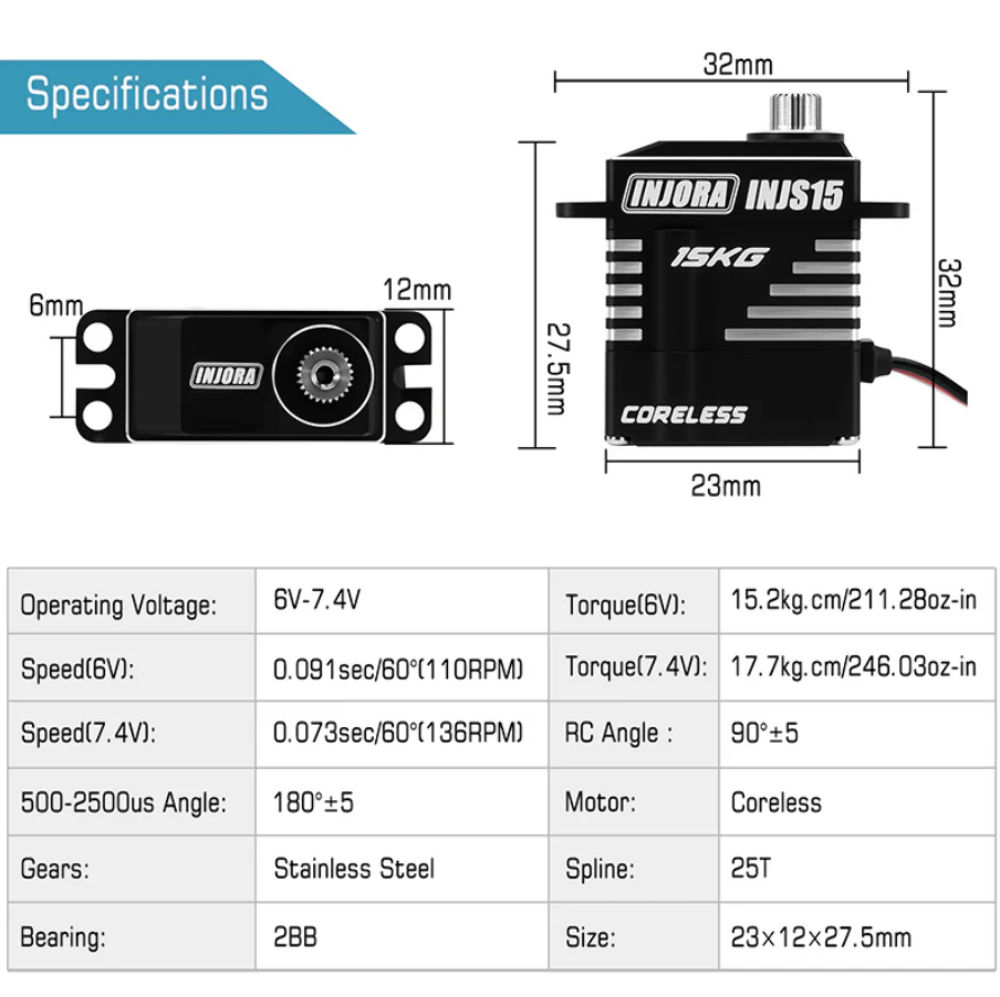

Specifications:

• Part Number: INJS15
• Operating Voltage: 6V-7.4V
• Torque(6V): 15.2kg.cm/211.28oz.in
• Speed(6V): 0.091sec/60° (110RPM)
• Torque(7.4V): 17.7kg.cm/246.03oz.in
• Speed(7.4V): 0.073sec/60° (136RPM)
• RC Angle: 90°±5°
• 500-2500μs Angle: 180°±5°
• Motor: Coreless
• Gears: Stainless Steel
• Spline: Φ4.9 Mini 25T
• Bearing: 2BB
• Lead Length: 250mm
• Size: 23×12×27.5mm
• Weight: 22g

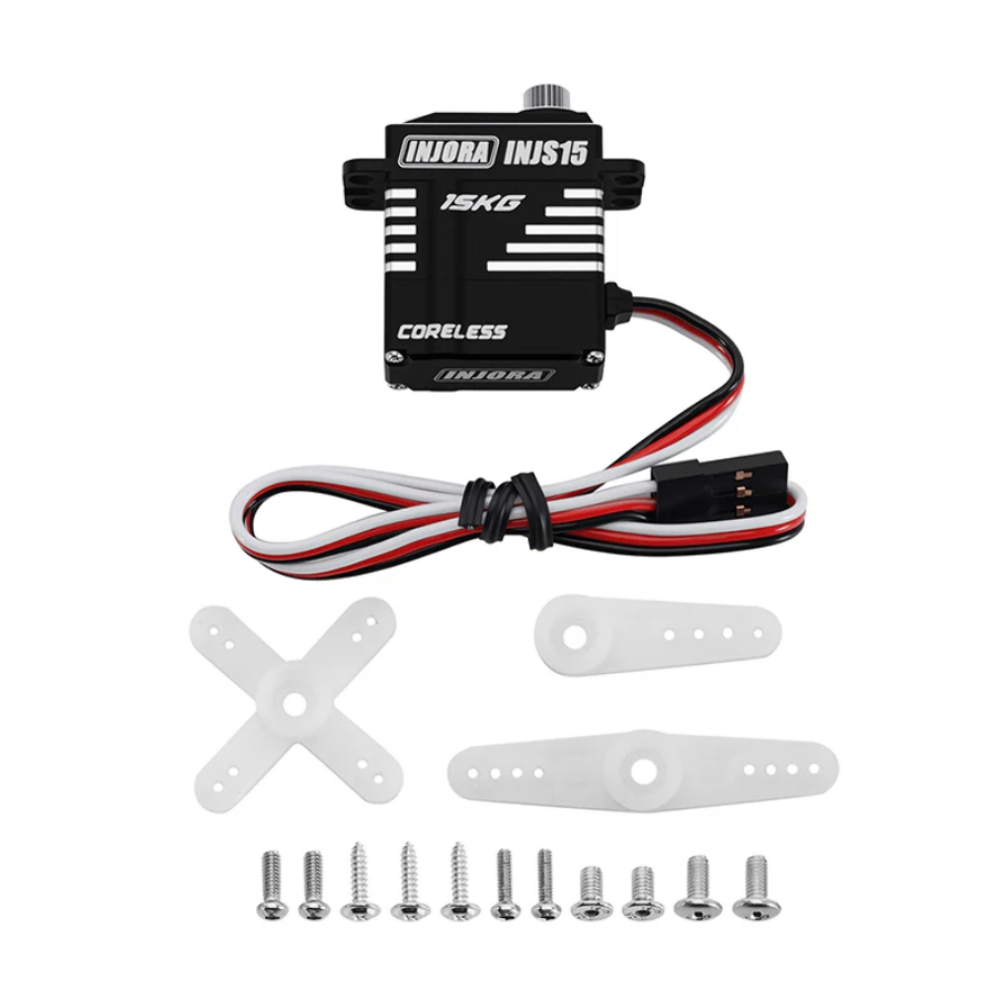

Package List:
1 × INJS15 Coreless Servo
