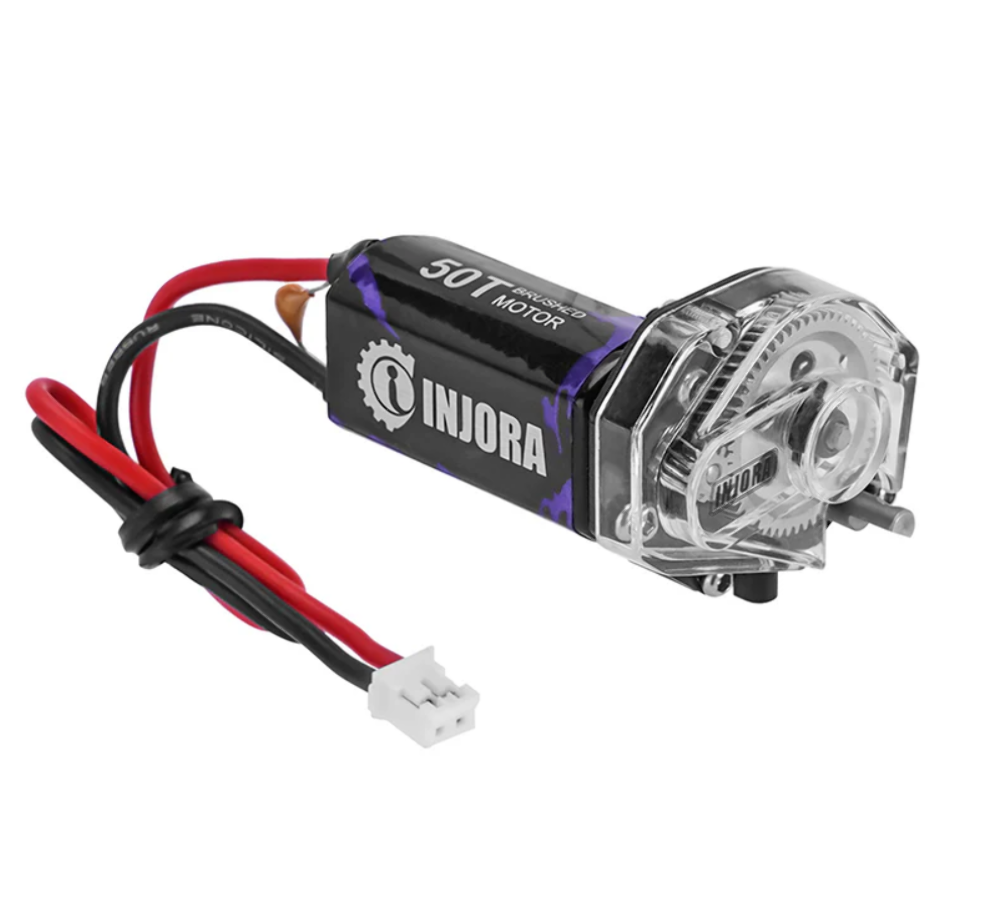

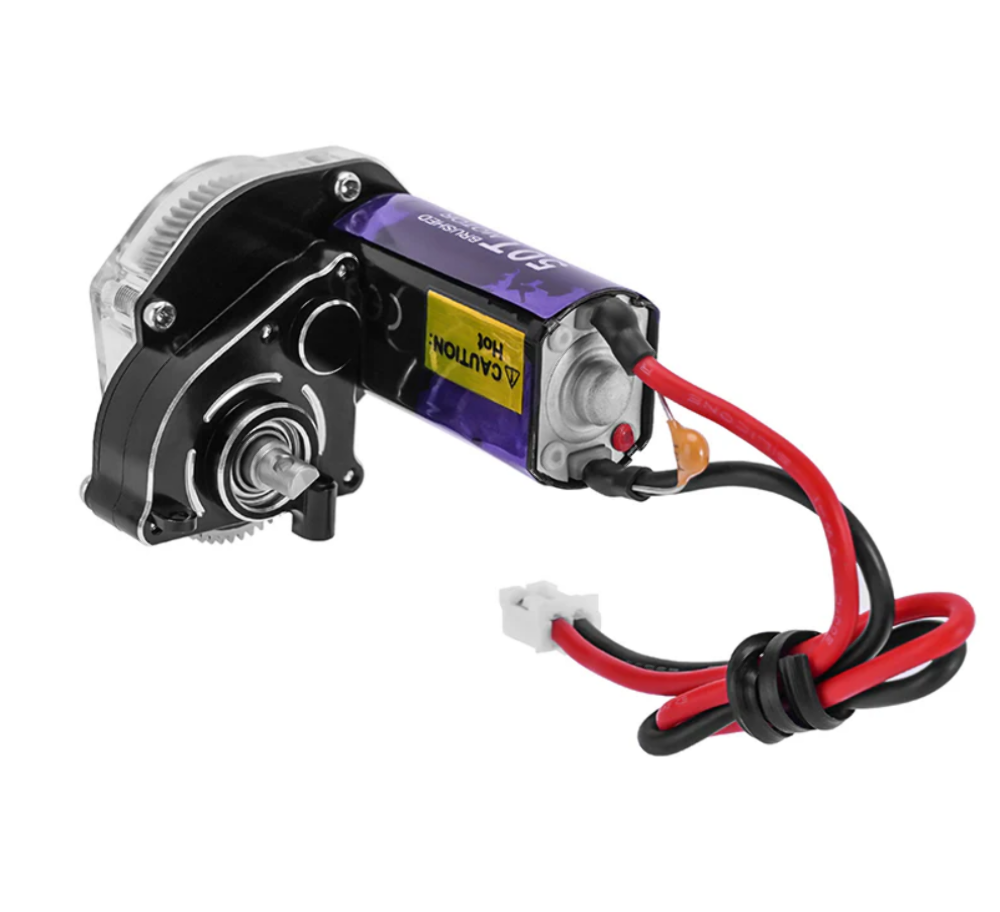

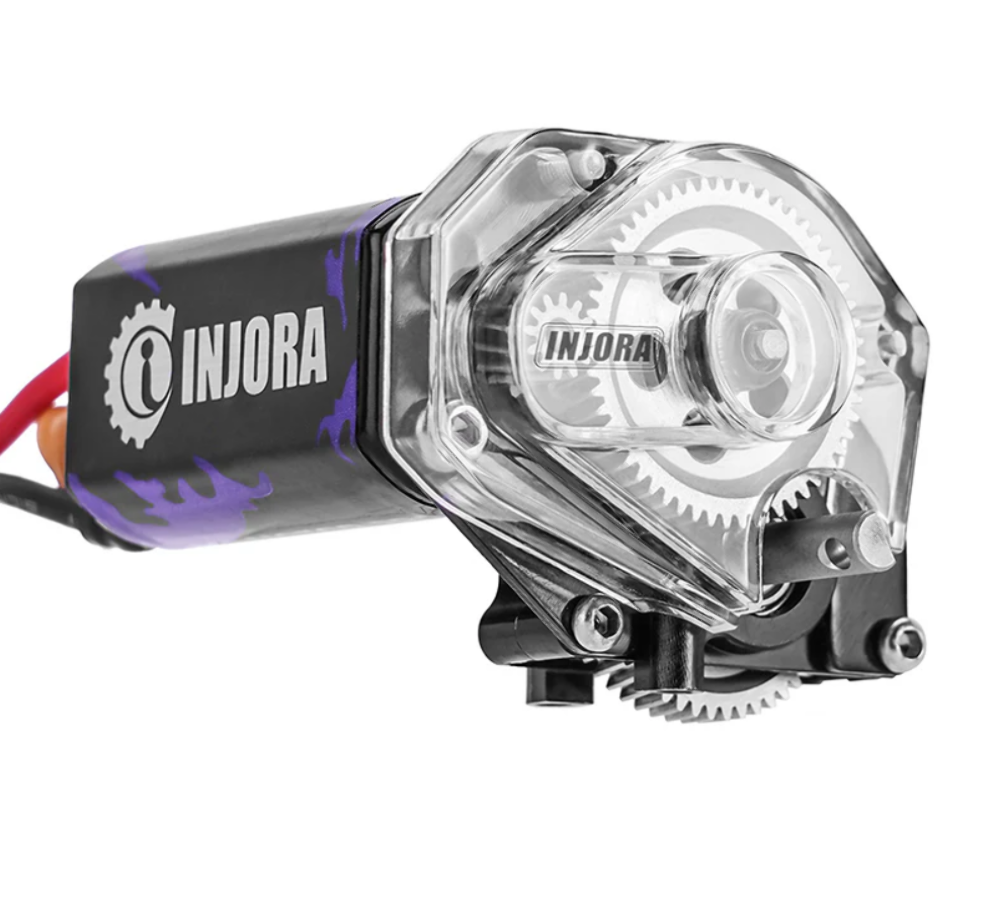

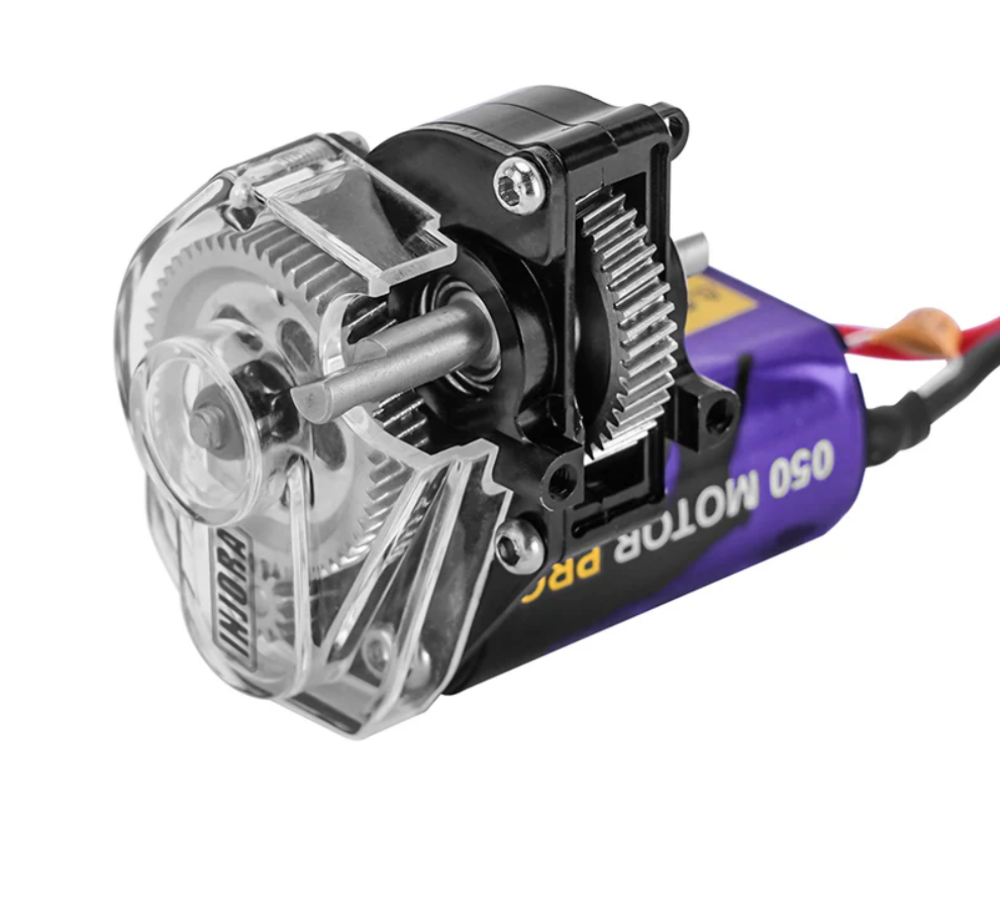

INJORA 050 Pro Motor with Clear Transmission & Helical Gears for 1/24 CX24-173

INJORA Aluminum Acrylic Transmission with 050 Brushed Motor 50T for 1/24 RC Crawler SCX24 Upgrade
Note: All of the gears are helical, not compatible with other motors and transmissions
Compatible with: 1/24 RC Crawler SCX24
Features:

• Aluminum Housing with acrylic cover
• Hardened steel gears for greater durability and longevity
• High torque magnet and rotor motor upgrade for Axial SCX24

Transmission Specifications:

• Housing Material: Aluminum
• Cover Material: Acrylic
• Gear Material: Hardened Steel
• Motor Pinion Material: Nylon
• Transmission Gear Set: 51T & 19T
• Spur Gear: 0.3 Mod, 55T
• Pinion Gear: 11T(Nylon)

050 Pro Motor Specifications:

• Turn: 50T
• Rated Voltage: 7.4V
• Total Length: 28.5mm (1.12in)
• Output Shaft Length: 4.9mm (0.19in)
• Output Shaft OD: 1.5mm (0.06in)
• At No Load: Speed: 25500 rpm
