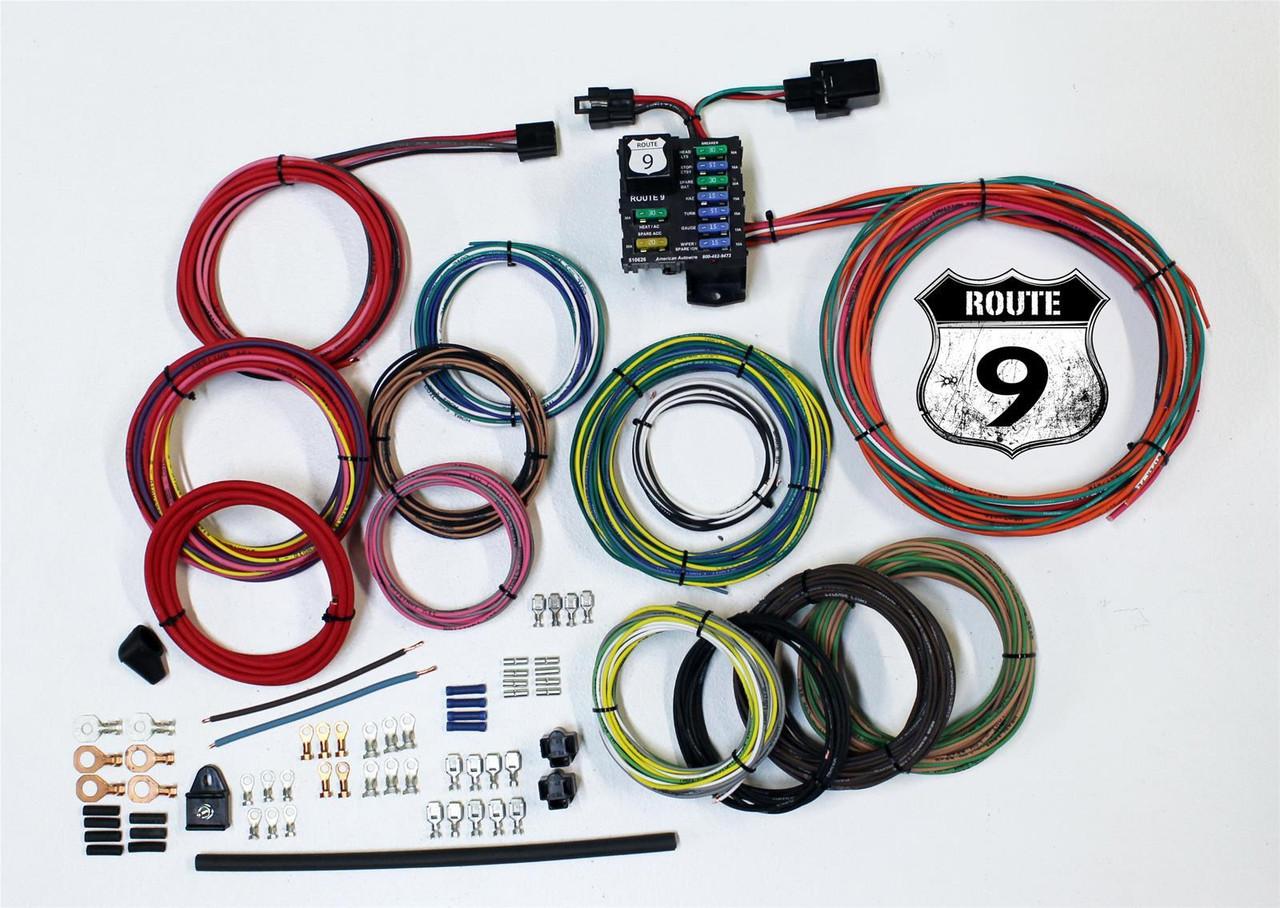

American Autowire Route 9 Universal Wiring Kit

$312.55
Write a Review

Out of stock

SKU:
AAW510625
Condition:
New
Availability:
Usually ships within 24 hours.
Shipping:
Free Shipping
  • Free Ground Shipping

  • 30-Day Returns

  • Safe Payments

  • Top Tier Brands

Introducing the Route 9 Universal Wiring System, the latest addition to American Autowire's expanding line of universal wiring systems tailored for builders seeking fundamental electrical system functionality. Drawing inspiration from our highly regarded Highway 22 and Highway 15 kits, American Autowire presents an entry-level solution that delivers a comprehensive vehicle electrical system in a compact, resilient package. Ideal for hot rods, rat rods, or any vehicle requiring a basic yet fully functional electrical system, this kit comes with complete, full-color instructions to make wiring exceptionally easy. Key features include:

  • A new compact ATO-Style fuse panel featuring Battery, Ignition, and Accessory power busses. High amperage output circuits incorporate superior spring steel reinforced terminals, mirroring the quality found in our Highway Series wiring systems.
  • Labeled fuse panel and wire connections for easy identification of circuits, complete with s and respective fuse ratings. Circuit wiring employs color-coded insulation, printed at 3-inch intervals with circuit s.
  • Combination turn signal/hazard flasher on the panel supports LED lighting for front and rear directional lights, along with dash turn signal indicator lights.
  • Inline horn relay on the harness.
  • Steering column wiring supports any user-specified turn signal switch.
  • Instrument Cluster wiring includes provisions for oil, water, fuel, voltmeter, and tachometer gauges. Wiring for directional and high beam headlight indicators is also incorporated.
  • Engine wiring covers feeds for the coil, oil pressure sender, water temperature sender, tachometer, starter, alternator, and distributor. Heavy gauge feed and fusible link protection supply main power to the fuse panel and power output from the alternator.
  • Extra-long wire lengths facilitate custom wire routing.
  • Front lighting includes extended leads for flexible routing of headlight, parking light, and directional light leads for both stock and custom appearances. Dimmer switch wiring is clearly identified, and headlight connectors and terminals are included.
  • Rear body lighting accommodates turn signal, license light, and brake lights with long-length wires enabling original or custom routing.
  • Sender lead wires provided for electric fuel tank sender units.

Optional add-on kits available for use with the Route 9 kit include:

  • 500341 – GM headlight switch complete with connector and terminals
  • 510805 – Dash-mounted ignition switch complete with connector and terminals
  • 500042 – Floor-mounted dimmer switch
  • 500286 – Floor dimmer switch connector and terminals
  • 500257 – GM column-mounted ignition switch connector set with terminals
  • 500204 – GM HEI distributor ignition power connector and terminal
  • 500205 – GM HEI distributor tachometer connector and terminal
  • 500428 – GM Steering column turn signal switch connectors and terminals (accommodates both 3 7/8 and 4 1/4 inch connectors)
  • 510644 – Electronic speedometer connection kit with connectors and terminals
