MODEL 85086-4: Unlimited Desert Racer Pro Scale® 4WD race truck, Ready-To-Race® with TSM®, with TQi™ 2.4 GHz radio system, Velineon® VXL-6s™ brushless power system, and licensed race replica painted body
What’s In The Box:
- Unlimited Desert Racer with VXL-6s ESC and 2200 Kv motor
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Unlimited Desert Racer accepts a single 4S LiPo battery or dual 2S LiPo batteries or dual 3S LiPo batteries
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter

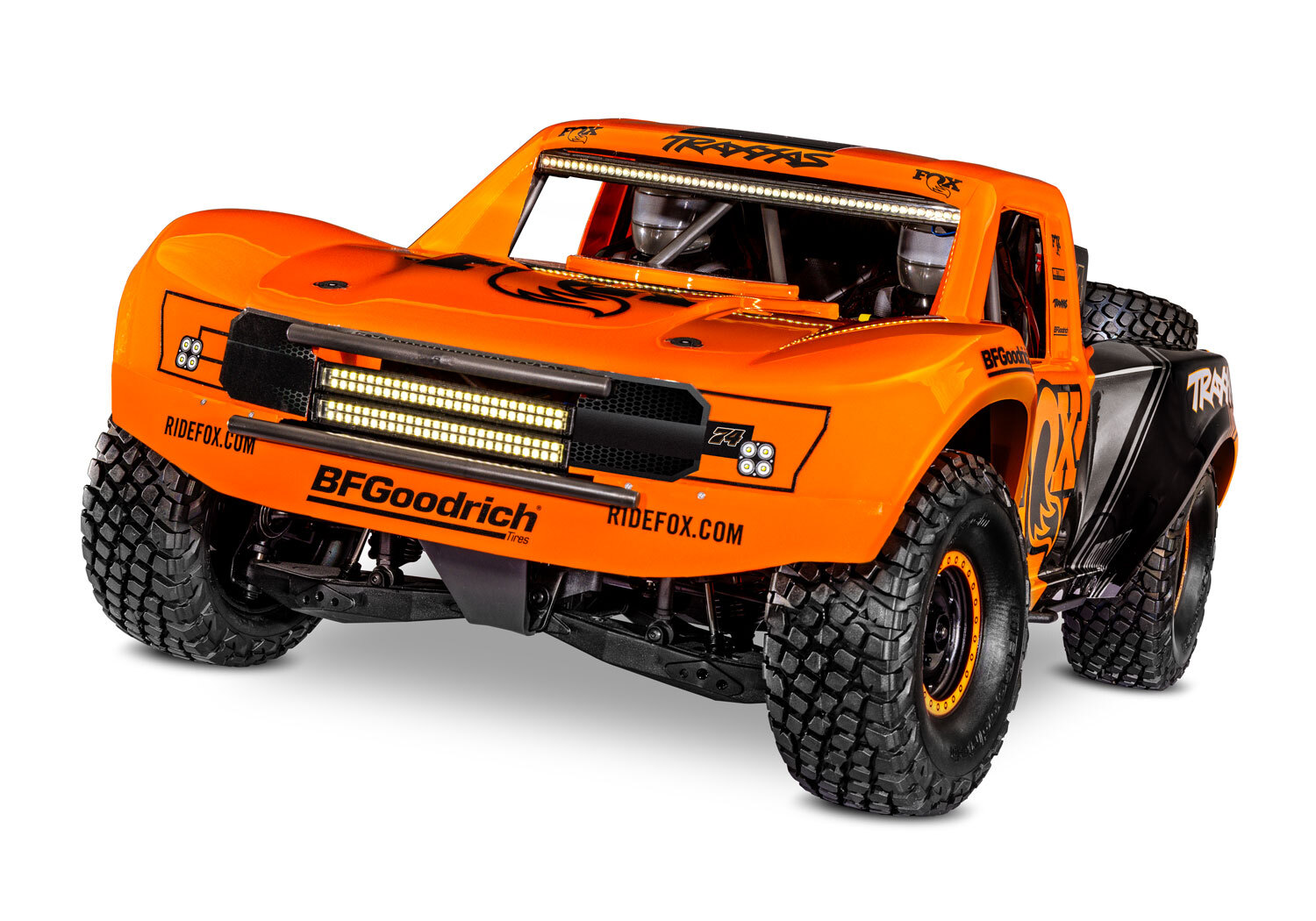

- Large Pro Scale® Body with Highly Detailed Replica Parts
- Heavy-duty truck body mounts to chassis in multiple locations

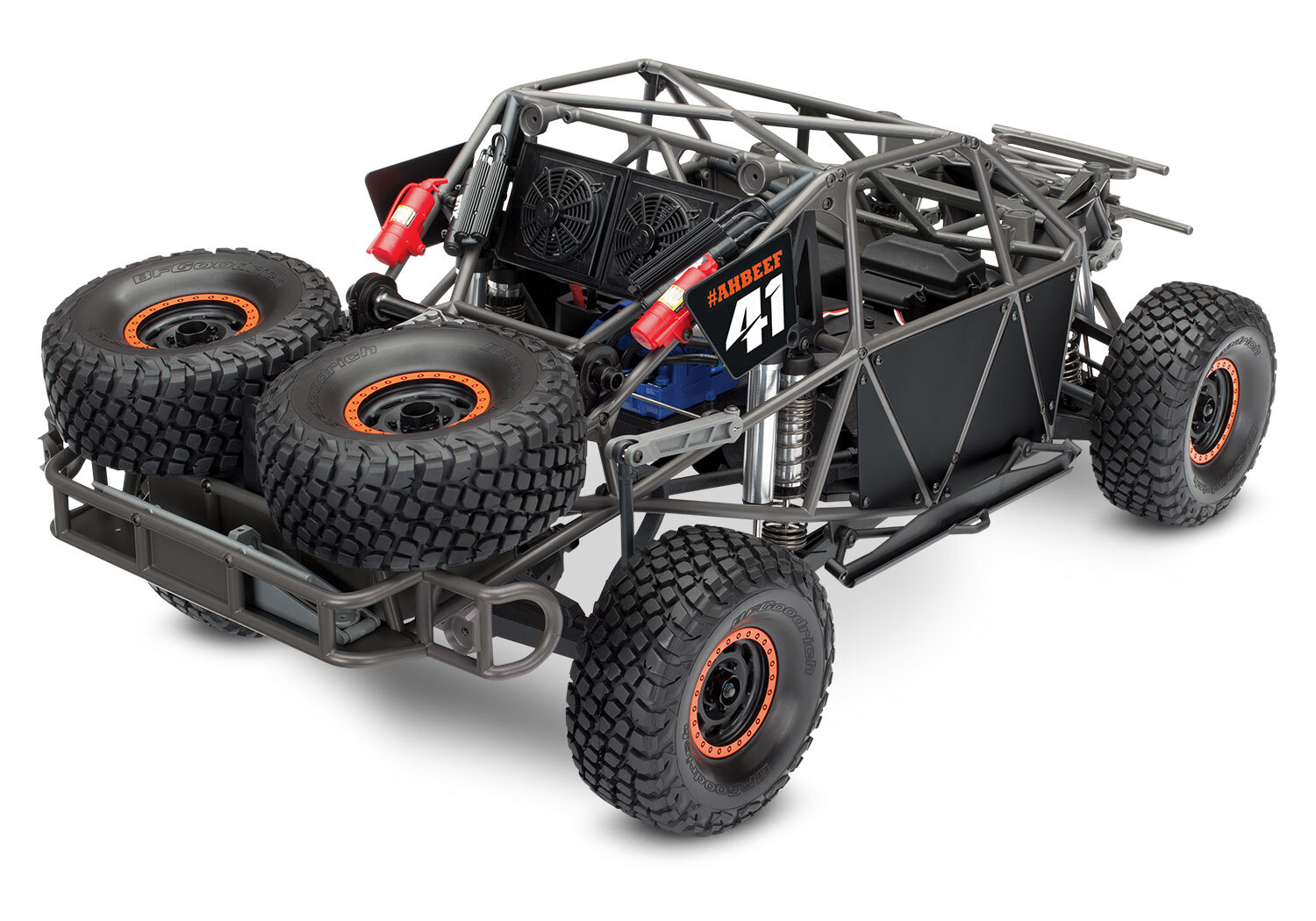

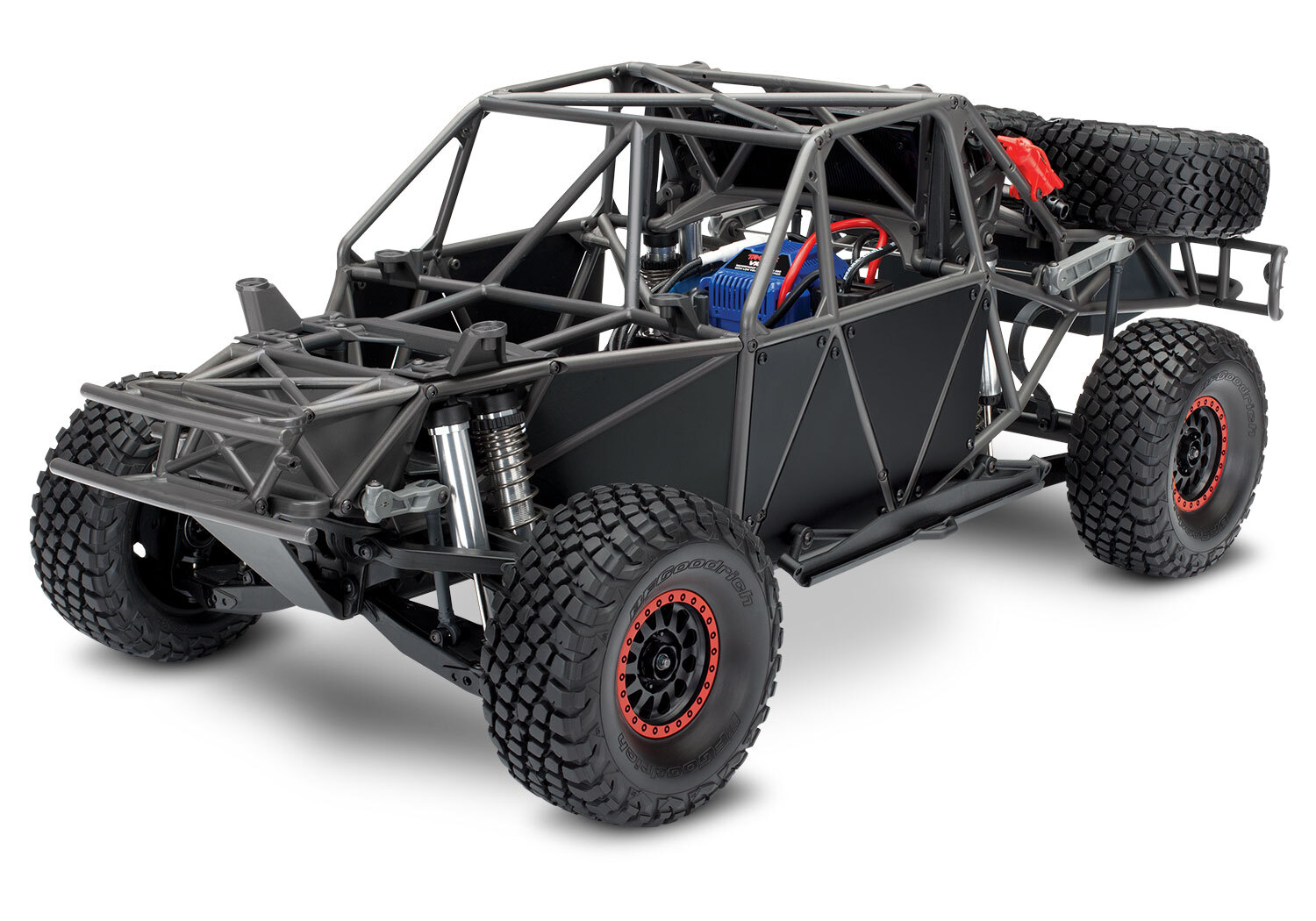

- Strong and functional tube frame mimics full-size off-road racers
- Detailed interior cabin with driver figures
- Replica brake calipers and discs with integrated 17 mm wheel hubs
- Two fully functional spare tires and functional spare driveshaft
- Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
- Realistic side plates mount to tube frame
- VXL-6s™ Waterproof Electronic Speed Control
- 6S LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sink
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Velineon® Brushless Motor
- 4-pole 2200 Kv brushless motor
- 5 mm output shaft
- Finned can for better heat dissipation
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Factory Installed LED light kit
- Dual bumper-mounted light bars (52 LEDs each)
- Curved roof light bar (52 LEDs)
- Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
- High-voltage 8-channel power amplifier
- Regulated output for stable lighting performance
- TQi™ 2.4 GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe and integrated telemetry ports
- Compatible with Traxxas Link Wireless Module (6511, sold separately) to access full Traxxas Link app functionality
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug

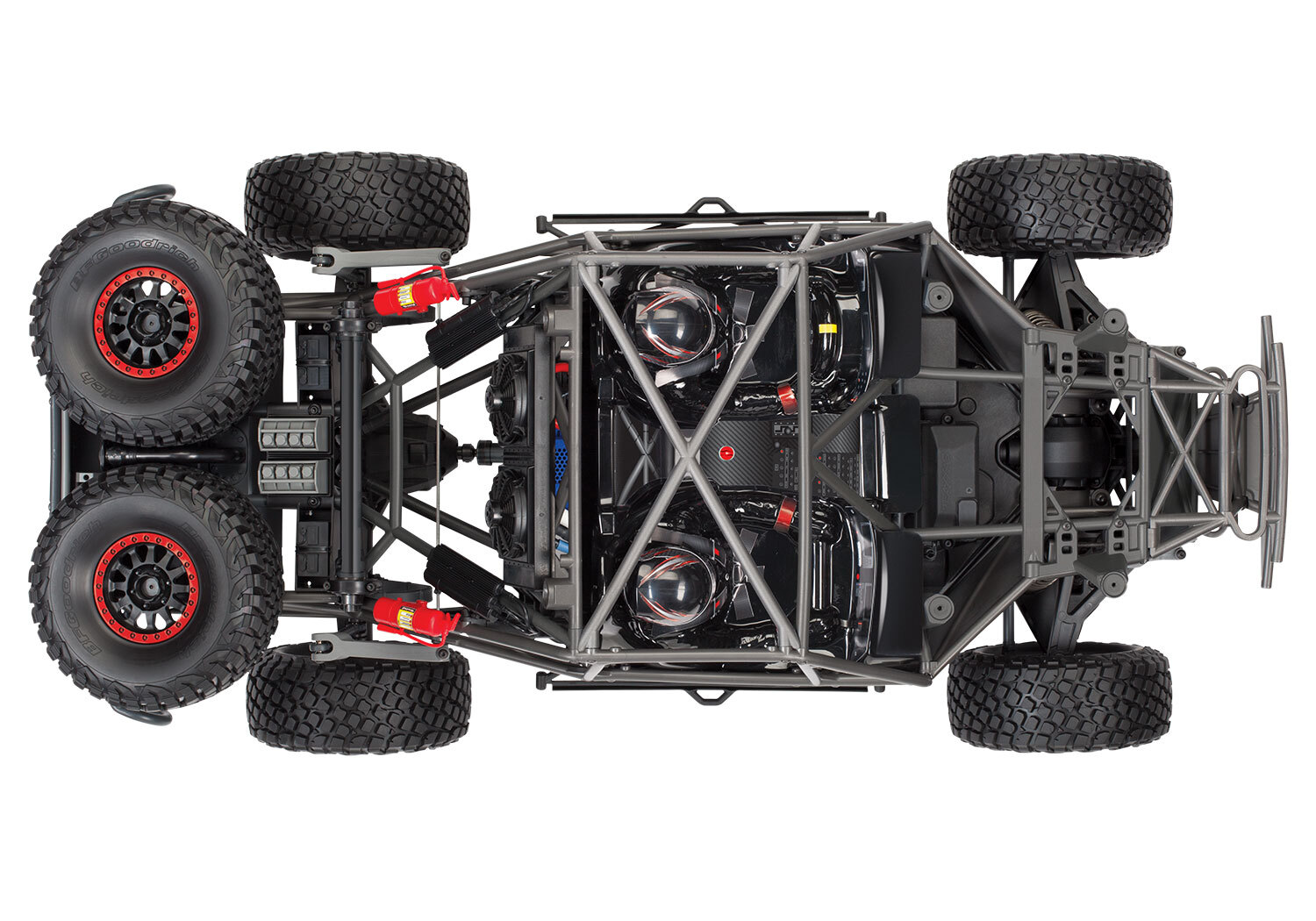

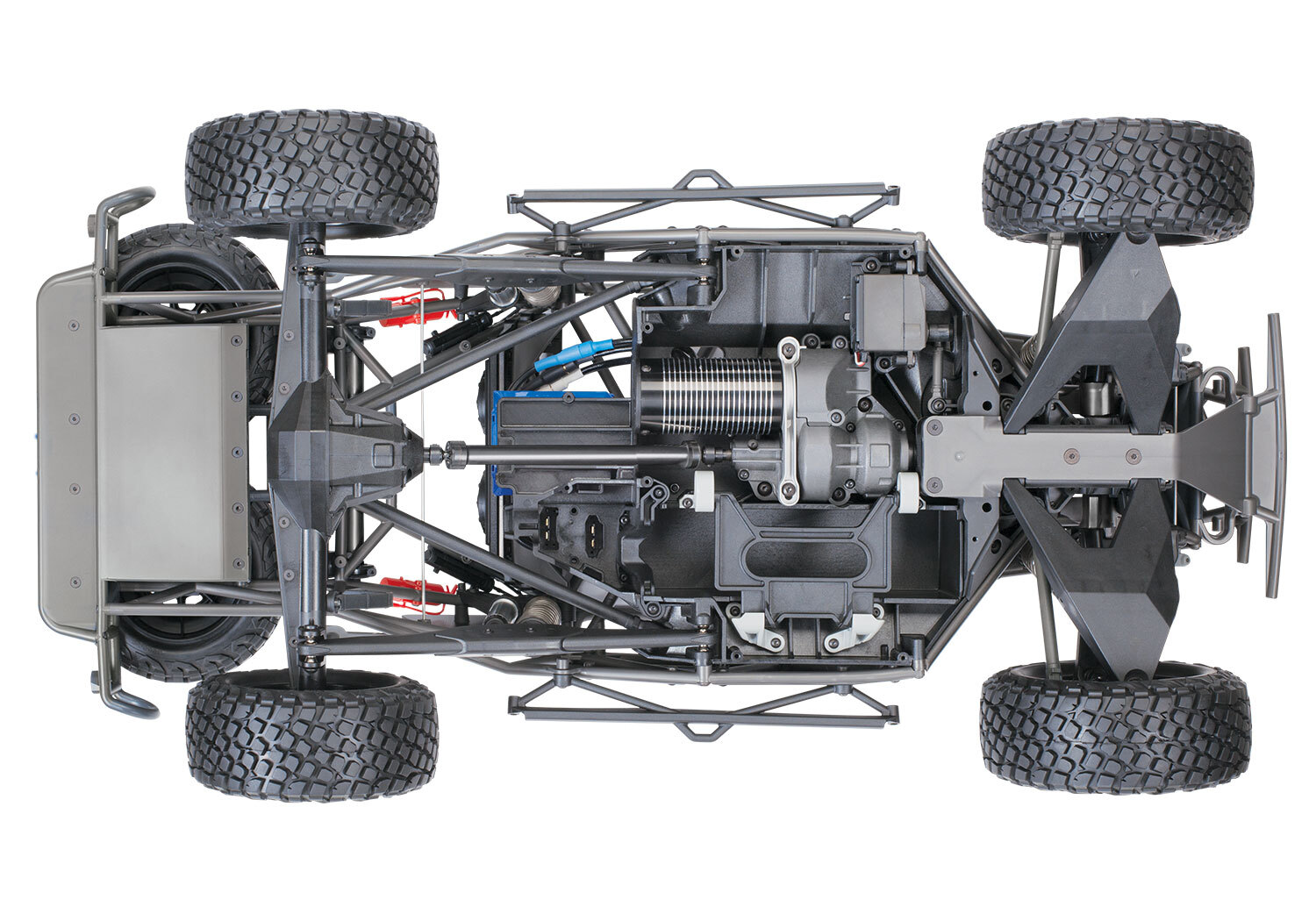

- Chassis
- Composite inverted tub design
- Makes maintenance easier
- Lowers center of gravity (CG) for improved handling
- Allows easy access to components
- Tough skid plates protect critical components

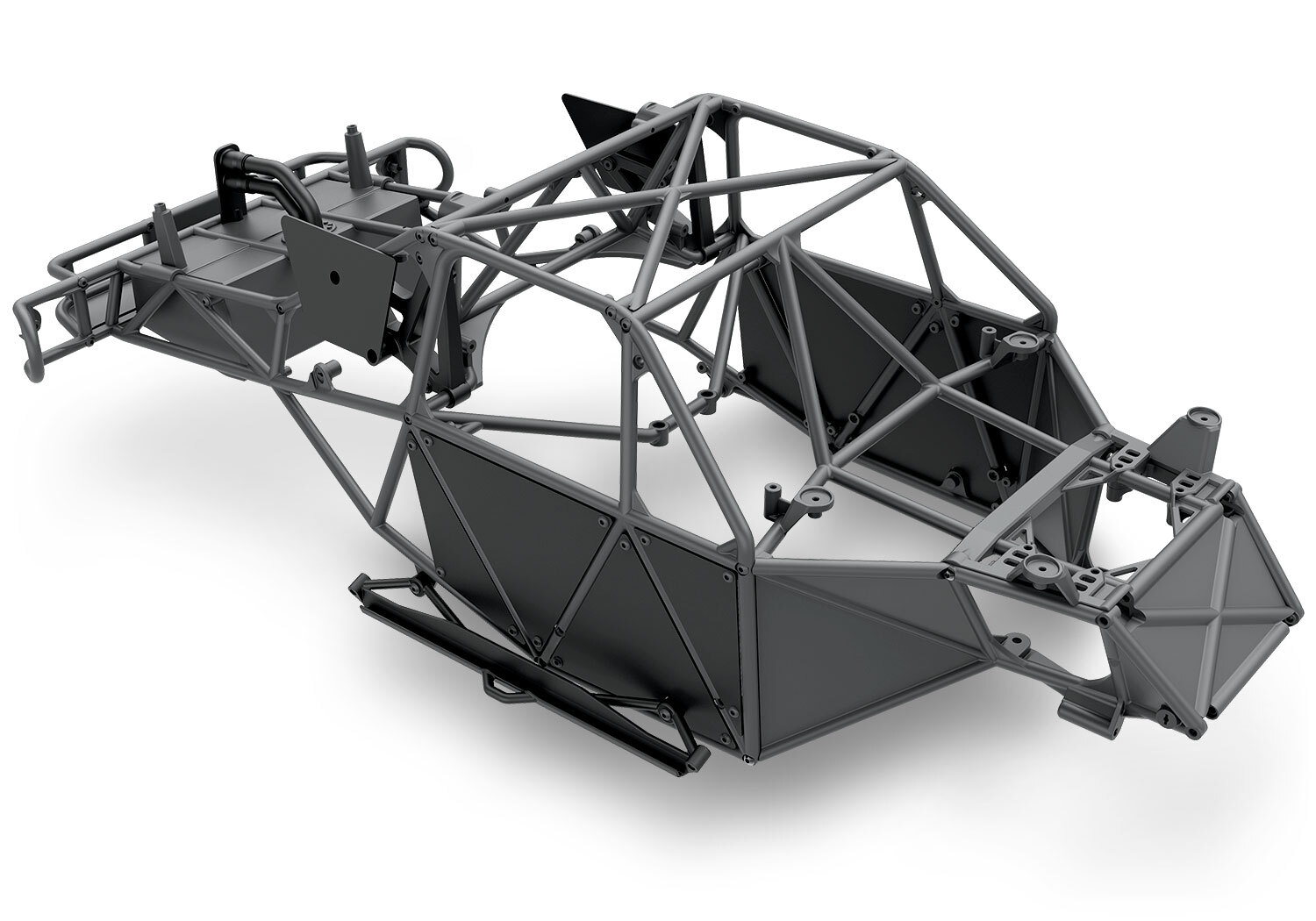

- Fully integrated tube frame for scale appearance and added rigidity
- Reinforced bumpers to absorb impacts
- ESC battery plugs hard mounted to chassis
- Innovative Battery Compartment
- Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
- Opens from underneath without removing body
- Fixed oversize battery strap locks batteries securely into place
- Separate skid plate to protect batteries
- Transmission
- All-steel gear direct drive transmission
- Torque-Biasing Center Drive™
- Removes as a single piece for easy maintenance
- Fixed-pin gear mesh system
- Drivetrain
- Steel CV driveshafts (front) with 6 mm stub axles
- Steel straight axle (rear)
- Oil-filled limited slip front differential
- Locked steel spool (rear)
- Heavy-duty splined front driveshaft
- Fixed-length steel rear driveshaft
- Steering
- Chassis mounted 2270 metal-gear servo
- Dual-bellcrank design with bearings and integrated servo saver
- Solid non-adjustable steering links for rugged durability
- Suspension
- Provides scale looks and authentic off-road driving dynamics
- Tough independent double-wishbone front suspension with captured rod ends
- Triangulated 4-link rear suspension with solid rear axle
- Tough composite trailing arms
- Steel upper links with 3 optional positions for suspension tuning
- Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
- Realistic and functional front and rear sway bars
- Detailed functional limit straps on rear axle
- Wheels and Tires
- Replica BFGoodrich® KR3 off-road tires
- Beadlock-style 17 mm dual-diameter wheels
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
Pro Scale Performance
Traxxas Pro Scale® captures true-scale realism and combines it with extreme 6S LiPo power and 50+ mph performance. The Traxxas Unlimited Desert Racer faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.
Driving Realism
Unlimited Desert Racer is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas accurately reproduced a full-scale race chassis in both form and function.
Extreme 6S Power
The 50+ mph UDR delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive.
