King Of The Dunes

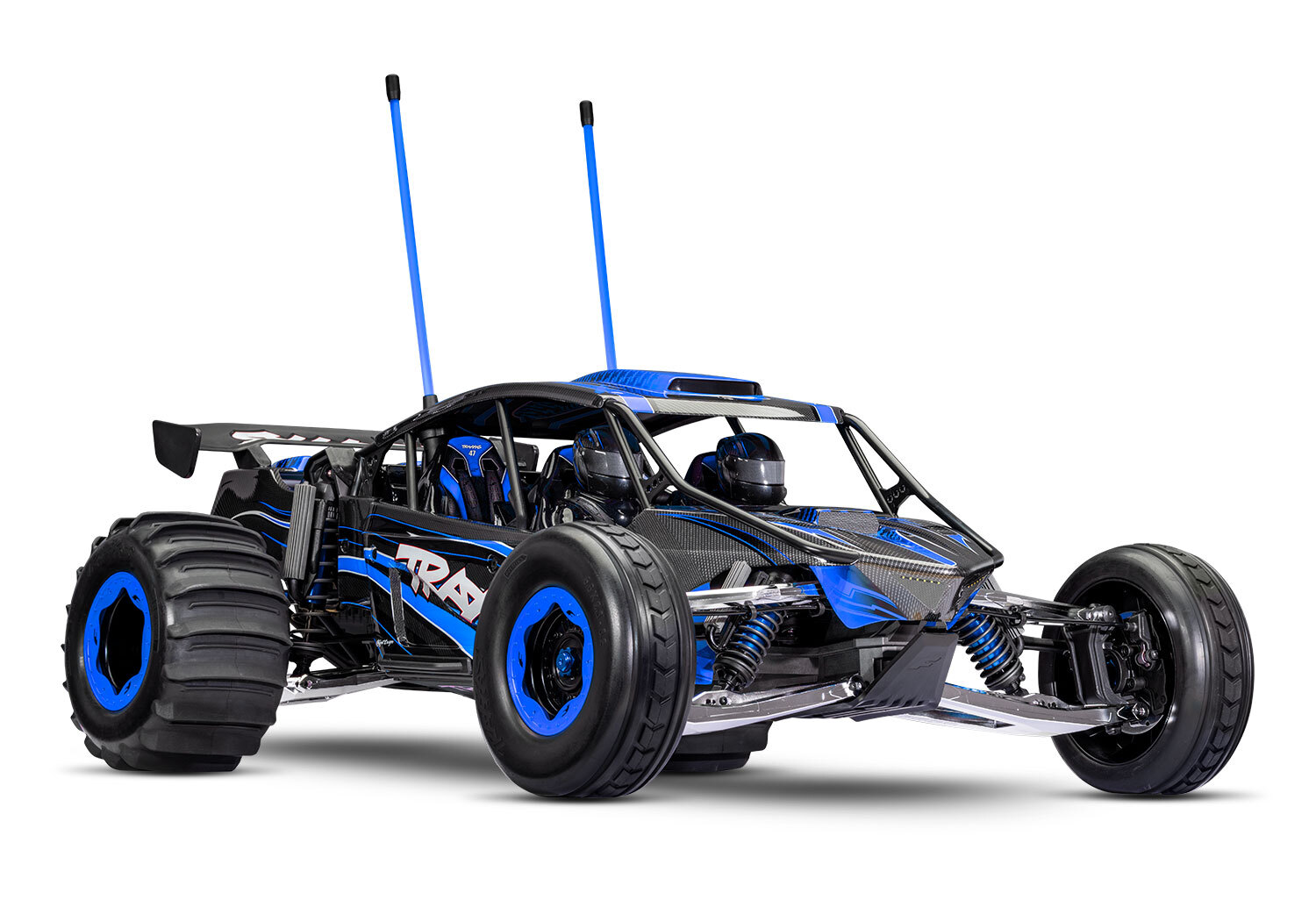

Driving a Funco sand car is an adrenaline-fueled thrill ride like nothing else on Earth. Outfitted with 1000+ horsepower engines and trick long-travel suspension systems, a Funco sand car can top 150 mph and wheelie with just a blip of the throttle. The Traxxas Funco Pro Scale® Replica is a 55+ mph monster, purpose-built to deliver the same raw excitement and thrill of driving the full-size Funco Motorsports car in dramatic X-Series™ scale.
- Funco Pro Scale Replica Clipless Body
- Full-length tube frame support
- Detailed interior with driver figures
- Replica engine with licensed accessories
- 10″ color-matched whip lights
- Spring loaded-Flex Tech mounts for rollover protection
- High-performance rear wing
- Wheelie bar
- VXL-8s™ Waterproof Electronic Speed Control
- Aggressive tuning for more power at any rpm
- Integrated cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sink
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 Kv
- 5 mm output shaft
- Oversize aluminum heatsink for improved cooling
- Dual cooling fans
- 55+ mph with Two 4S LiPo Batteries and Included Speed Gearing
- Traxxas Stability Management
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz 2-Channel High Output Radio System
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Patented waterproof receiver box with easy-access plug
- Ultra-Heavy-Duty 8S Driveline
- Steel CV driveshafts & axles
- New larger X-Series™ differential output yokes
- Fully machined aluminum stub axles
- Direct-Drive Transmission
- 1.5 mod wide-face steel gears
- 1.0 mod steel pinion and spur gears
- Fixed gear mesh system
- Rear Differential
- Huge 1.5 module straight-cut ring gear
- Sealed 4-gear design
- Splined outdrives attached with external thru-bolt method
- Reinforced bulkhead and covers for increased bearing support
- Rock-Solid Motor Mounting System
- Precise preset gear mesh adjustments
- 4 keyed pins lock the motor in place
- Motor retention separate from gear mesh
- GT Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Height-adjustable spring retainer
- Heavy-duty composite shock caps with pivot balls
- Lower spring perches bolted on
- Suspension
- Polished alumunum-finish suspension arms
- Made from cold-weather HD composite
- Performance-optimized geometry
- Double-shear connections
- High-strength steel suspension pins with retainers
- 4 mm machined pivot balls
- Fixed high-strength camber and toe links
- Heavy-duty steering blocks and axle carriers
- Oversized wheel bearings
- Braking
- Electronic rear brakes
- Powerful front disc brakes with spring-loaded calipers
- Operated by 2075 digital servo
- Sheathed brake cables
- Stainless steel slotted and drilled brake rotors

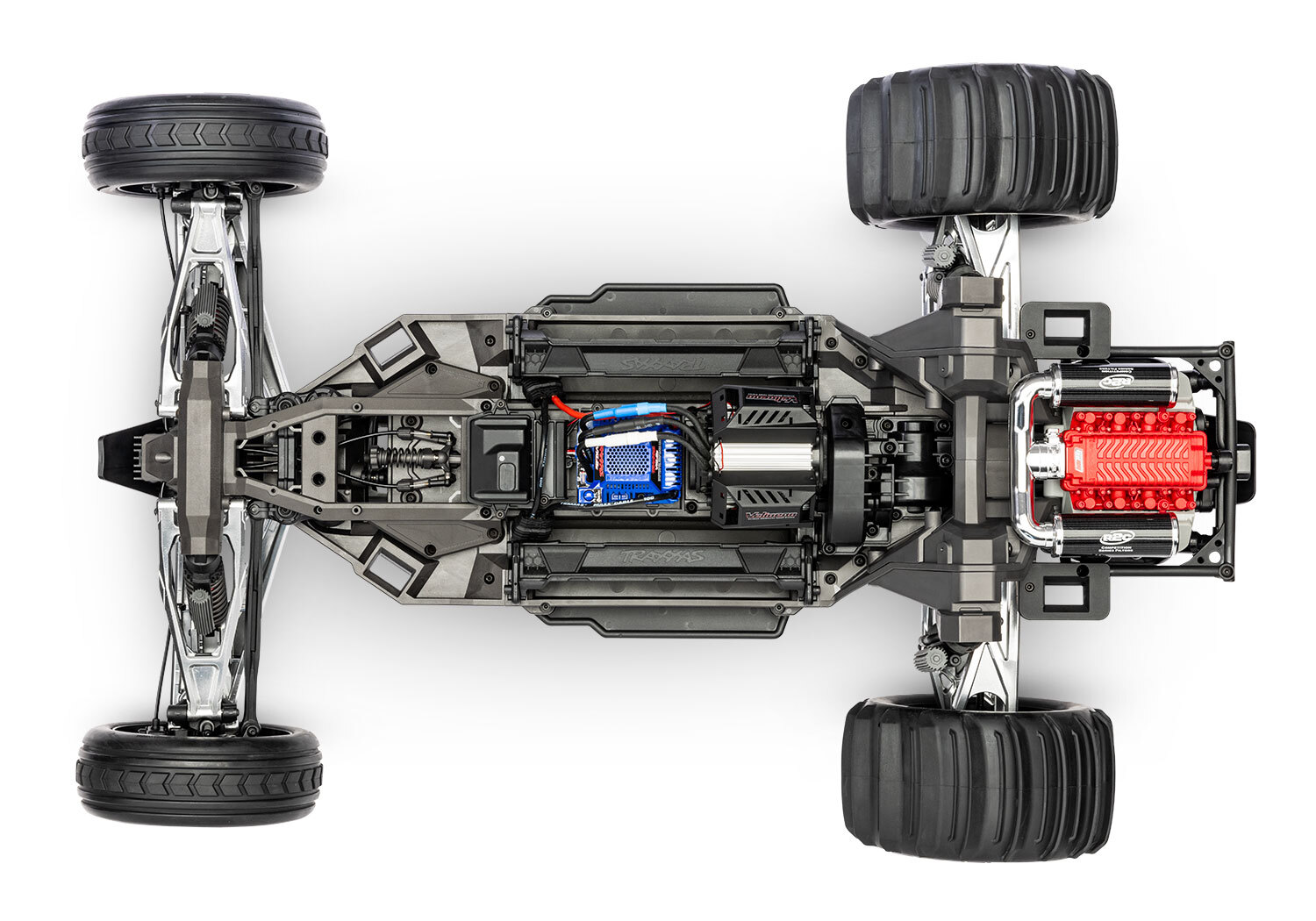

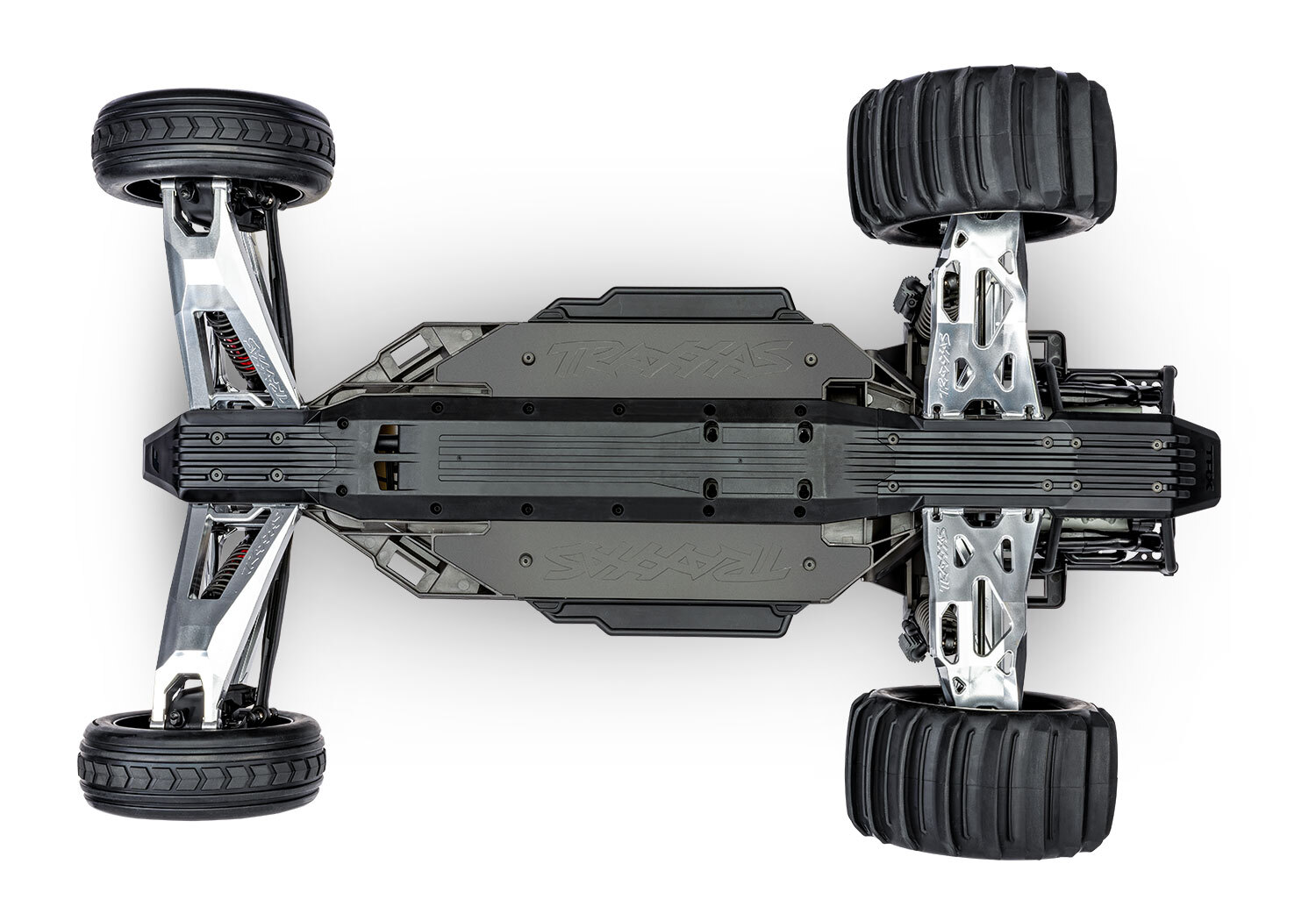

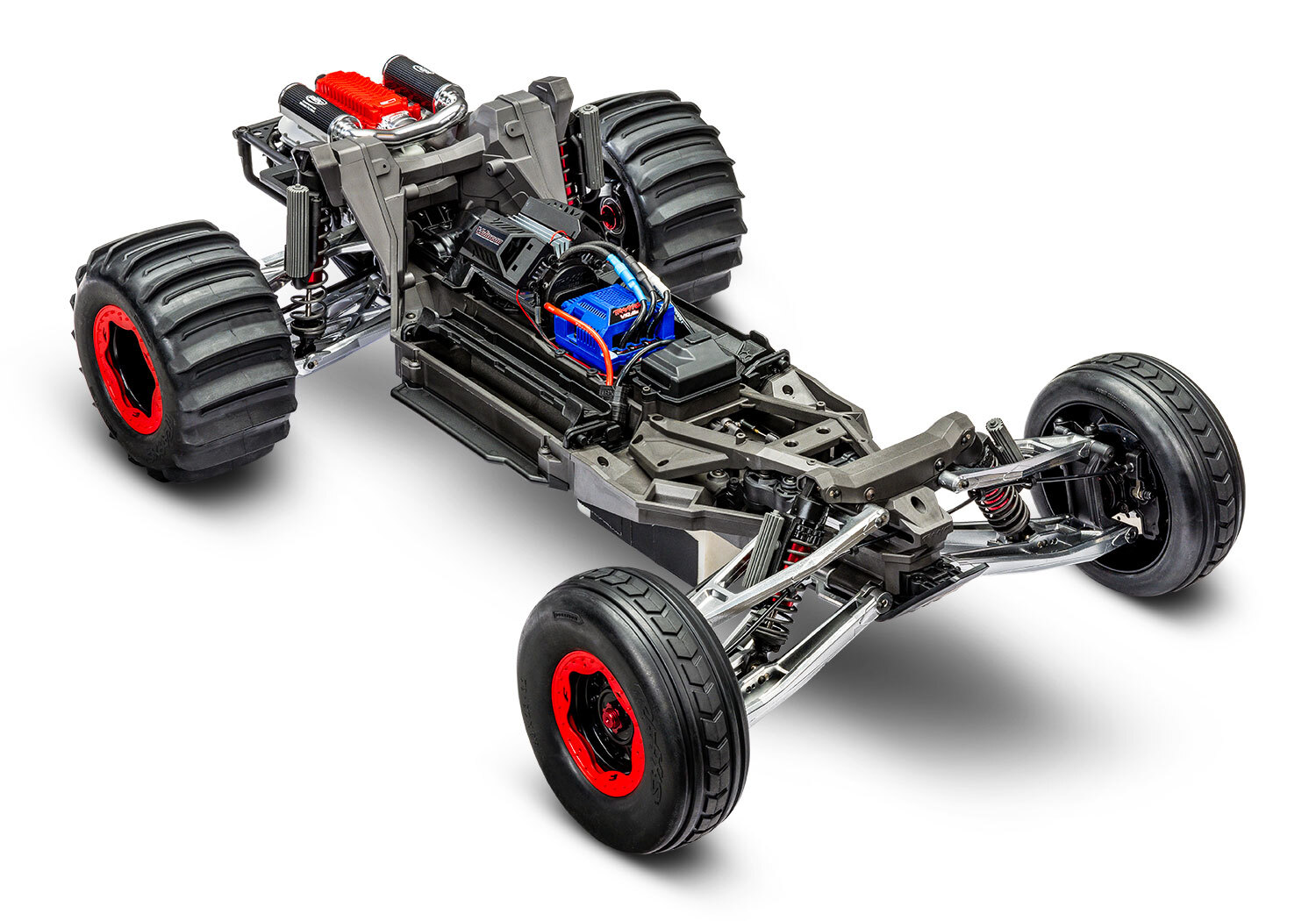

- Low-CG Chassis Design
- Modular chassis with interlocking bulkheads
- Low center of gravity for improved handling
- Flat bottom design
- Interlocking skid plates
- High-strength buttressing on shock towers
- Dual snap-lock battery compartments
- Protects batteries from side impacts
- Allows secondary battery-clip security
- Interlocking components for tight tolerances
- Wire management for clean appearance
- Wheels and Tires
- 7.5" Rear paddle tires
- Aggressive paddle design
- Belted carcass resists ballooning
- 6.8" front arrow-pattern tires
- Excellent traction on sand, dirt, and pavement
- Replica Funco beadlock wheel design
- Color-matched beadlock rings and axle nuts
- High-strength glue and bead design
- Huge 24 mm splined wheel hubs
- Steering
- Powerful 450 oz-in steering servo (2085XL)
- Heavy-duty cam-style servo saver
- Dirt evacuation channels
- Fully waterproof
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating

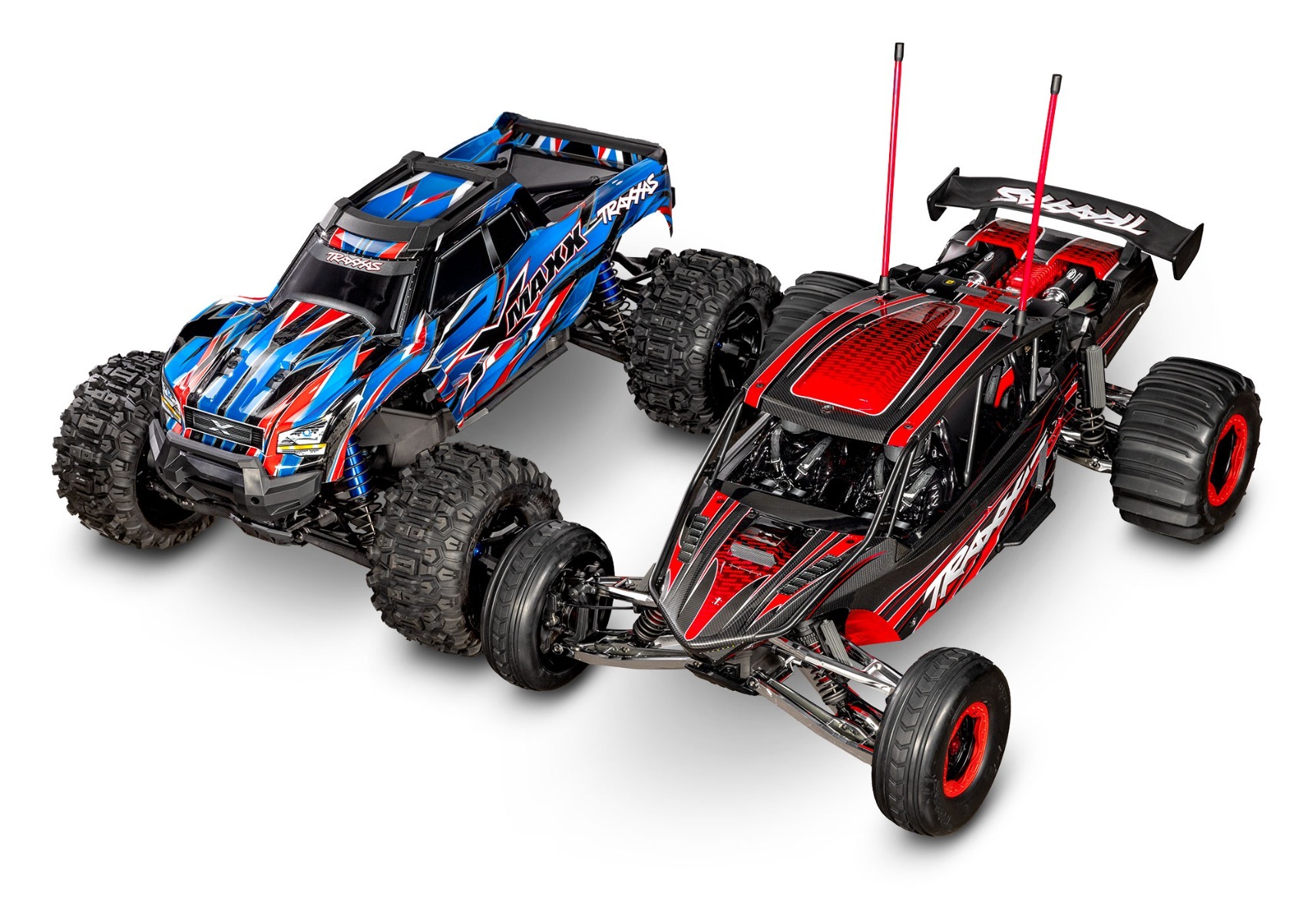

Both longer and wider than the legendary X-Maxx®, the Funco Pro Scale Replica is the largest member of the X-Series family. This immense size gives the Funco Replica incredible scale detail, authentic driving dynamics, and an imposing presence. The Funco Replica’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.
Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Funco Pro Scale Replica features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.
Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.
The Funco Replica’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.
A rugged tube frame supports the entire Funco Replica body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.
The Funco Pro Scale Replica features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Funco Replica instantly wheelies until you back off…or run out of desert.
With 30+ volts of brushless power going only to the rear wheels, the Funco Pro Scale Replica needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

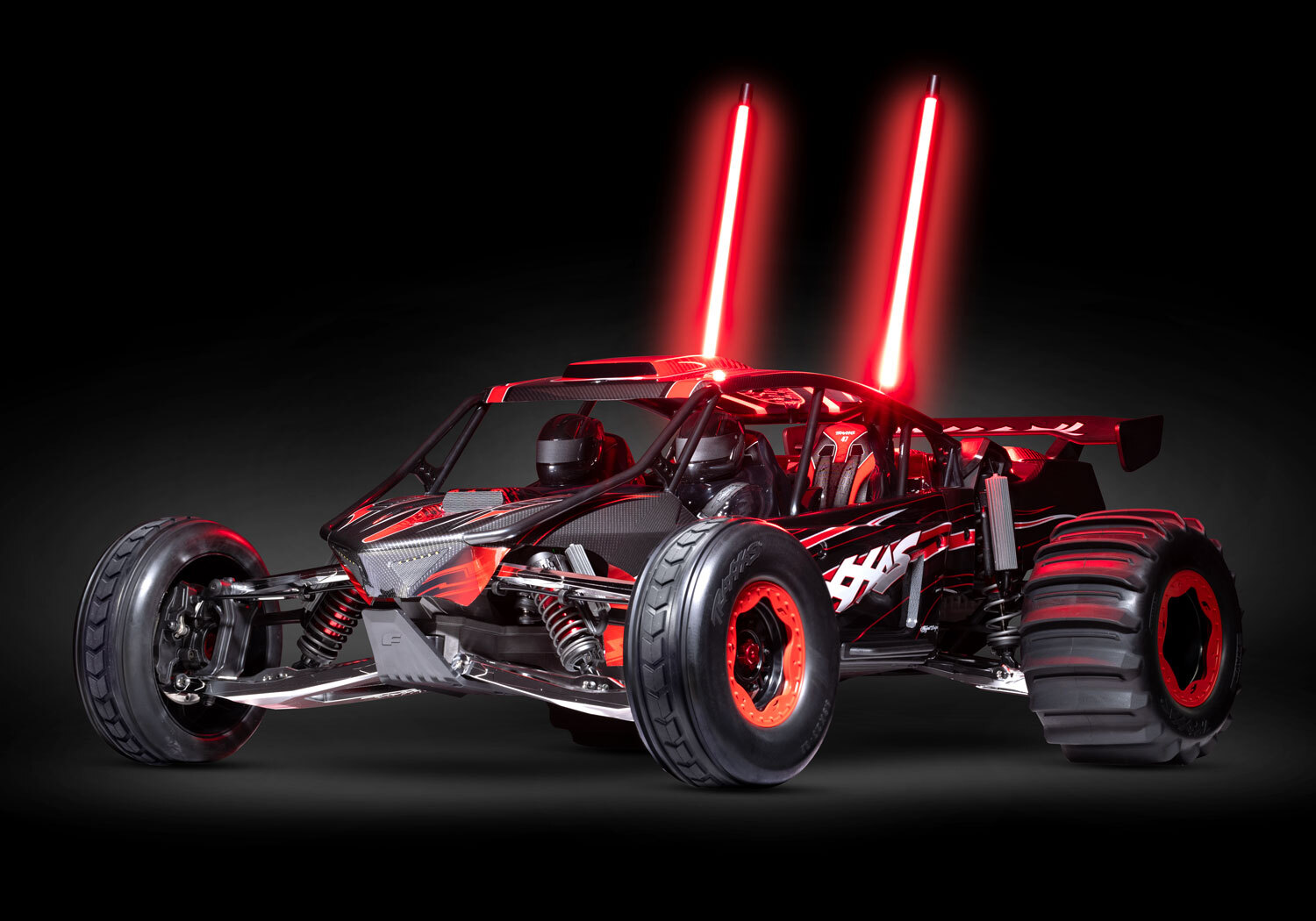

Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.
MODEL 109076-4: Funco® Pro Scale® Replica: fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-8s brushless power system, and Replica Funco clipless body.
What’s In The Box:
- Funco Pro Scale Replica with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- TQi 2.4 GHz radio system
- High visibility whip lights
- Wheelie bar
- Speed gearing
- High quality maintenance tools
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4S Completer Pack (Part 2997).
- LiPo Balance Charger with iD®
Traxxas EZ-Peak® Live Dual 4S-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
1 Year
