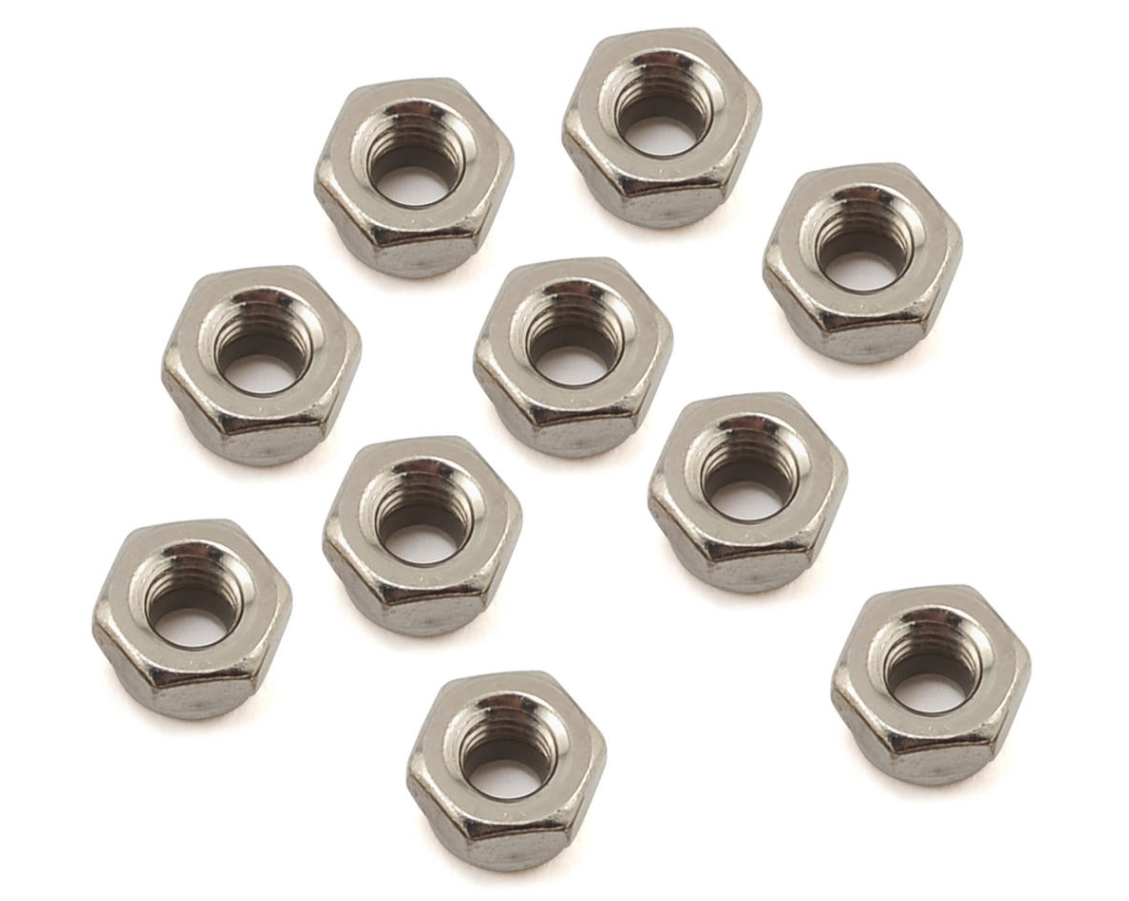

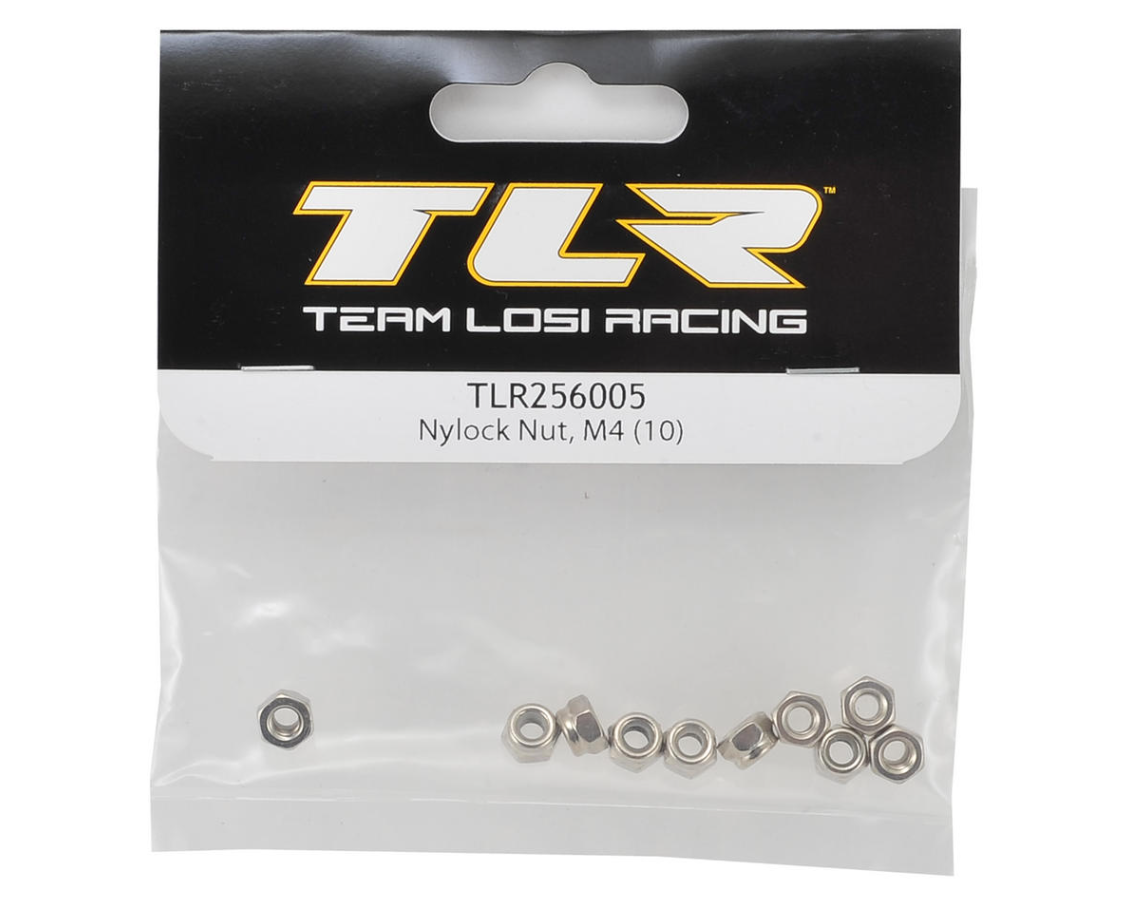

Secure your critical components where space is tight with this 10-pack of Standard M4 Nylock Nuts. Unlike the "Flanged" nuts (TLR245017) which have a wide base, these are standard profile hex nuts.
These are essential for applications where a flanged nut simply won't fit. For example, inside a deeply recessed hole in a plastic suspension arm, or on the end of a shock shaft where a wide flange would cover the piston oil holes. These steel nuts provide the same secure locking power as their flanged cousins but in a compact footprint.
Key Features
-
Non-Flanged Design: The 7mm hex profile goes all the way to the base. This allows the nut to fit into tight recesses or counter-sunk holes that a wide flanged nut could not enter.
-
Nyloc Security: Features a tough nylon insert that bites into the threads, preventing the nut from vibrating loose on shock shafts or suspension pivots.
-
Steel Durability: Made from high-strength steel (typically zinc-plated) to withstand high torque without stripping.
-
Universal Standard: Meets the ISO standard for M4 fasteners, making them compatible with thousands of RC and non-RC applications.
Specifications
-
Thread Size: M4 (4mm Metric)
-
Hex Size: 7mm
-
Type: Standard Nylock (No Flange)
-
Material: Steel
-
Quantity: 10 Pieces
Compatibility
These are Universal M4 nuts, but specific common uses in TLR vehicles include:
-
Shock Pistons (1/8 & 1/5 Scale): Securing the plastic piston to the metal shock shaft. (A flanged nut here would block the oil flow; this standard nut does not).
-
Suspension Mounts: Holding hinge pins or suspension balls where the nut must sit inside a recessed plastic pocket.
-
Wing Buttons: Securing the wing to the mounts where a washer is used separately.
