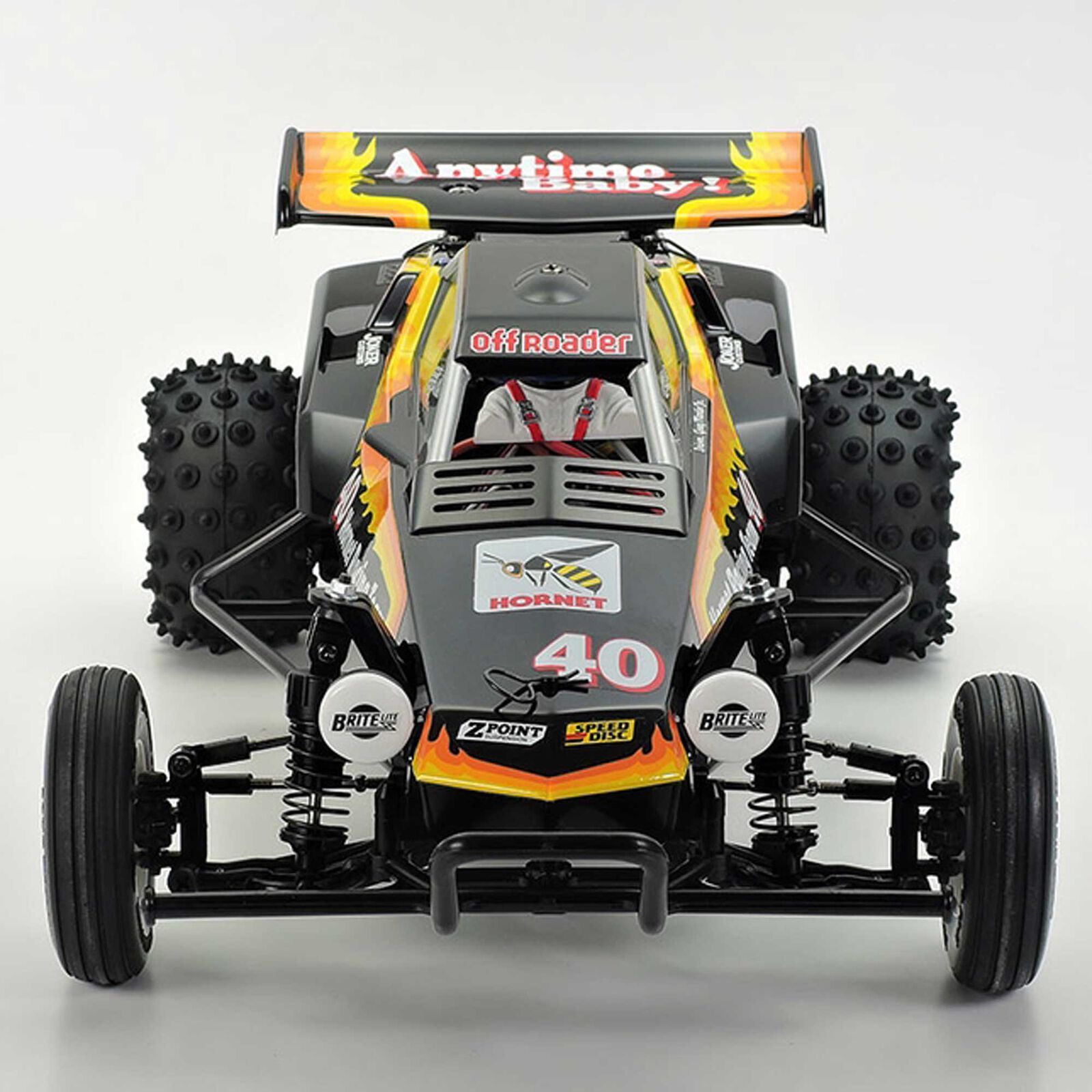

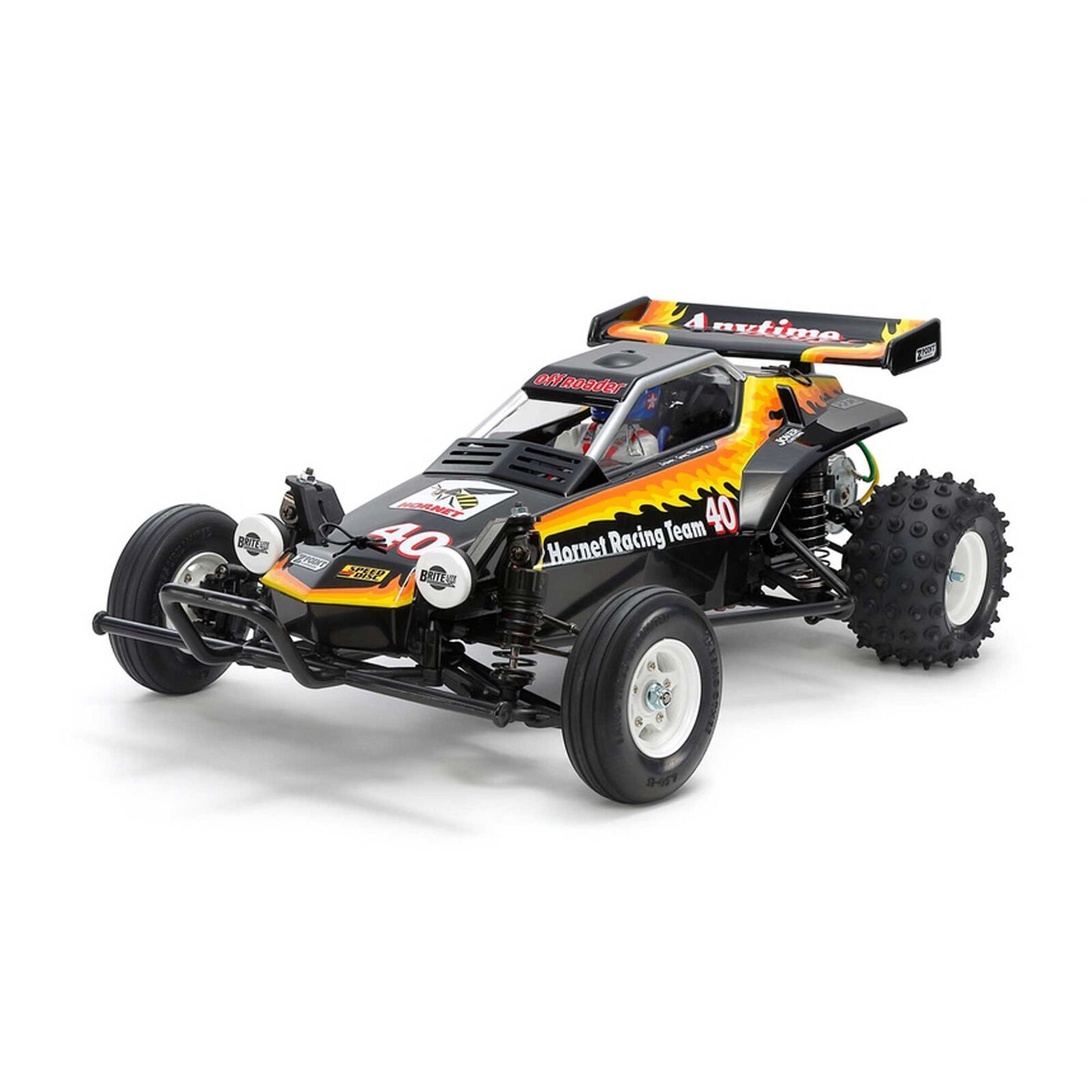

The year 2024 marks the 40th anniversary of the original release of the iconic Hornet off-road buggy! To celebrate the milestone, Tamiya’s designers have cooked up a fun variant that is sure to please new hobbyists and veteran hobbyists alike!
Smooth 4-Wheel Doubel Wishbone Suspension

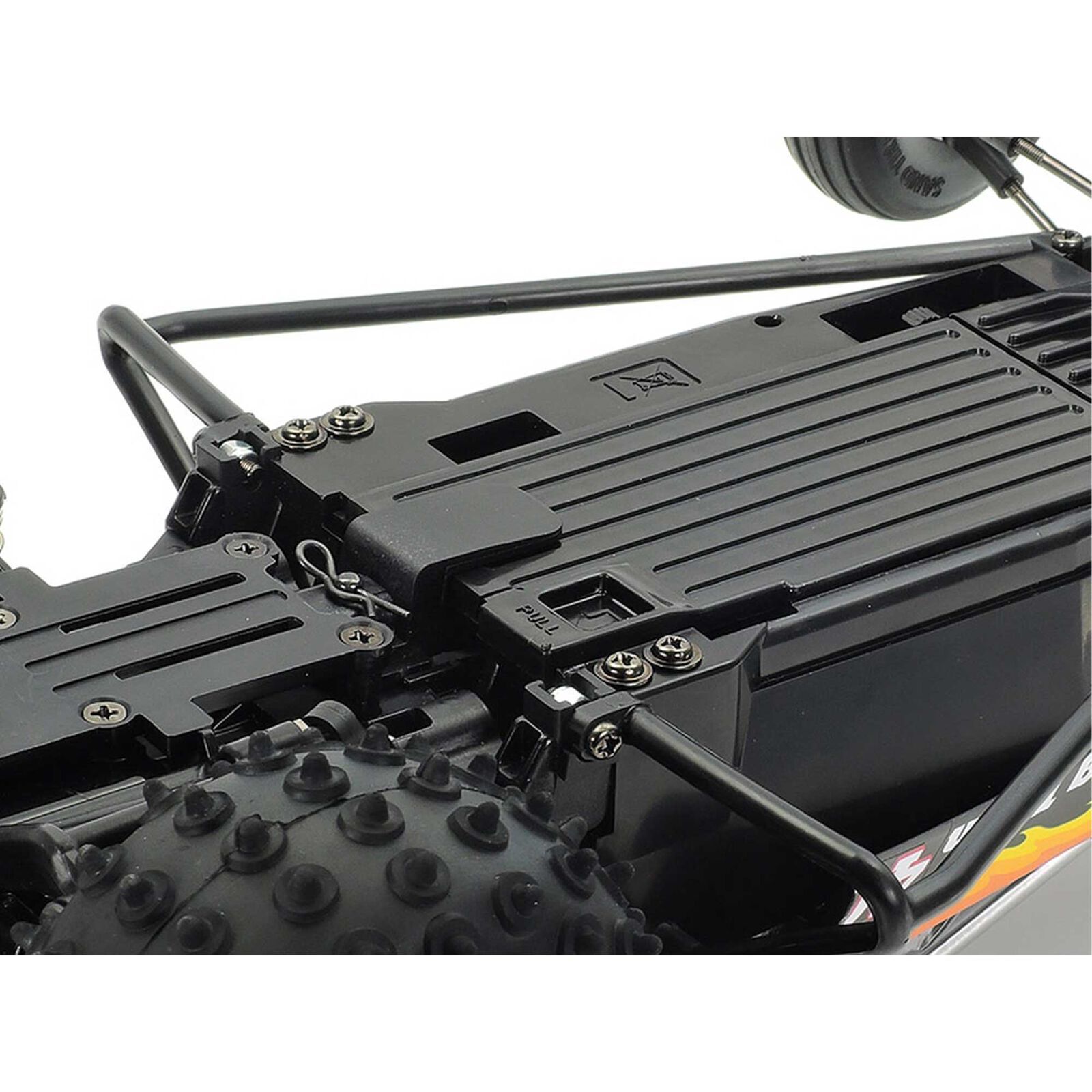

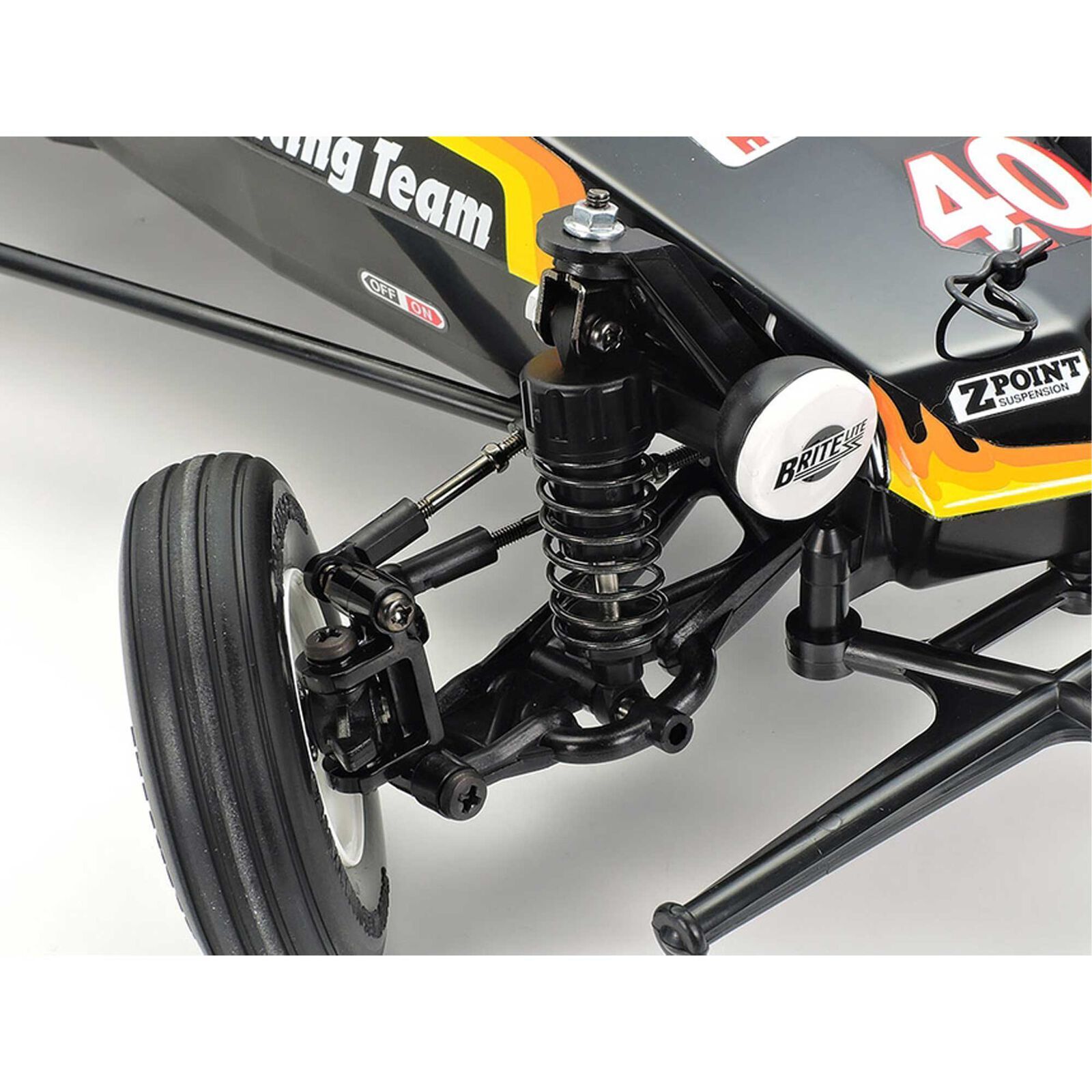

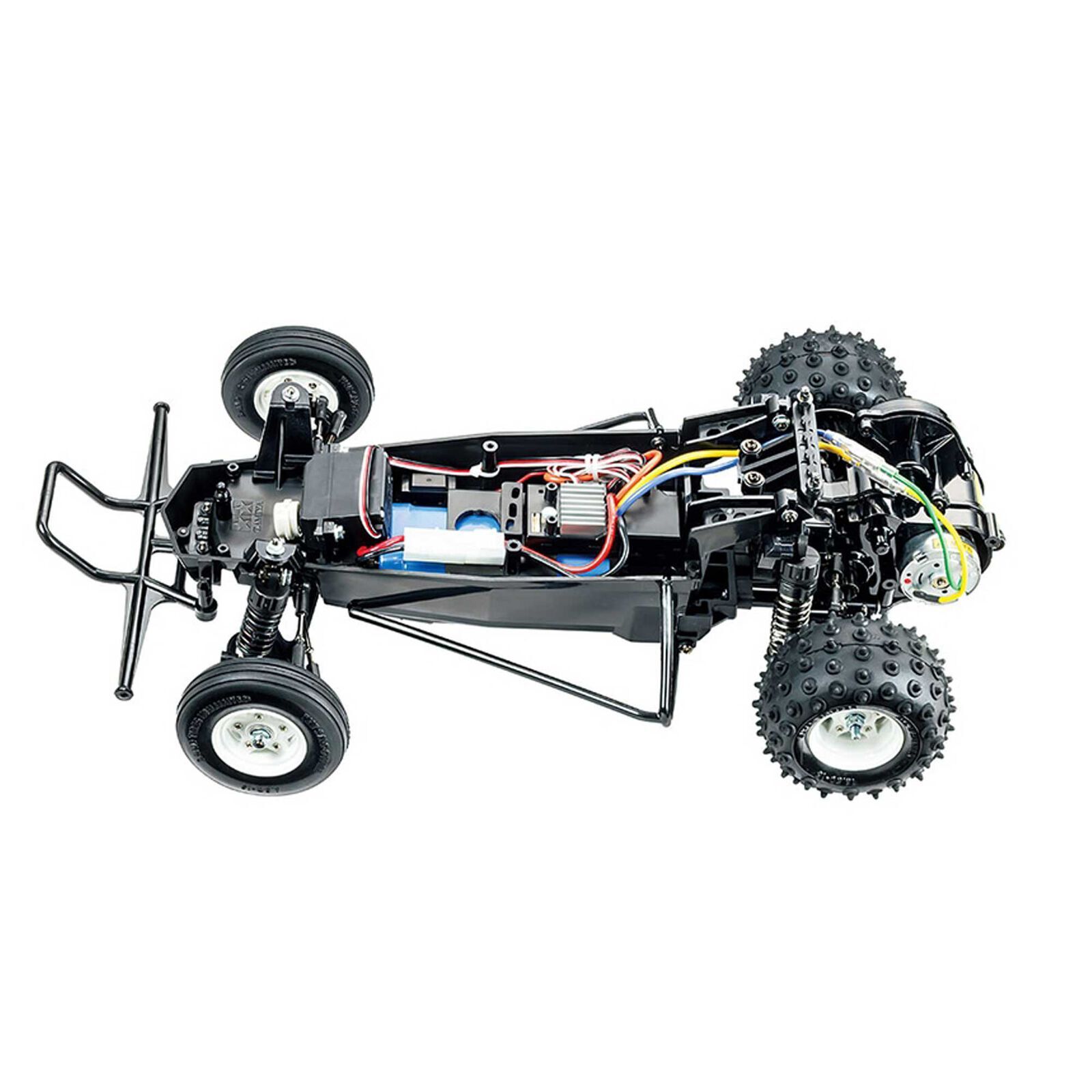

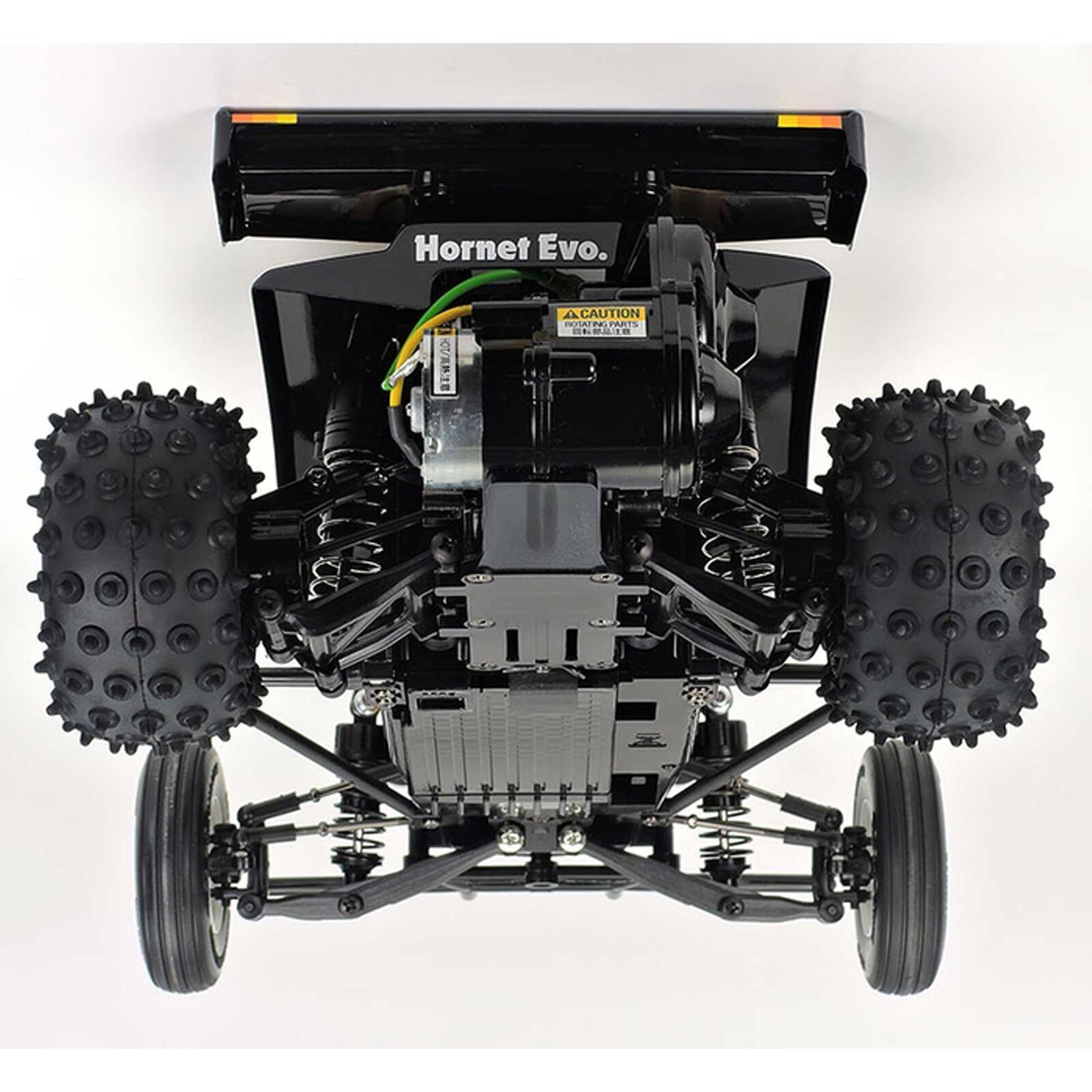

Hornet EVO. uses a lightweight, superbly balanced chassis based around a slim ABS plastic bathtub with the R/C equipment atop the inline battery pack in the lower center; its 4-wheel independent double wishbone suspension uses upper I arms and lower H arms front and rear, with CVA oil dampers making for smooth motion. Turnbuckle upper arms ensure that you can adjust the camber to meet your needs. The motor is mounted in the rear along with a sealed gearbox, and dog bone design drive shafts give an extra layer of reliability, with full ball bearings ensuring efficient drive.
Specifications
★Length: 430mm, width: 230mm, height: 135mm ★Wheelbase: 251mm ★Weight (not including R/C equipment and battery pack): 1,075g ★Rear-wheel drive ★4-wheel double wishbone suspension with CVA oil dampers ★Tire width/diameter: 21/73mm (front), 49/86mm (rear) ★Type 540 motor ★Gear ratio = 9.28:1 (with kit 17T pinion) ★Full ball bearings ★ESC included for export.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
1/10 Hornet EVO 2WD Buggy Kit Overview

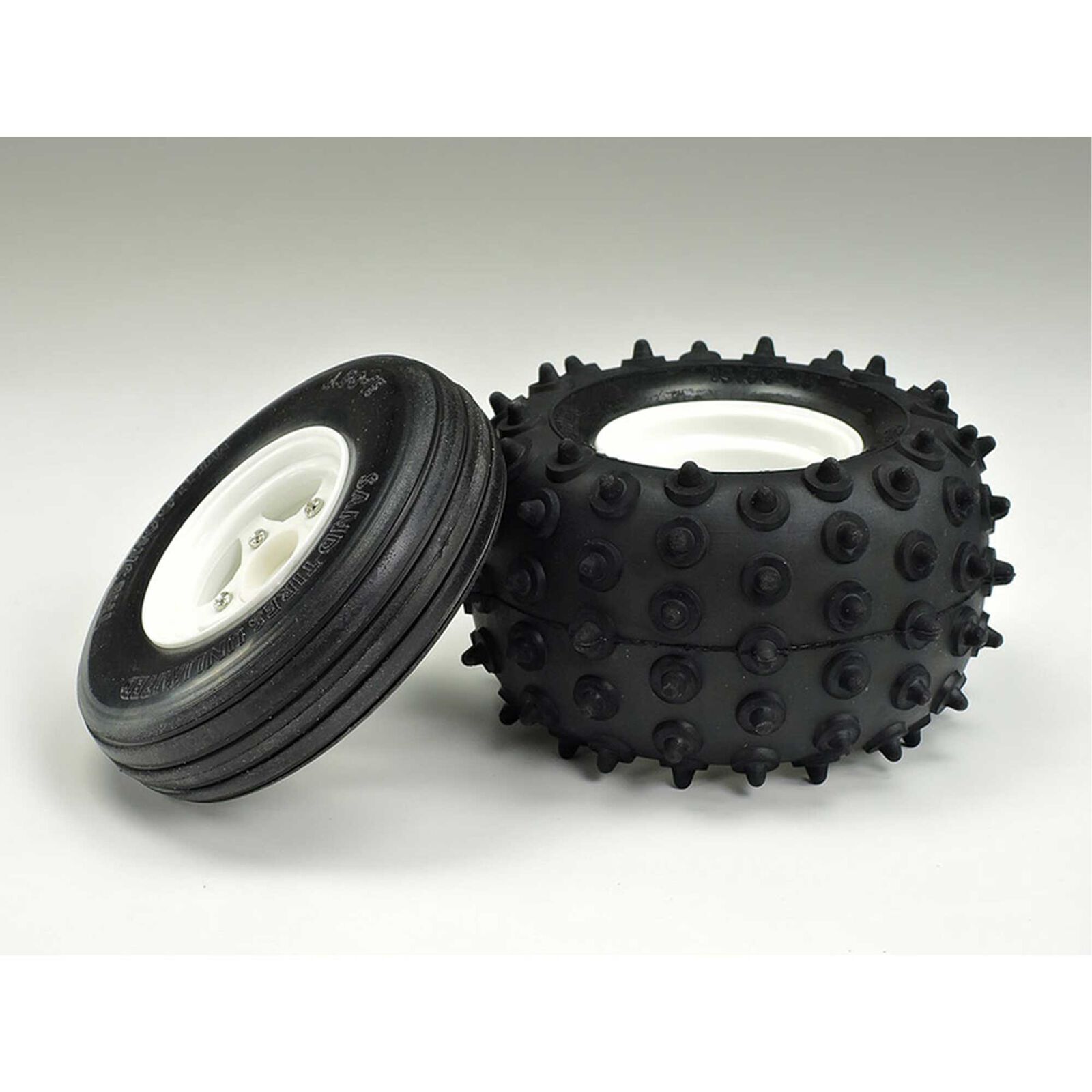

This R/C model assembly kit is an updated version of The Hornet, the original of which was first released in 1984. Length: 430mm, width: 230mm, height: 135mm. The kit largely keeps the original Hornet's bathtub frame and pairs it with 4-wheel independent double wishbone suspension and oil dampers. It also has a sealed rear gearbox for excellent off-road dust proofing with a built-in 3-bevel differential gear for smooth cornering. Three-piece assembly wheels are paired with front ribbed and rear high-grip spike tires. Decorate the lightweight and durable polycarbonate body with the included stickers that cover the orange and yellow color scheme, logos and car numbers.
1/10 Hornet EVO 2WD Buggy Kit Features
- The 0.7mm thick polycarbonate body has the same shape as the classic body from the original Hornet.
- The 2WD chassis has the same bathtub frame as the one used in the original Hornet.

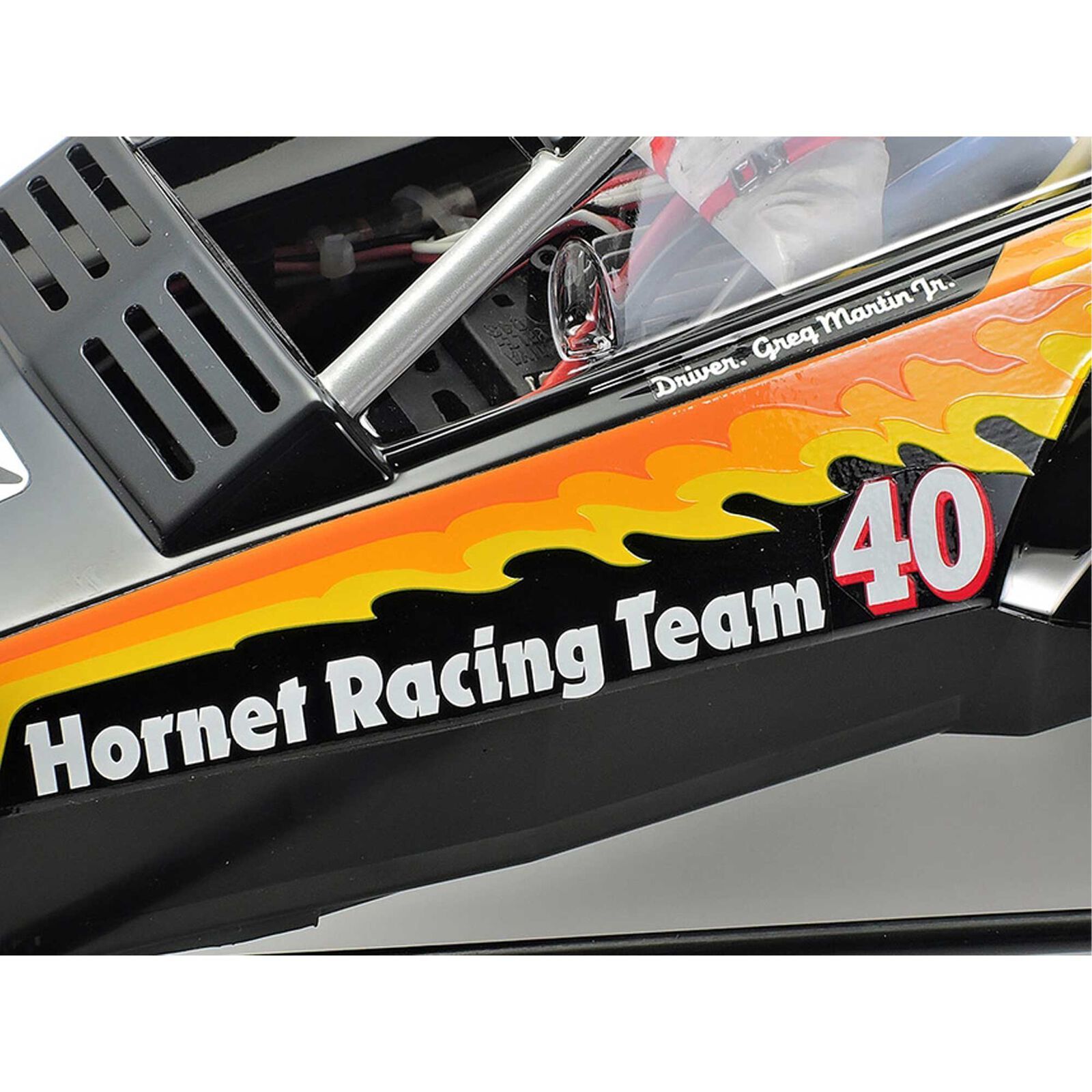

- While the color scheme of the original Hornet is carried over, this kit features an updated sticker design.

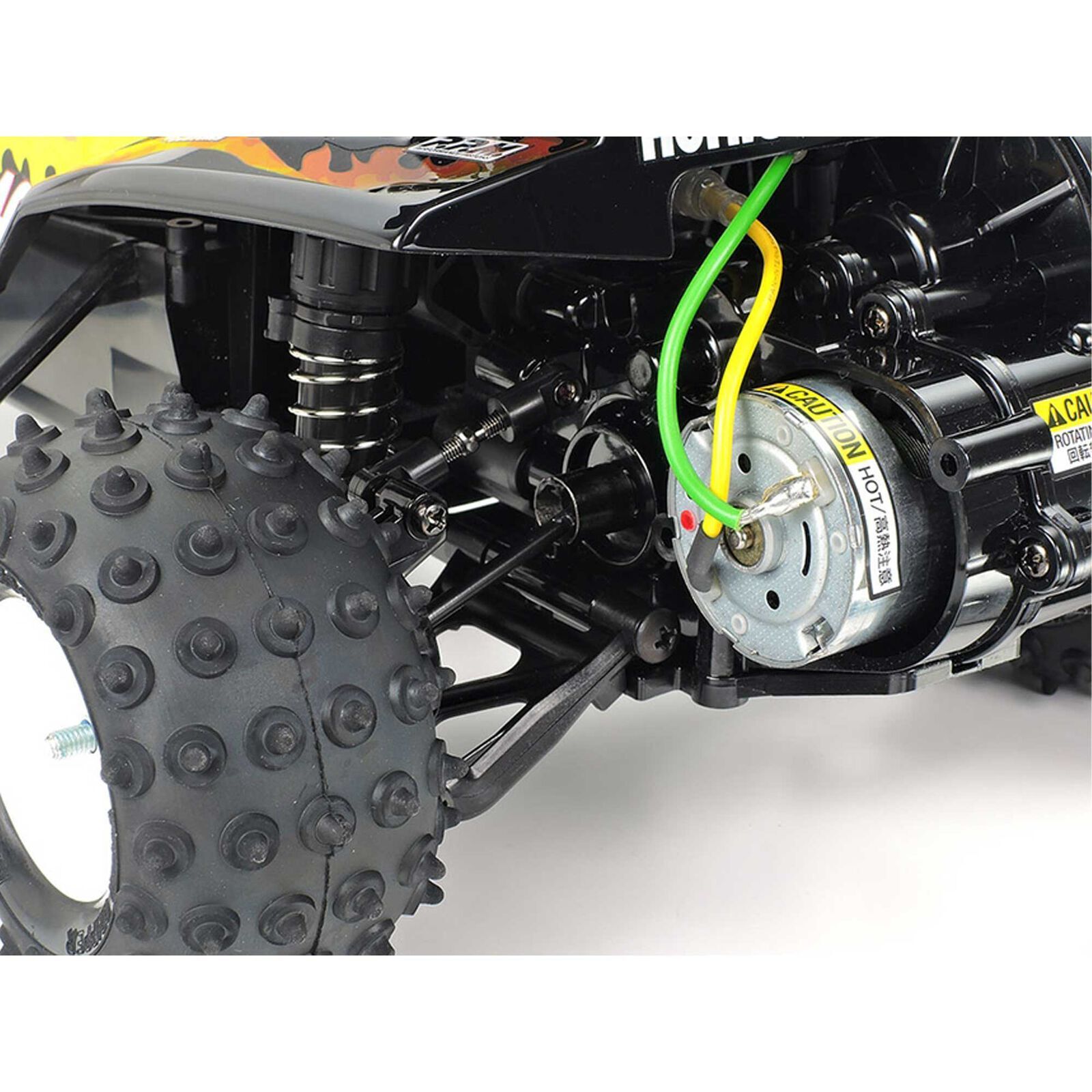

- Includes 540 Brushed motor and ESC.
- 4-wheel independent double wishbone suspension.
- Sealed gearbox with differential gear from the DT-02 chassis.
- Includes full ball bearings!
- Front and rear CVA oil dampers
Smooth 4-Wheel Doubel Wishbone Suspension
Hornet EVO. uses a lightweight, superbly balanced chassis based around a slim ABS plastic bathtub with the R/C equipment atop the inline battery pack in the lower center; its 4-wheel independent double wishbone suspension uses upper I arms and lower H arms front and rear, with CVA oil dampers making for smooth motion. Turnbuckle upper arms ensure that you can adjust the camber to meet your needs. The motor is mounted in the rear along with a sealed gearbox, and dog bone design drive shafts give an extra layer of reliability, with full ball bearings ensuring efficient drive.
Specifications
★Length: 430mm, width: 230mm, height: 135mm ★Wheelbase: 251mm ★Weight (not including R/C equipment and battery pack): 1,075g ★Rear-wheel drive ★4-wheel double wishbone suspension with CVA oil dampers ★Tire width/diameter: 21/73mm (front), 49/86mm (rear) ★Type 540 motor ★Gear ratio = 9.28:1 (with kit 17T pinion) ★Full ball bearings ★ESC included for export.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
