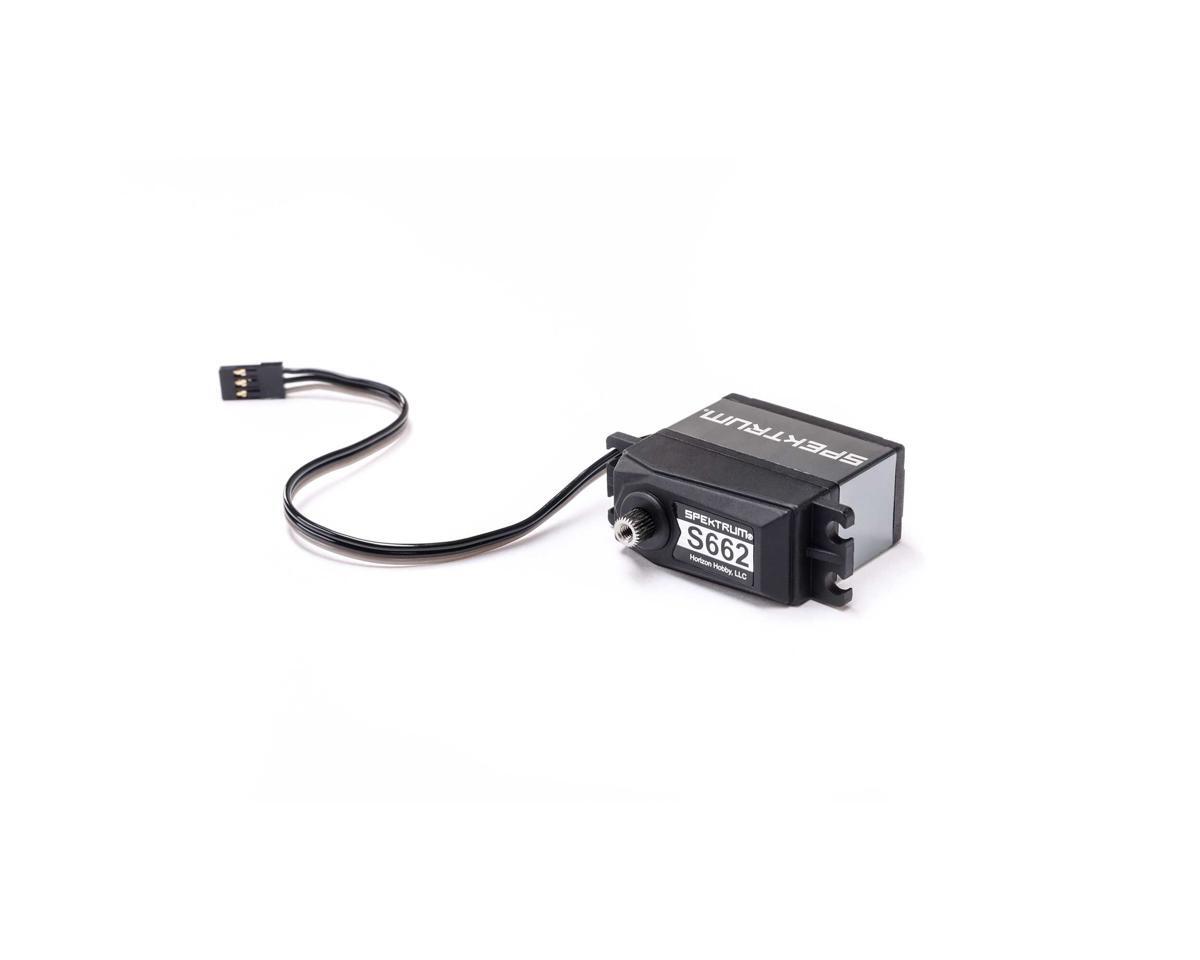

The S662 represents a significant upgrade over standard "ready-to-run" (RTR) servos. While many stock servos utilize plastic or hybrid gears that strip during impacts, the S662 features a Full Steel Gear Train.
Detailed Technical Specifications
1. High-Output Performance
-
Torque @ 6.0V: 18.0 kg-cm (250 oz-in).
-
Speed @ 6.0V: 0.15 sec/60°.
-
Digital Precision: The digital microprocessor ensures faster response times, higher holding power, and more accurate centering compared to analog servos.
2. "Bulletproof" Gearbox & Internals
-
Steel Gear Train: Precision-cut steel gears offer maximum durability against shock loads and high-torque stress.
-
25T Output Spline: Uses the industry-standard 25-tooth spline, making it compatible with a massive variety of aftermarket aluminum servo horns (Pro-Line, Savox, and Spektrum).
-
Dual Ball Bearings: Equipped with dual bearings on the output shaft to reduce friction and eliminate side-play, resulting in smoother steering and longer life.
3. Environmental & Physical Build
-
Water-Resistant Case: Designed with O-ring seals to protect the internal electronics from splashes, mud, and light rain.
-
Standard Dimensions: Measures 40mm x 20mm x 38mm, fitting perfectly into the factory mounting holes of most 1/10 and 1/8 scale RC chassis.
-
Heat Dissipation: The middle section of the case is designed to act as a heat sink, keeping the motor cool during aggressive driving sessions.
