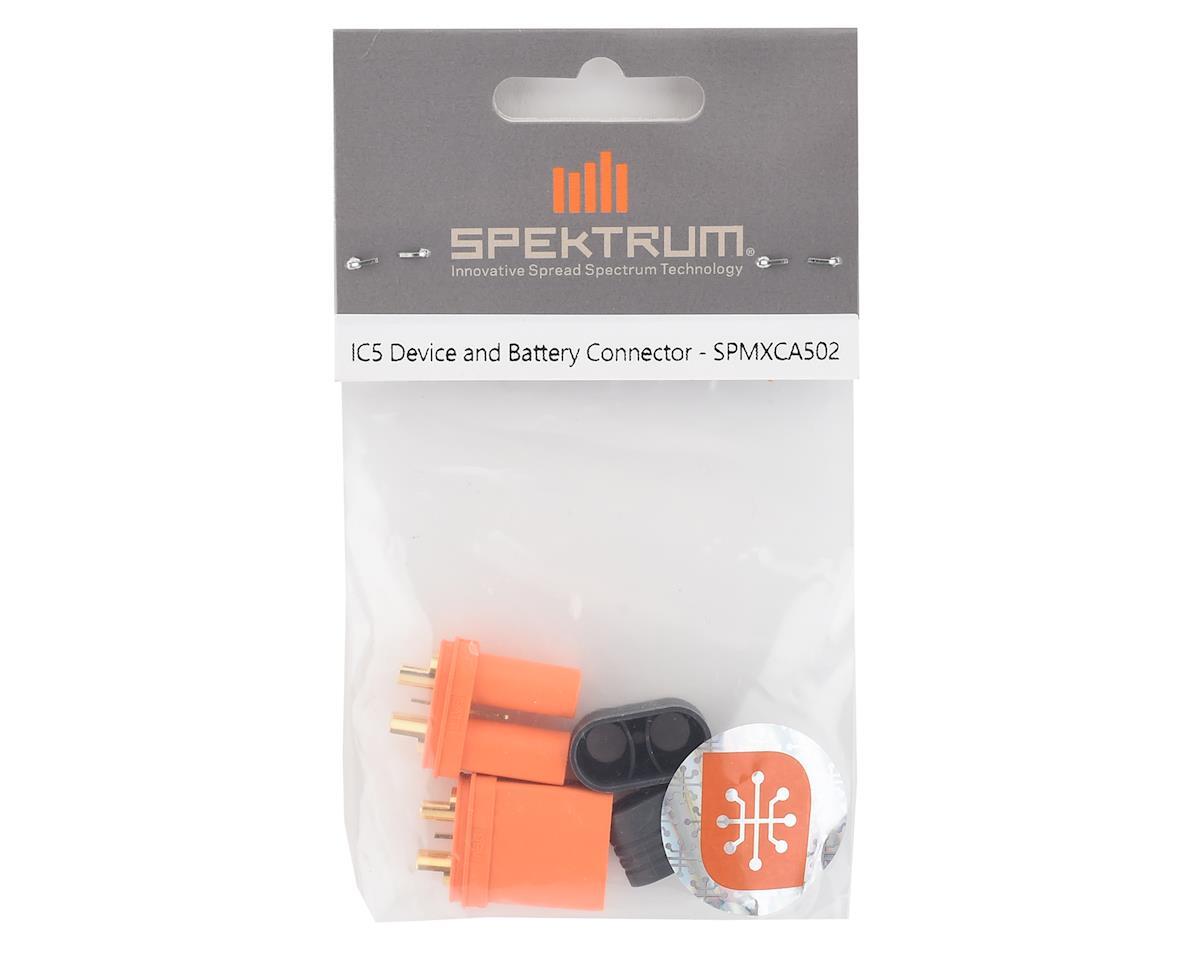

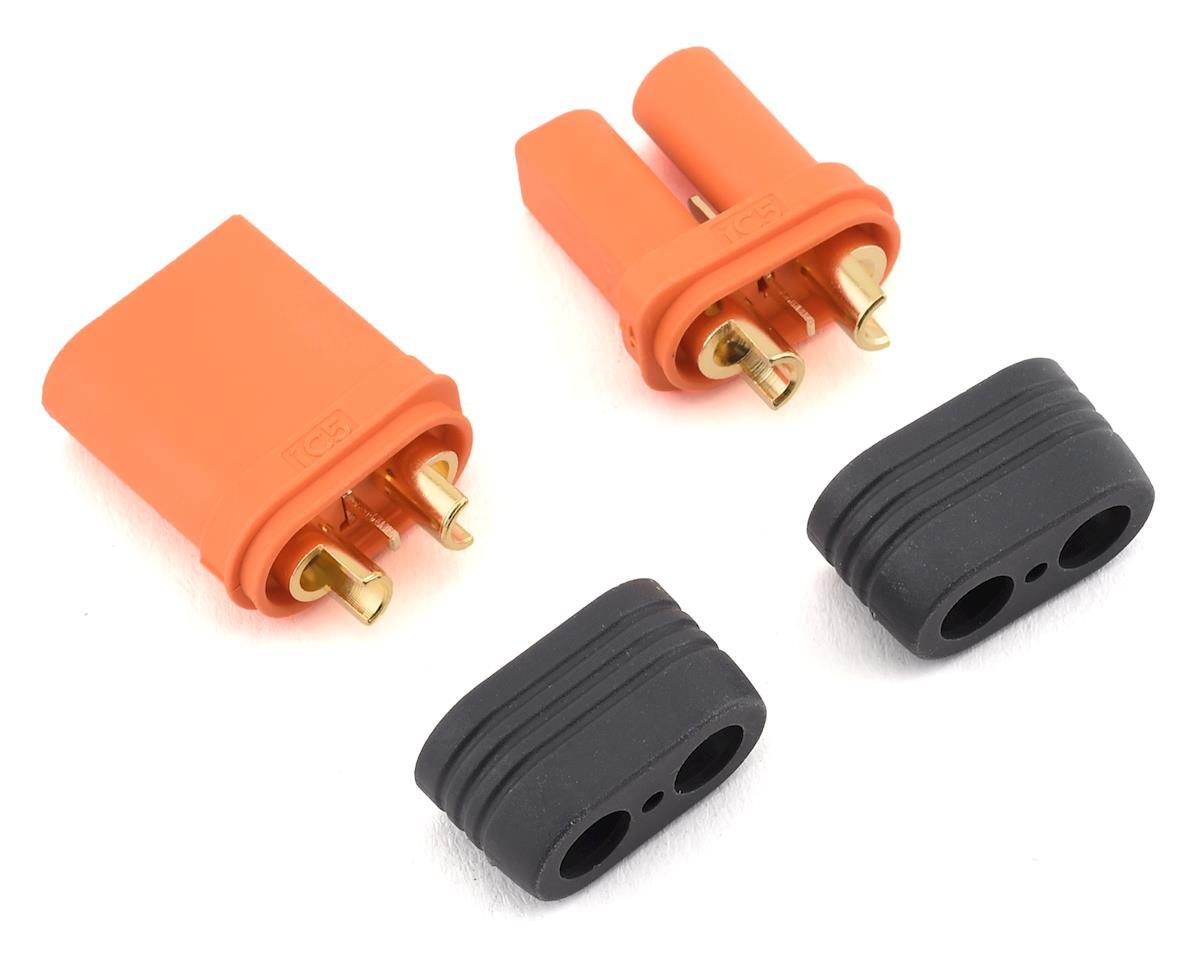

Spektrum RC IC5 Device & Battery Connector 1 Male & 1 Female Connector SPMXCA502

The IC5 connector is more than just a plug; it is a data hub. It features a dedicated Smart data pin that allows Spektrum Smart batteries to communicate vital health and performance telemetry directly to Smart-compatible ESCs and chargers. Despite this advanced tech, the physical housing is designed to be user-friendly, providing a secure, high-tension connection that won't vibrate loose.

Detailed Technical Specifications

1. Integrated Smart Data Pin

• Real-Time Telemetry: The center data pin enables the transfer of battery temperature, cell voltage, and cycle counts to your transmitter or charger.

• Plug-and-Play Intelligence: When used with Smart chargers, these connectors allow for "One-Touch" charging, where the charger automatically recognizes the battery settings.

2. High-Conductivity Gold-Plated Bullets

• 120A Continuous Capacity: Precision-machined 5mm bullet connectors offer massive surface area, minimizing resistance and preventing heat buildup even during aggressive, high-discharge driving or flying.

• Low Resistance: The gold-plating ensures a corrosion-free connection and consistent conductivity over hundreds of plug/unplug cycles.

3. Superior Housing Design

• Backward Compatibility: IC5 connectors are designed to mate perfectly with standard EC5 connectors. This allows you to use your Smart batteries with older ESCs (though Smart data features require both ends to be IC5).

• High-Temp Material: The connector shells are molded from a durable, heat-resistant plastic that won't soften or deform during the soldering process.

• Polarized Shape: The unique "D-shaped" housing prevents accidental reverse-polarity connections, protecting your expensive electronics from short circuits.
