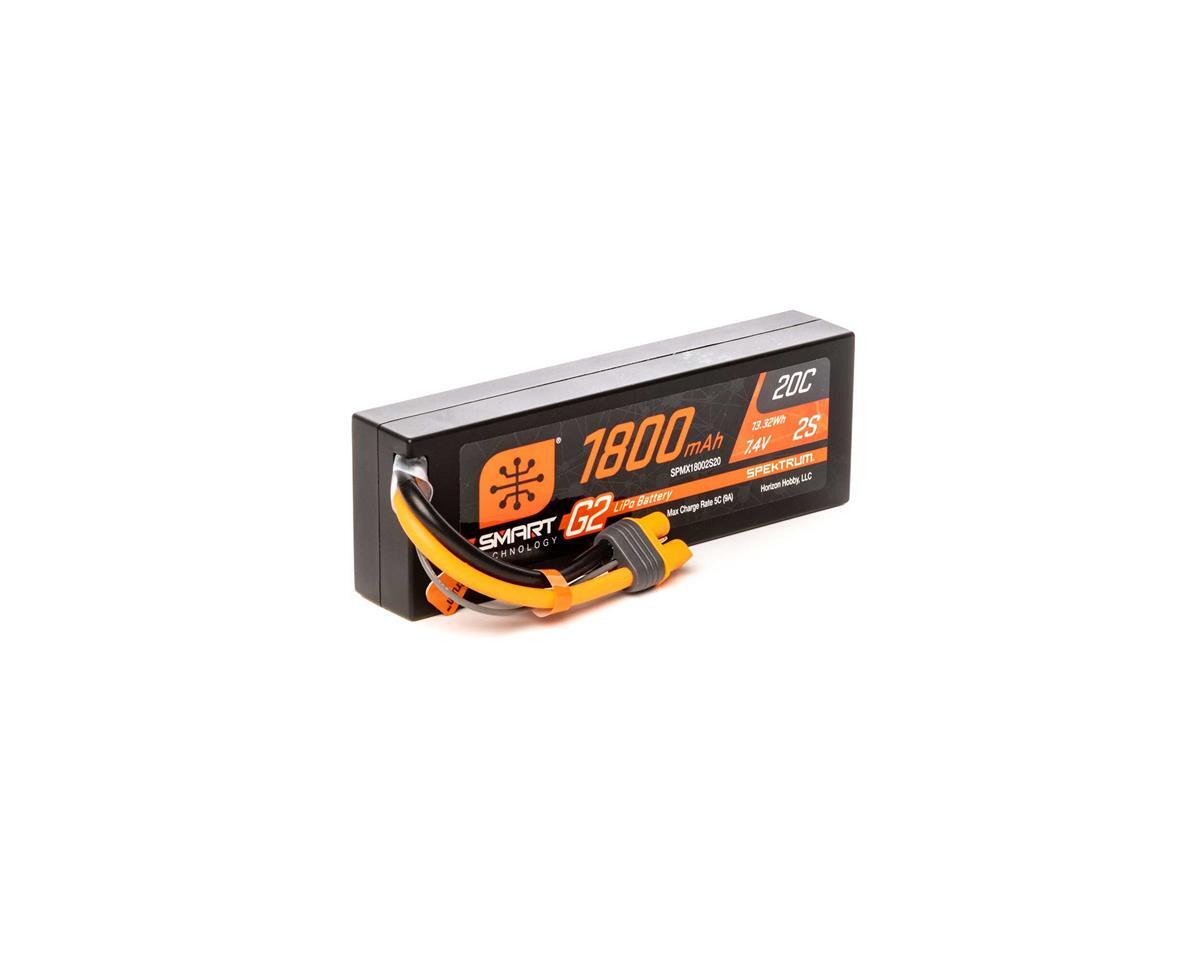

Spektrum RC 7.4V 1800mAh 2S 20C Smart G2 LiPo Battery IC3 Connector SPMX18002S20

The G2 (Generation 2) series simplifies the LiPo experience by eliminating the fragile balance lead. All balancing and data communication happen through the IC3 connector itself. When plugged into a Spektrum Smart Charger, the battery automatically shares its chemistry, cell voltage, and temperature, setting the optimal charge parameters instantly.

Detailed Technical Specifications

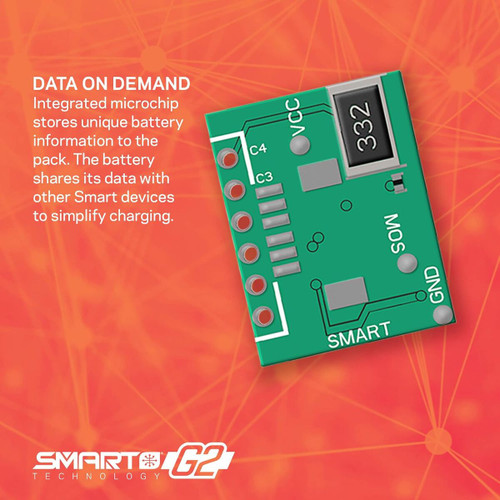

1. Integrated Smart Microchip

• Auto-Storage Discharge: The internal chip can be programmed to automatically discharge the battery to a safe storage voltage after a period of inactivity (default is 72 hours). This significantly extends the lifespan of the cells and improves safety.

• Battery Health Log: Tracks the number of charge cycles, over-discharge incidents, and temperature spikes, allowing you to monitor the health of your power plant over time.

2. G2 Design (No Balance Lead)

• Cleaner Installation: Without a separate balance wire, the battery is easier to install in tight battery trays and is less prone to wire damage.

• Simplified Charging: Simply plug the IC3 connector into a Smart G2 charger; the charger identifies the battery and begins balancing the cells through the main power pins.

3. High-Performance Output

• 20C Discharge Rate: Provides a steady flow of current (up to 36 Amps continuous) suitable for a wide range of park flyers, mini-scale surface vehicles, and high-end radio transmitters.

• IC3 Connector Stability: The IC3 connector features gold-plated pins and is fully backwards compatible with standard EC3 connectors (though Smart features require a Smart charger).
