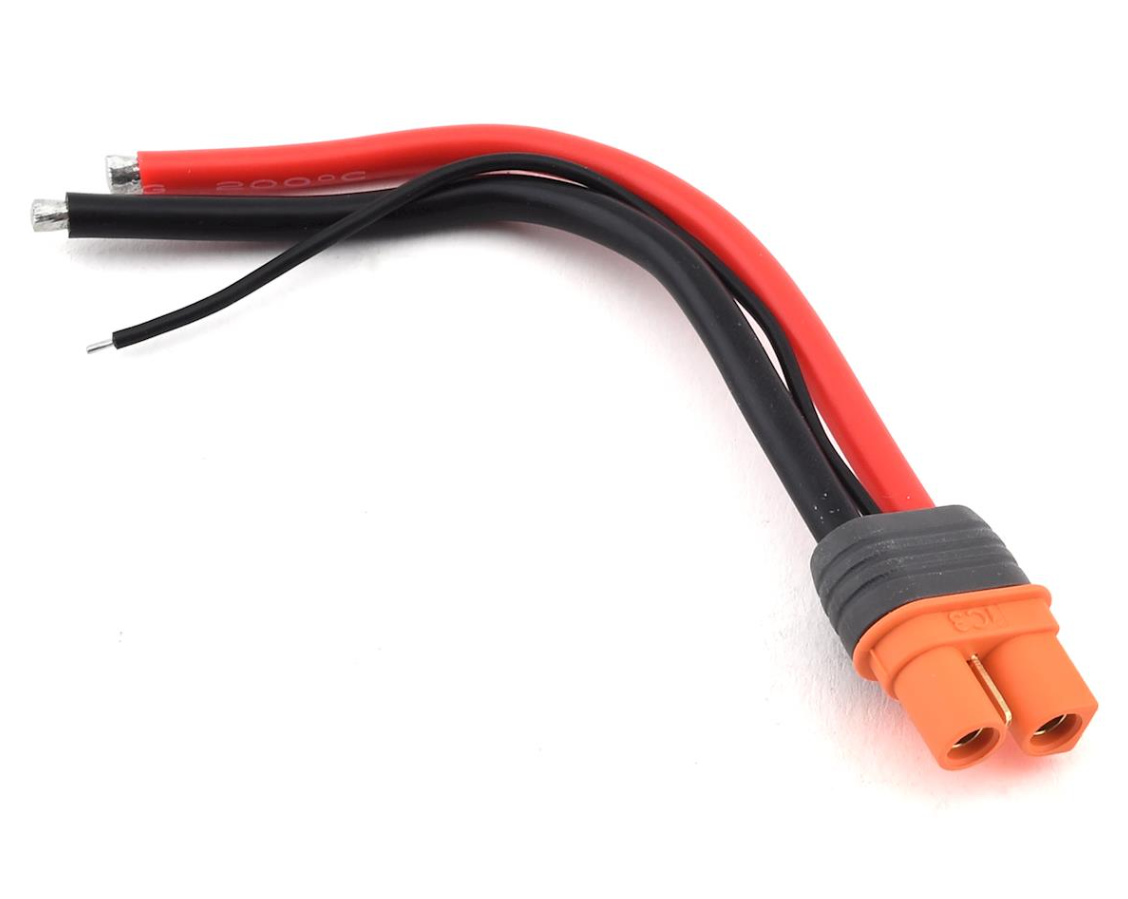

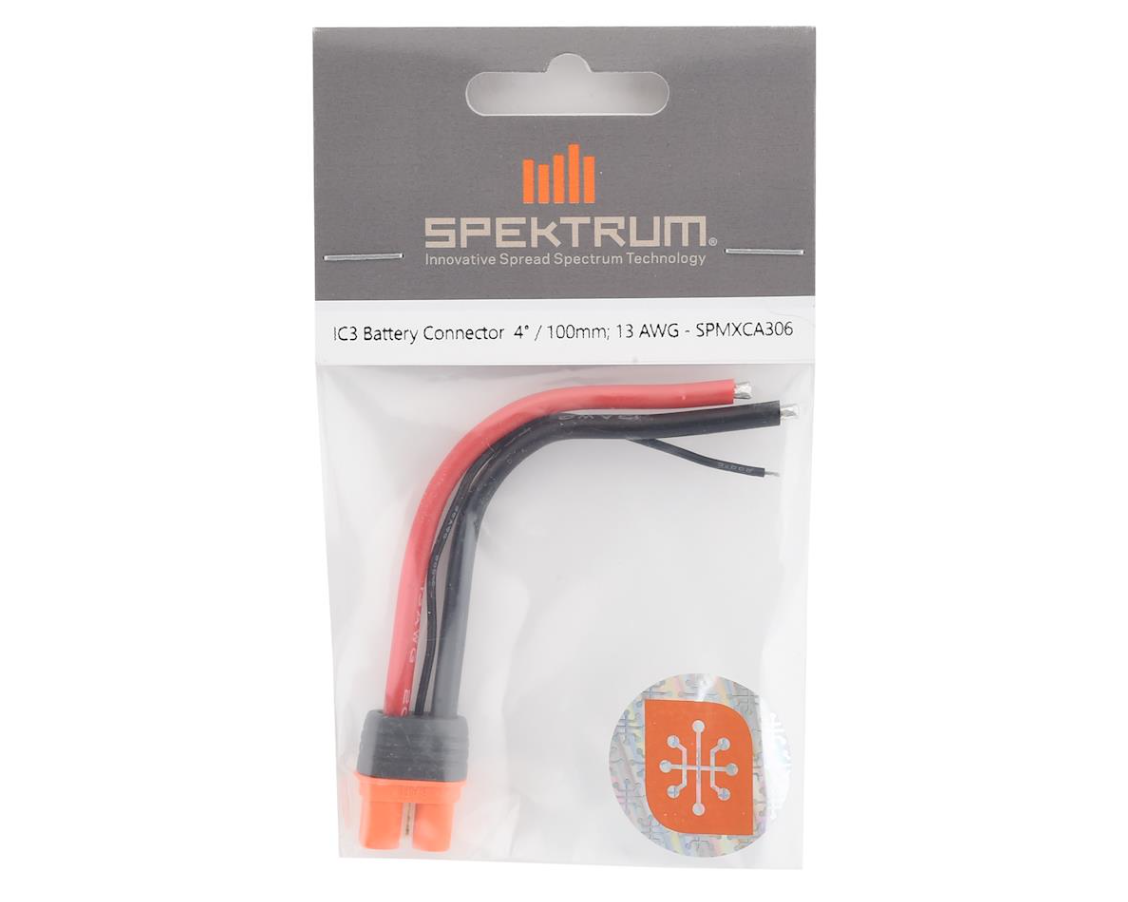

Streamline your battery soldering projects with this pre-wired Spektrum IC3 Battery Connector. This "pigtail" assembly features a factory-molded IC3 connector attached to 4 inches of high-quality silicone wire, saving you the hassle of trying to solder wires into the back of a connector housing yourself.
This component is designed to be installed onto a Battery Pack. Whether you are repairing a damaged lead on your favorite 3S LiPo, converting a generic battery to fit your Spektrum system, or building a custom pack from scratch, this pigtail ensures a clean, professional, and high-current connection.
Key Features
-
Pre-Wired Convenience: Comes with 4 inches of wire already soldered to the pins and molded into the housing. You simply splice or solder the loose ends to your battery tabs.
-
Smart Technology Ready: Includes the integrated Grey Data Wire.
-
If building a Smart Battery: Connect this to the Spektrum Smart Microchip to enable telemetry.
-
If repairing a Standard Battery: Simply snip or insulate the grey wire; the connector functions perfectly as a standard power plug without it.
-
-
Optimized Wire Gauge: Uses 13 AWG Silicone Wire.
This gauge is the perfect "Goldilocks" size for 1/10 scale applications—thick enough to handle high amps (up to 60A continuous) but flexible enough to fit easily into cramped battery compartments. -
EC3 Compatibility: Fully backward compatible with older EC3 connectors.
You can plug this battery into any EC3 ESC or Charger.
Specifications
-
Connector Type: IC3 (Battery Side / Female Bullets in Housing)
-
Wire Gauge: 13 AWG (Red/Black) + 24 AWG (Grey Data)
-
Wire Length: ~4 Inches (100mm)
-
Insulation: High-Heat Silicone
