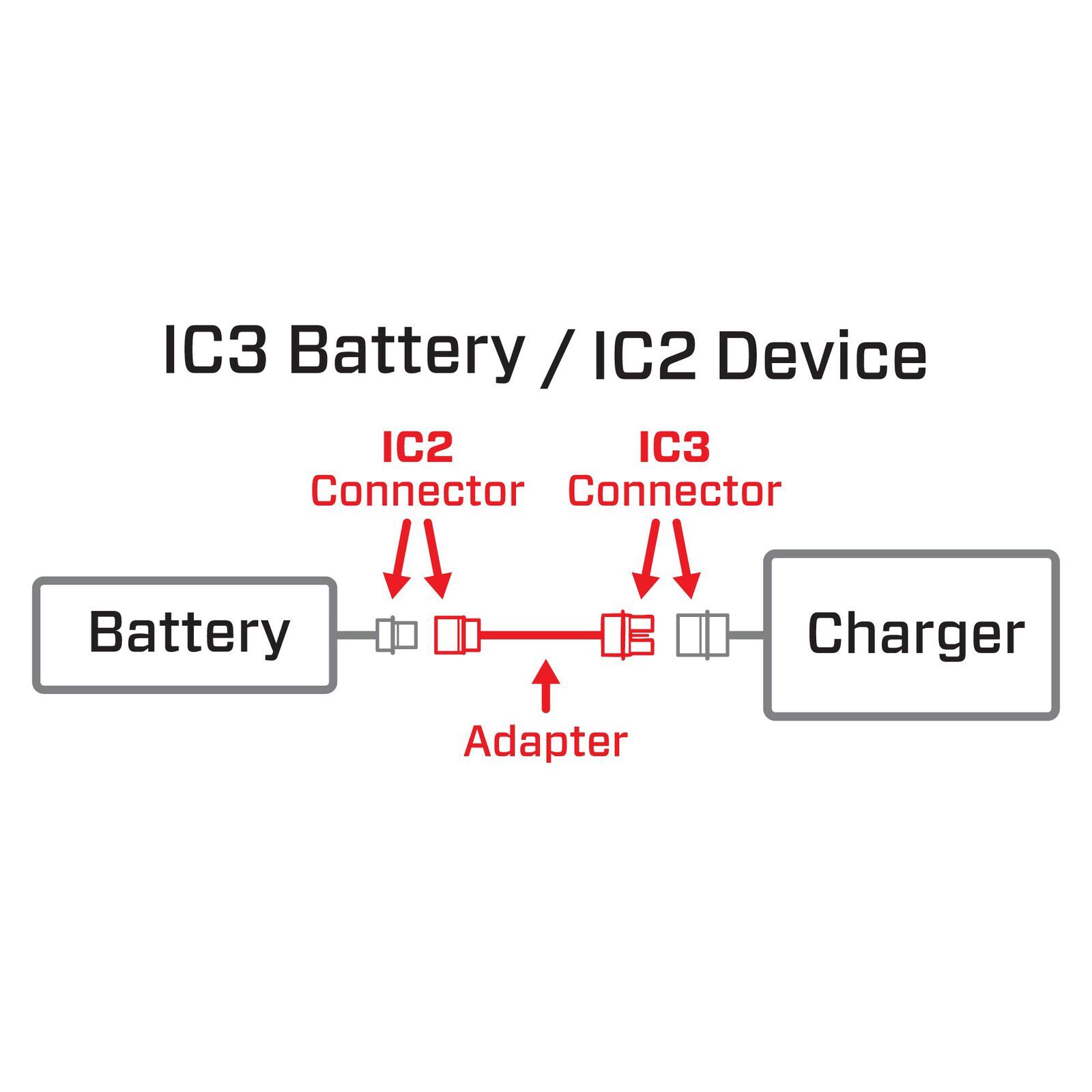

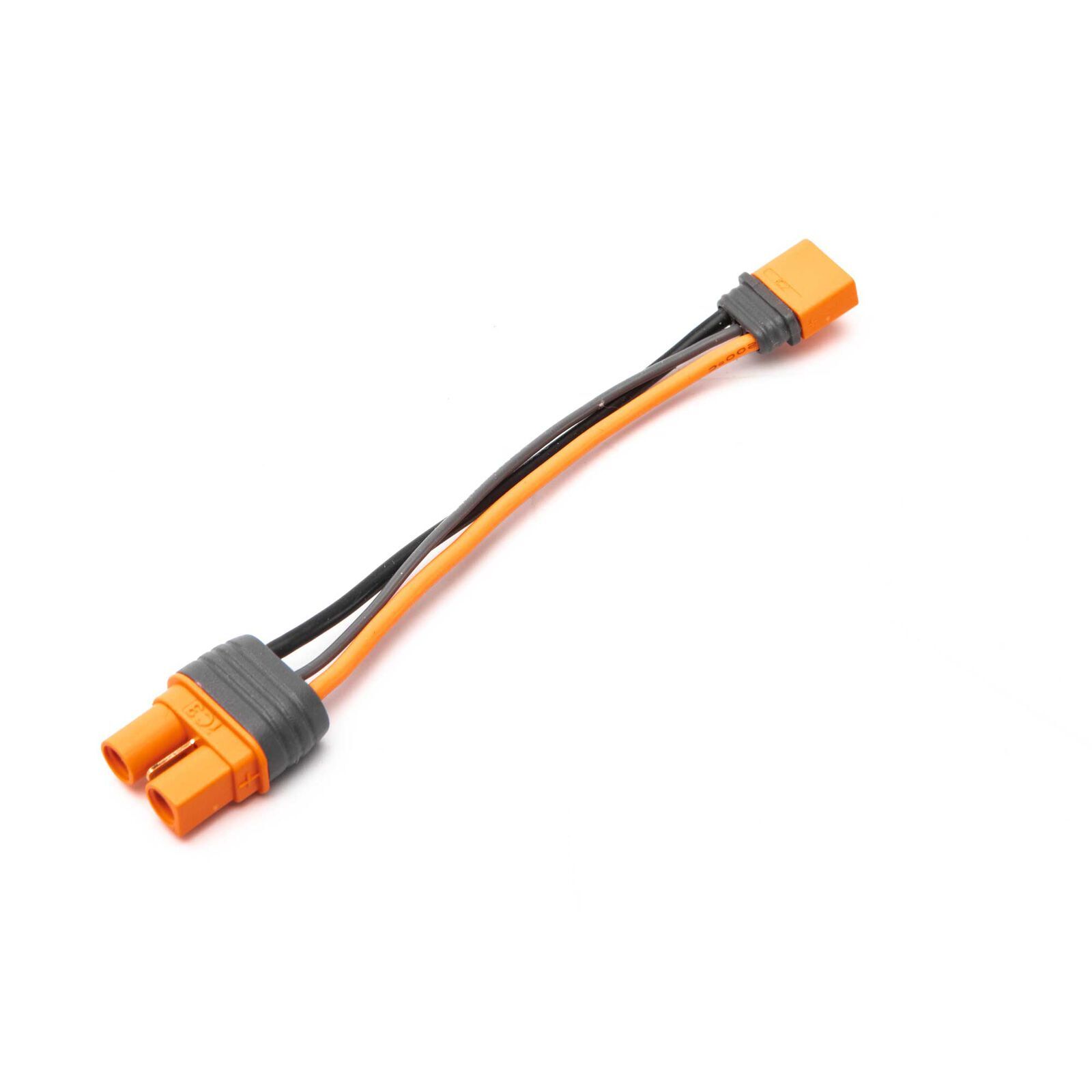

Bridge the gap between your "Mini" scale batteries and your standard equipment with this Spektrum Smart Adapter. This 6-inch cable allows you to connect a battery with a small IC2 connector to a device (Charger or ESC) equipped with a standard IC3 connector.
This is the #1 essential accessory for owners of the Losi Mini-T 2.0, Mini-B, or Mini-JRX2. Most standard Spektrum Smart Chargers (like the S150, S155, or S2100) feature IC3 output ports.
Key Features
-
Smart Data Pass-Through: Includes the integrated data wire. When charging, this allows your Smart Charger to automatically read the battery's chemistry, cell count, and charging rate from the IC2 battery microchip. No manual programming required!
-
Heavy-Duty Connection: Features high-quality wire that easily handles the charging currents of 2S LiPo packs.
-
Extended Reach: The 6-inch length provides extra room on your charging bench, so your battery doesn't have to dangle directly from the charger port.
-
Backwards Compatibility:
-
IC3 End: Compatible with older EC3 devices (Chargers/ESCs).
-
IC2 End: Compatible with older EC2 batteries.
-
(Note: Smart data features only work when using IC-to-IC connections).
-
Specifications
-
Connector A: IC3 Battery Style (Male Housing / Pins)
-
Plugs into an IC3 Charger or ESC.
-
-
Connector B: IC2 Device Style (Female Housing / Pins)
-
Plugs into an IC2 Battery.
-
-
Wire Length: 6 Inches (~150mm)
-
Wire Gauge: 16 AWG (Optimized for Mini/Micro applications)
