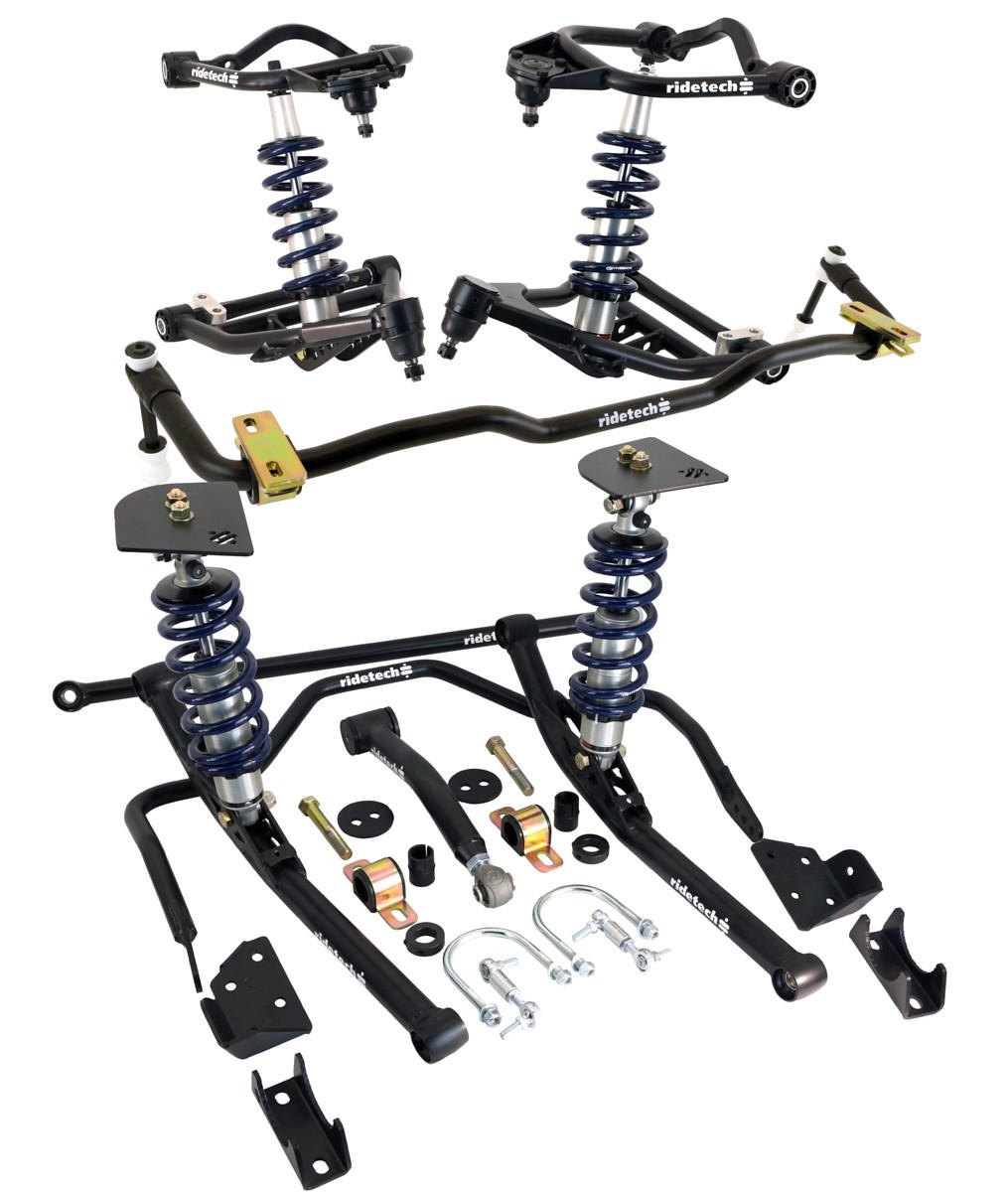

Ridetech 59-64 Chevy Impala Complete Coilover Suspension System

Revolutionize the suspension of your 1959-1964 Chevy "B" Body cars – including Impala, Bel Air, Biscayne, Brookwood, El Camino, Kingswood, Nomad & Parkwood – with the meticulously engineered CoilOver System from Ridetech. This comprehensive system is designed to provide a lowered stance while delivering remarkable improvements in handling and ride quality. Say goodbye to guesswork; Ridetech has invested hours in collecting data to determine the perfect spring rate and components for your vehicle's performance and comfort.

Key Features:

Front Suspension:

\n
• Upper StrongArms: Corrected ball joint angles and a repositioned upper ball joint for additional caster settings enhance high-speed stability and steering feel. Powder-coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts for easy installation.
\n
• Lower StrongArms: Featuring a double-sheer lower mount for increased strength, these arms are also powder-coated satin black and fully assembled with ball joints, injection-molded Delrin bushings, and cross shafts for hassle-free installation.
\n
• HQ Series CoilOvers: Impact forged aluminum body and Monotube design ensure excellent ride quality and handling. Fine-tune ride quality and handling with the top-mounted rebound knob. Comes with a 1,000,0001 Mile Warranty. Hyperco springs provide consistent spring rate for a lifetime. For AutoCross or Road Course Racing enthusiasts, the TQ Series CoilOvers offer remote reservoirs with high and low-speed compression adjustments.
\n

Rear Suspension:

\n
• Rear StrongArms: Provide added strength to transfer power efficiently to the pavement. Utilizes R-Joint Technology for smooth operation and reduced roll bind. Adjustable upper arm and panhard bar ensure centered axle and set pinion angle.
\n
• Front & Rear MuscleBar Sway Bars: Significantly reduce body roll with higher rates, performance end links, and Delrin lined bushings.
\n

Notes:

\n
• Must be used with 1959-1964 stock spindles.
\n
• Disc brake brackets must mount to the outside face of the spindle.
\n
• If using stock-style power steering with the assist cylinder, an additional bracket (Part # 11059121) is required.
\n
• Some cars have two rear upper control arms and will need an additional StrongArm (Part # 11066698).
\n

Upgrade your classic Chevy "B" Body with confidence, knowing that Ridetech's CoilOver System is engineered to deliver exceptional performance, durability, and a lowered stance for an unmatched driving experience.
