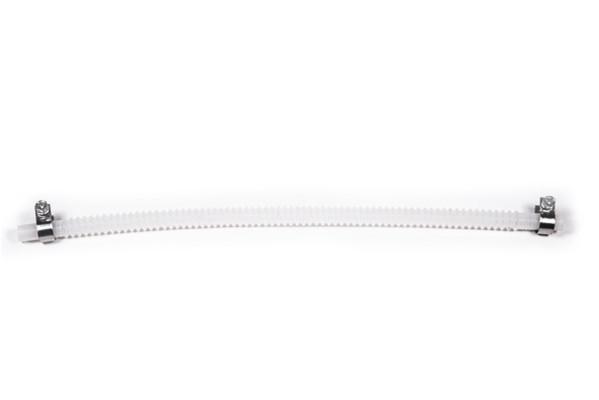

These fuel tubing kits serve as a common choice for plumbing in-tank submerged fuel pumps. Crafted from polyamide nylon, the flexible convoluted tubing is resistant to all fuel types, including alcohol blends like E85, making it suitable for EFI fuel pressure applications.
Available in two inner diameter sizes—5/16" (8mm) and 3/8" (10mm)—these kits offer versatility. During installation, a simple method involves running hot water over the ends to facilitate material flexibility, ensuring a snug fit over the barb. Subsequently, torque the reusable stainless steel SAE J1508 clamps to 13.3 in-lbs for a secure 360-degree seal, featuring rolled edges to protect the tubing.
Note: Except for 20-0875 (above) and 20-0895, all tubes are translucent white, while these exceptions are opaque black.

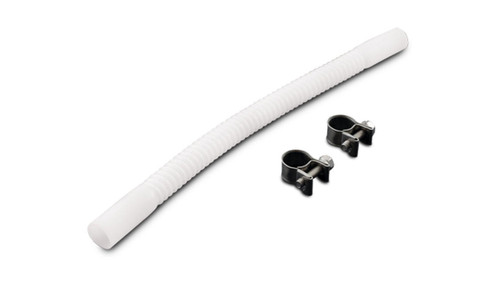

Includes:
- PA Nylon Convoluted Tubing
- Stainless Steel EFI Tube Clamps (x2)
Testing: These tubes have undergone rigorous testing at Radium Engineering.
- Working Pressure: 300psi
- Burst Pressure: 450psi
Experience reliability and durability with these fuel tubing kits for your in-tank submerged fuel pump applications.
