Racepak Street Smartwire Power Control Module

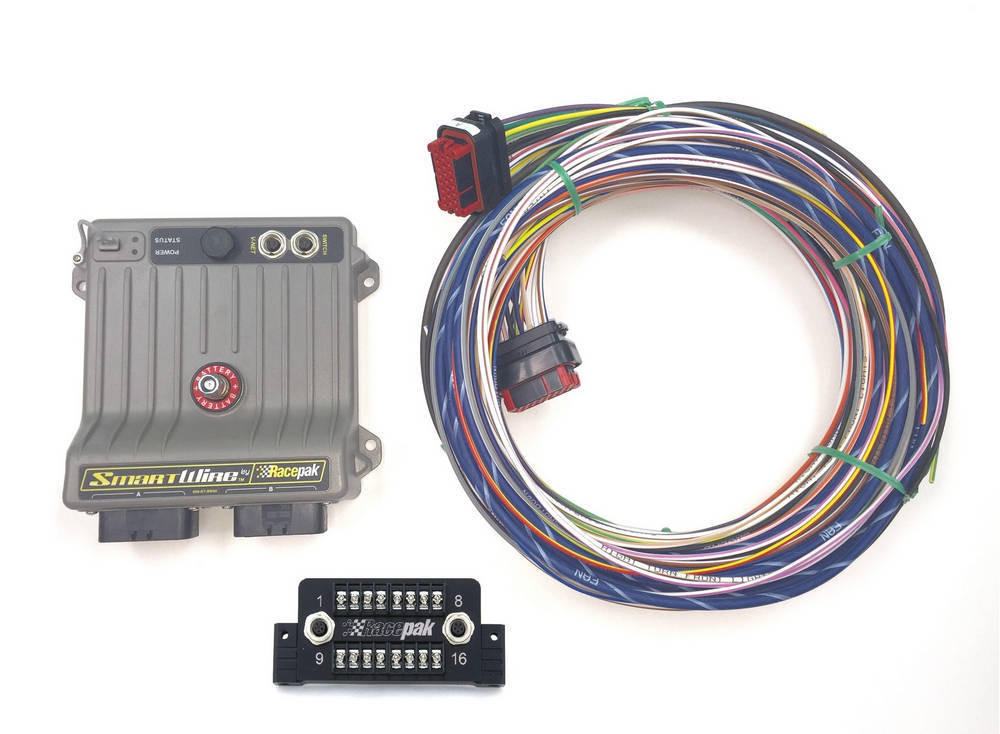

The Racepak SmartWire stands out as the most straightforward approach to wiring any vehicle while introducing contemporary electronic features and functionalities. Leveraging Racepak's exclusive single-cable V-Net technology, the SmartWire module serves as the electronic "hub," featuring a direct main power connection from the vehicle battery to the module. Each input or output is entirely user-definable, encompassing function, power requirements, and current limits, all adjustable through a USB connection to the user's PC. The included Datalink II programming software is readily downloadable at any time.

The SmartWire unit is designed to reduce overall installation weight and wiring clutter, offering a more responsive electronic system through its solid-state switching design.

SmartWire seamlessly integrates with existing Racepak V-Net equipped vehicles, ensuring compatibility and providing additional inputs, control modules, and instrumentation when connected with existing V-Net equipment. Even as a standalone power control module, it offers remarkable functionality.

Manual activation becomes convenient with the included 16-channel switch module (500-SW-SM16). Using a single small cable routed to the Switch module from the Racepak SmartWire unit reduces wiring clutter. For users requiring expanded switch capabilities, a simple "jumper" cable facilitates connection to a second Racepak Switch Panel or Switch Module.

Key Features:

• 125 Total Amp Capacity
• Min/Max Power Supply: 8-20 Volts
• Operating Power Supply: 12-16 volt automotive applications
• 30 Total Output Channels
• Output Protection: User definable over current limits. Internal short circuit and/or thermal overload (non-definable)
• 8 Channels @ 20 Amps Maximum for high amperage applications (e.g., electric fuel pumps or starter solenoids)
• 22 Channels @ 10 Amps Maximum for low amperage applications (e.g., headlights, turn signals, or small cooling fans)
• 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
• Data Output: Volts, Amps, Status (On/Off).
• Test Mode: Quickly determine if an input or output is working as intended.
• Response Time: 3.0 Milliseconds
• Programming: USB Cable w/ Free Datalink II Software
• Dimensions: 6" (L) x 5.5" (W) x 1.5" (H)
• Connectors: Two - 23 pin Ampseal, One 1/4" x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors)
