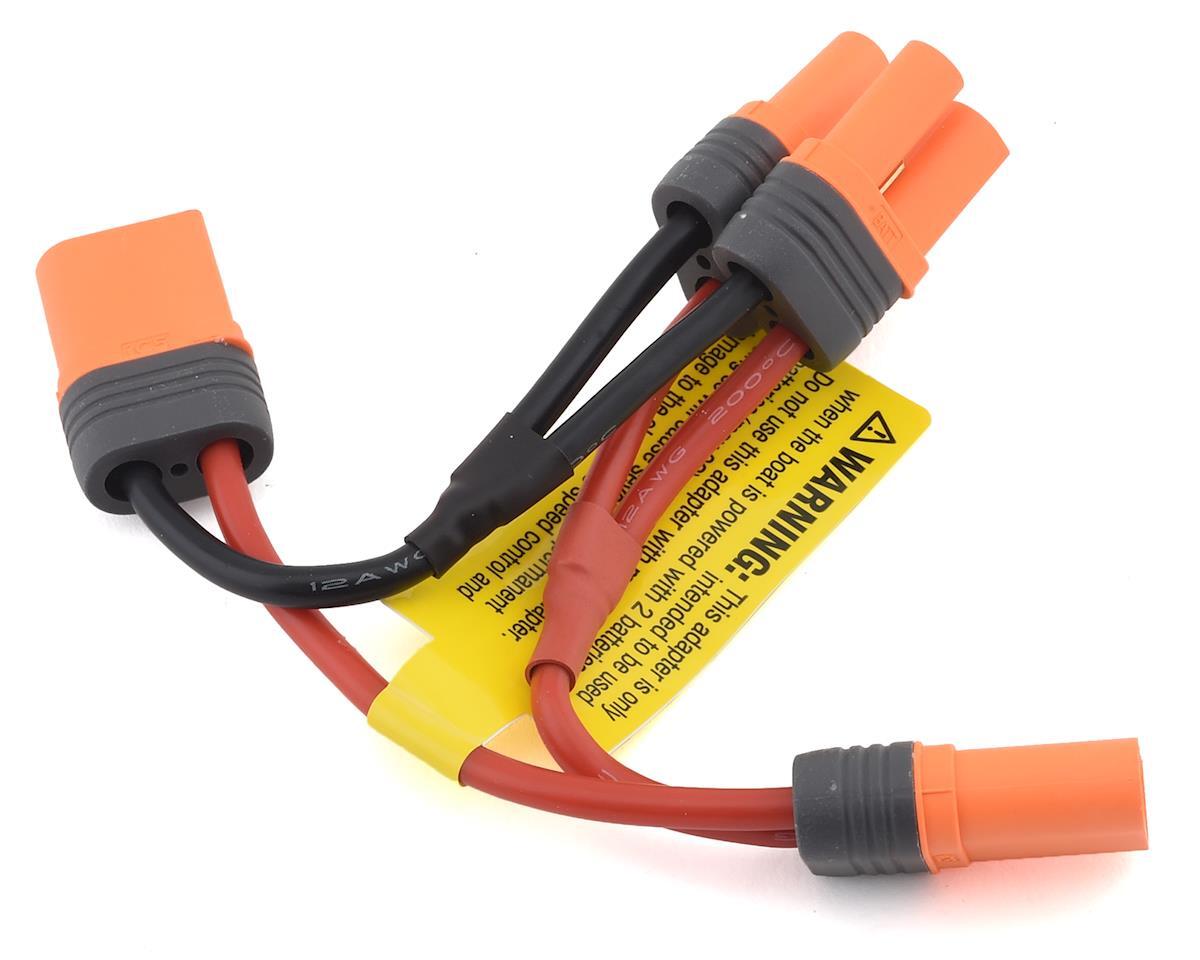

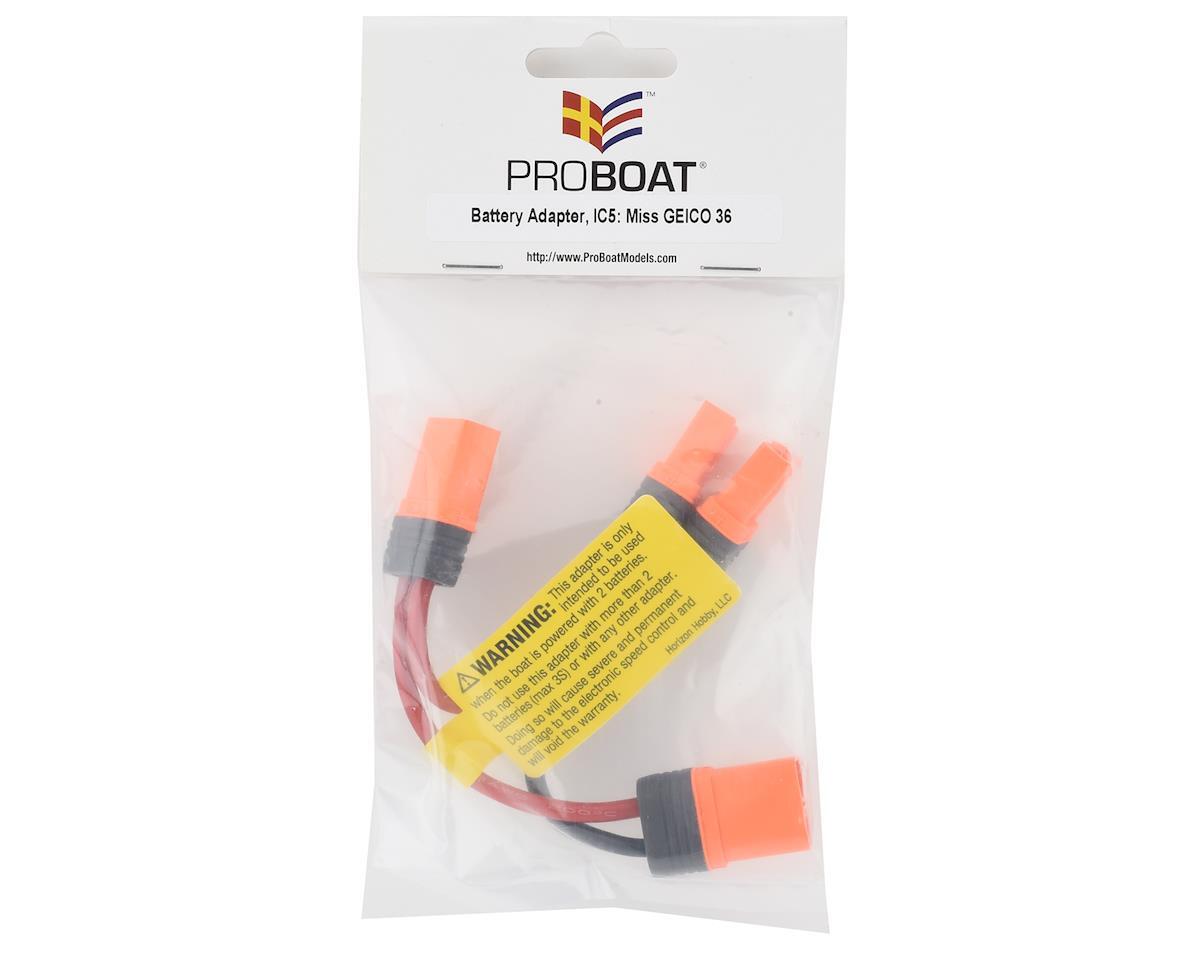

Unlock the full voltage potential of your large-scale boat with this EC5 Series Harness. While specifically cataloged for the Pro Boat GEICO Zelos 36 Twin, this is a universal heavy-duty adapter designed to connect two batteries into a single ESC to double the voltage.
In the context of the Zelos 36 Twin: The boat requires 6S (22.2V) power per motor to reach its top speeds. However, most boaters own standard 3S (11.1V) battery packs. This adapter allows you to plug two 3S batteries together to function as a single 6S 22.2V power source for one motor.
-
Note: Since the Zelos 36 has two motors, you would need two of these adapters (one for the left side, one for the right side) if you plan to run the boat on a total of four 3S batteries.
Key Features
-
Series Configuration: Wired specifically to add voltage.
-
Math: (Battery A Voltage) + (Battery B Voltage) = Total Voltage.
-
Example: 3S (11.1V) + 3S (11.1V) = 6S (22.2V).
-
Capacity: Capacity (mAh) stays the same. (e.g., Two 5000mAh packs in series = One 6S 5000mAh system).
-
-
Heavy-Duty 10AWG Wire: Boats draw massive amperage (often 100A+ continuous). This harness uses thick 10-gauge wire to minimize resistance and heat buildup, preventing the wires from melting during a full-throttle pass.
-
Genuine EC5 Connectors: Features high-quality blue EC5 connectors that provide a secure, spark-resistant connection capable of handling high current.
-
Compact Design: Short wire leads keep the center of gravity low and reduce wire clutter inside the hull.
Compatibility
-
Connectors: EC5 (Device side and Battery side).
-
Vehicle: Pro Boat GEICO Zelos 36 Twin (Recommended for running 4x 3S setups).
-
Universal Use: Can be used on any RC Boat, Car, or Plane that uses EC5 connectors where you want to combine two identical batteries for higher speed (e.g., Arrma Kraton 6S running on two 3S packs).
Specifications
-
Wire Gauge: 10 AWG
-
Input: (2) EC5 Plugs (Connect to your Batteries)
-
Output: (1) EC5 Plug (Connects to your ESC)
-
Type: Series Adapter (Doubles Voltage)
