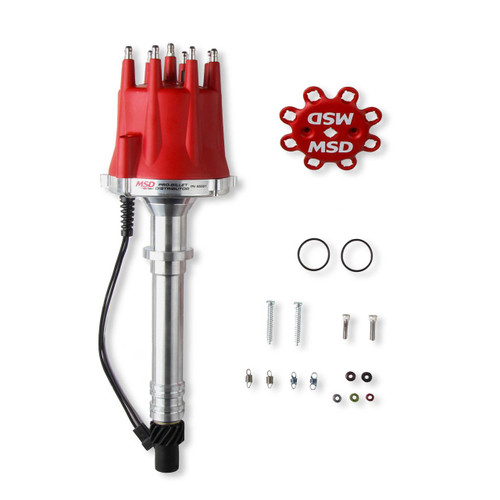

Tailored for racing blocks with significantly increased deck height, such as Alan Root, Merlin, and Rocket Blocks, MSD presents this Distributor featuring an adjustable slip collar with nearly 3" of adjustment to ensure precise installation.
This distributor inherits the key attributes of the standard Pro-Billet Chevrolet model, including a ball bearing guide, a long sintered lower bushing, and an oil seal. To activate the MSD Ignition, a maintenance-free magnetic pick-up is securely positioned in the billet base of the distributor. Positioned just above this pick-up assembly is an adjustable mechanical advance assembly.
Features:
- Extra-tall housing designed for use with Alan Root, Donovan, Merlin, and Rocket racing blocks
- Must be used with an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (compatible with Cap-A-Dapts)
- O-ring seals can be added to modified blocks to enhance oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and TIG-welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Adjustable slip collar mounting flange provides up to 3” of adjustment
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
