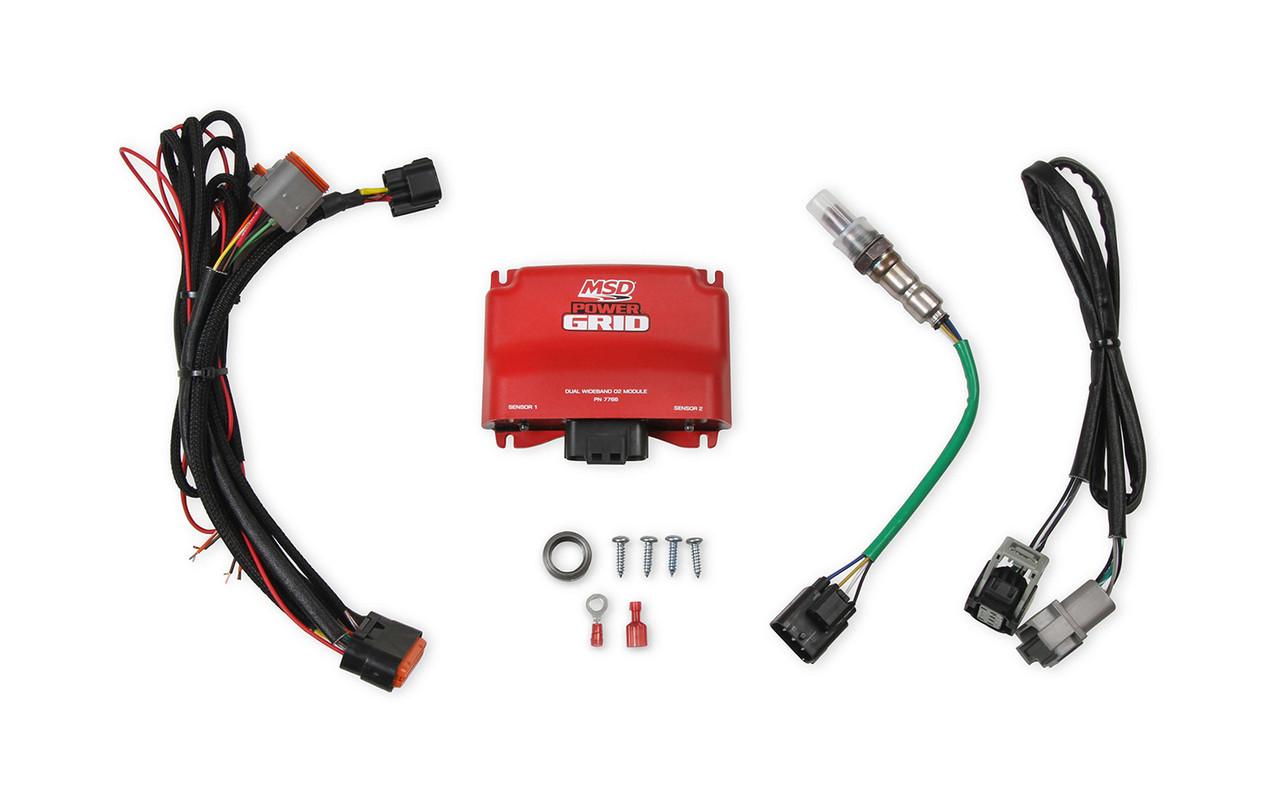

Msd Ignition Power Grid Dual Ntk Wideband O2 Module

Integrate the MSD Power Grid Dual NTK Wide Band O2 Module into your racing setup for precise air-fuel ratio (AFR) monitoring. Designed to interface with the Power Grid (PN 7730), this dual-channel AFR system ensures accurate readings, capable of measuring AFR as low as λ = 0.5 (7.35:1 Gasoline AFR equivalent). The AFR range is configurable using the MSDView software in conjunction with the Power Grid Controller. Boasting an excellent range, the NTK sensor provides reliable AFR monitoring, even on alcohol-fueled vehicles.

This Wide-Band O2 Sensor module offers a 0.5-4.5 VDC analog output proportional to the AFR, suitable for sending to a gauge or data acquisition system. The fully potted and sealed unit with Automotive-Grade connectors ensures durability, while the dual-color LED provides at-a-glance system status. With seamless integration as a plug-and-play Power Grid module, expansion to operate with a second sensor (MSD PN 2268) is possible. The module requires no setup or calibration, although Free Air Calibration is optional for added precision. For accurate backpressure-compensated AFR readings in turbocharged applications, consider adding the optional Exhaust Pressure Module (Part Number 7767).

Features:

• Plug-and-play Power Grid module
• Configurable AFR range with MSDView software
• Capable of measuring AFR as low as λ = 0.5
• Expandable to operate with a second sensor (MSD PN 2268)
• Fully potted and sealed unit with Automotive-Grade connectors
• 0.5-4.5V Analog Output Voltage for gauge or data acquisition
• LEDs for monitoring system operation and health
• High-speed data acquisition with Power Grid Controller (PN 7730)
• Backpressure-compensated AFR when used with optional Exhaust Pressure module
