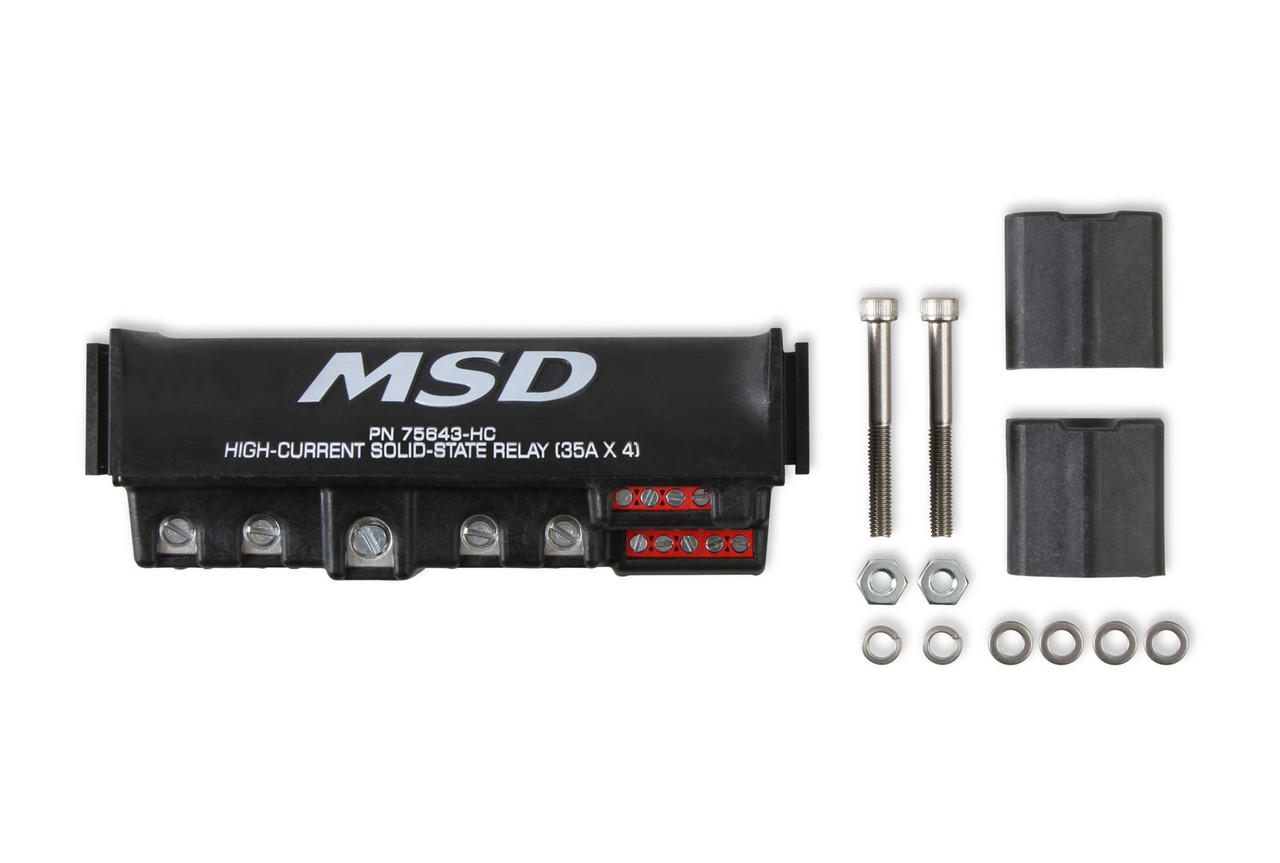

Streamline your wiring setup with the MSD Solid-State High Current Relay Block, a high-current module that replaces four standard relays and eliminates messy wiring. This module features four independent channels that can be activated using either power or ground. Each channel is capable of handling up to 35 Amps of continuous current, providing a combined total continuous current rating of 140 Amps. Additionally, it has Pulse Width Modulation (PWM) capability, allowing you to control the output with a rate of 15 hertz and a duty cycle of 50-90%. This versatile module can control electric fans, water pumps, nitrous solenoids, auxiliary lighting, and other electrical accessories that typically require relays.
LED status indicators ensure proper wiring and operation for each channel. The relay block incorporates built-in automatic over-temperature, short circuit, and overload protection, as well as a channel reset. It can be easily mounted using the supplied hardware and adjustable mounting tabs, which can be rotated 90° to accommodate various mounting locations. The compact and clean design simplifies your wiring project.
Features:
- Operates from 7-Volts to 20-Volt supply
- 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
- Combined total continuous current rating of 140 amps
- Channels can be run in parallel for devices requiring more than a 35 Amp single-channel rating
- Simplified installation with minimal wiring
- Over-temperature, short circuit, and overload protection
- Diagnostic LED indicators and status indicators
- Multiple mounting options
- Single wire activation by switching power or ground
- Available in Red or Black
- PWM signal capability with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%
