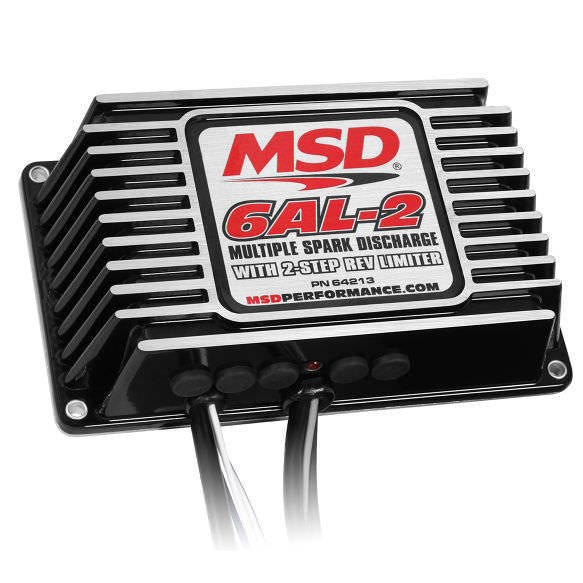

Exciting news from MSD! Introducing the cutting-edge 6AL-2, the next evolution in the 6-Series ignition controls. This innovative ignition control unit features a fresh design, advanced digital controls, and enhanced power, all neatly packaged in a sleek housing. At its core is a sophisticated micro-controller overseeing the integrated two-step rev limiter.
Encased in a durable cast aluminum housing, the 6AL-2 boasts a robust spark output, reaching an impressive 535 volts of primary voltage and delivering up to 135 millijoules of spark energy. The multiple sparks generated by the 6AL-2 linger in the cylinder for 20 degrees of crankshaft rotation, ensuring thorough combustion.
One standout feature is the dual rev limiters. The high-end overrev limiter provides protection, while the second limiter can be activated through a clutch or trans-brake for setting a launch limit, perfect for achieving a powerful start off the line. Adjustments are conveniently made using four rotary dials, allowing precise control in 100 rpm increments.
This state-of-the-art capacitive discharge ignition effortlessly connects to nearly any 12-volt negative ground distributor system, making it a versatile and high-performance choice.
Features:
- New housing design with reliable digital circuitry
- Built-in 2-Step rev control with adjustable rotary dials
- Increased output with up to 135mJ of spark energy
- Compatible with Hall-effect, points, and mag pickup triggers
- Efficiently managed by a digital processor for optimal performance
