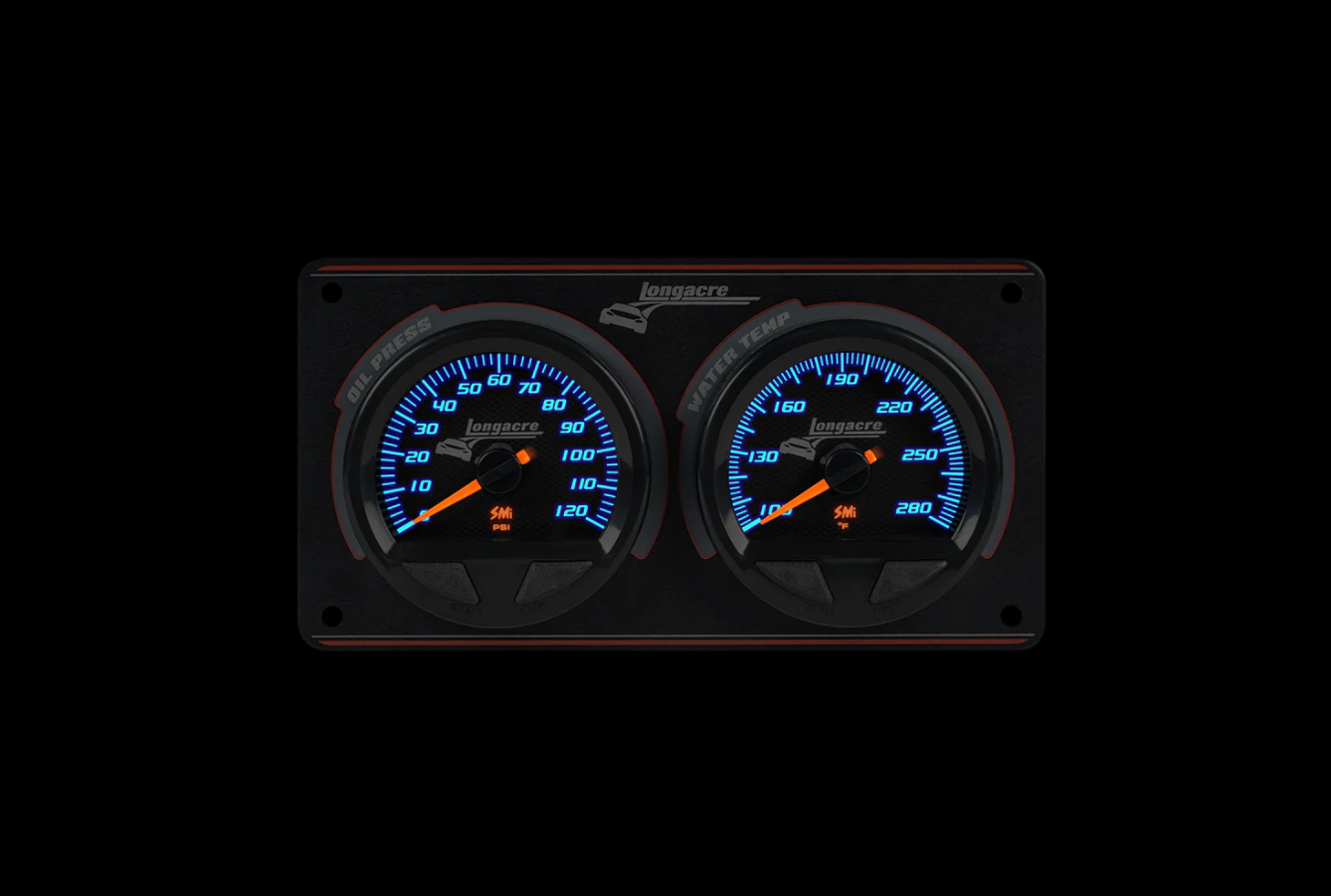

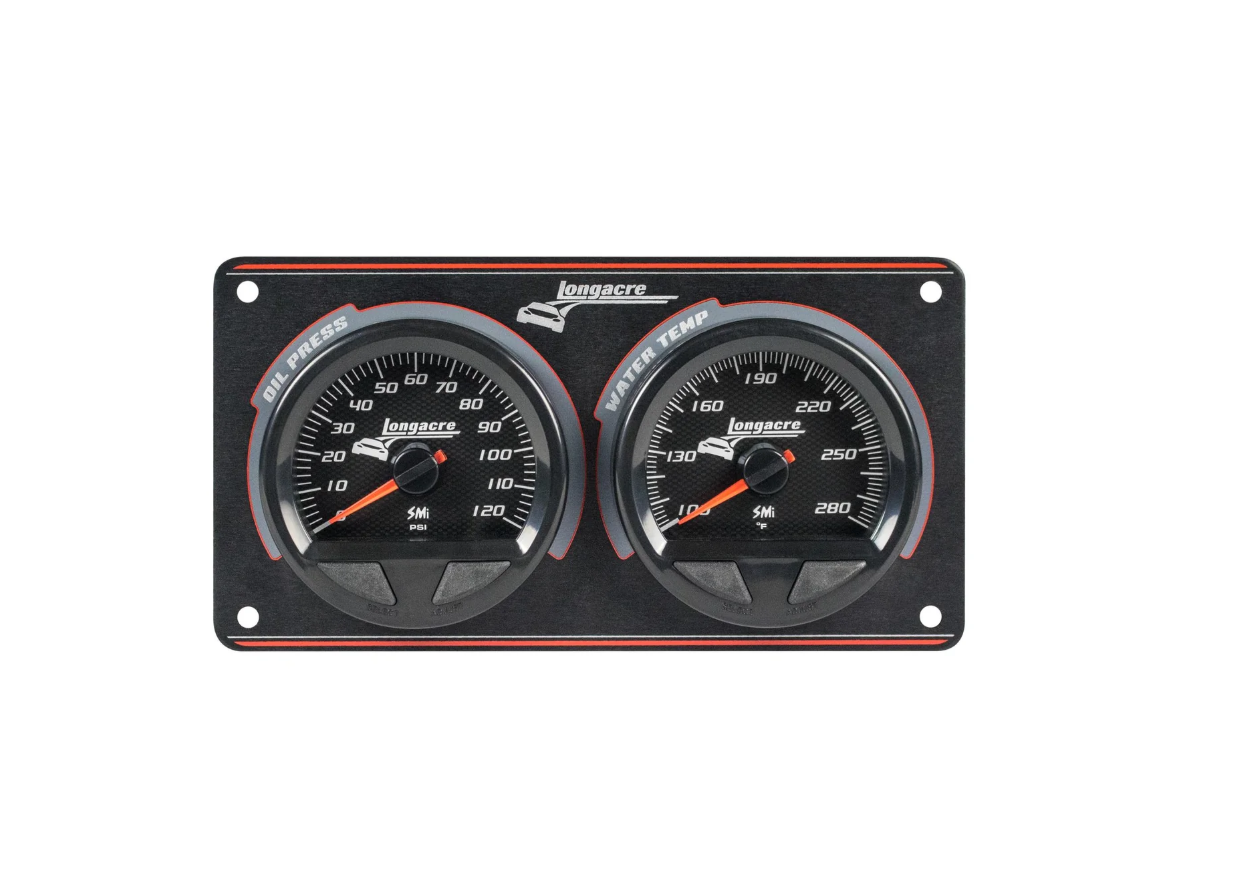

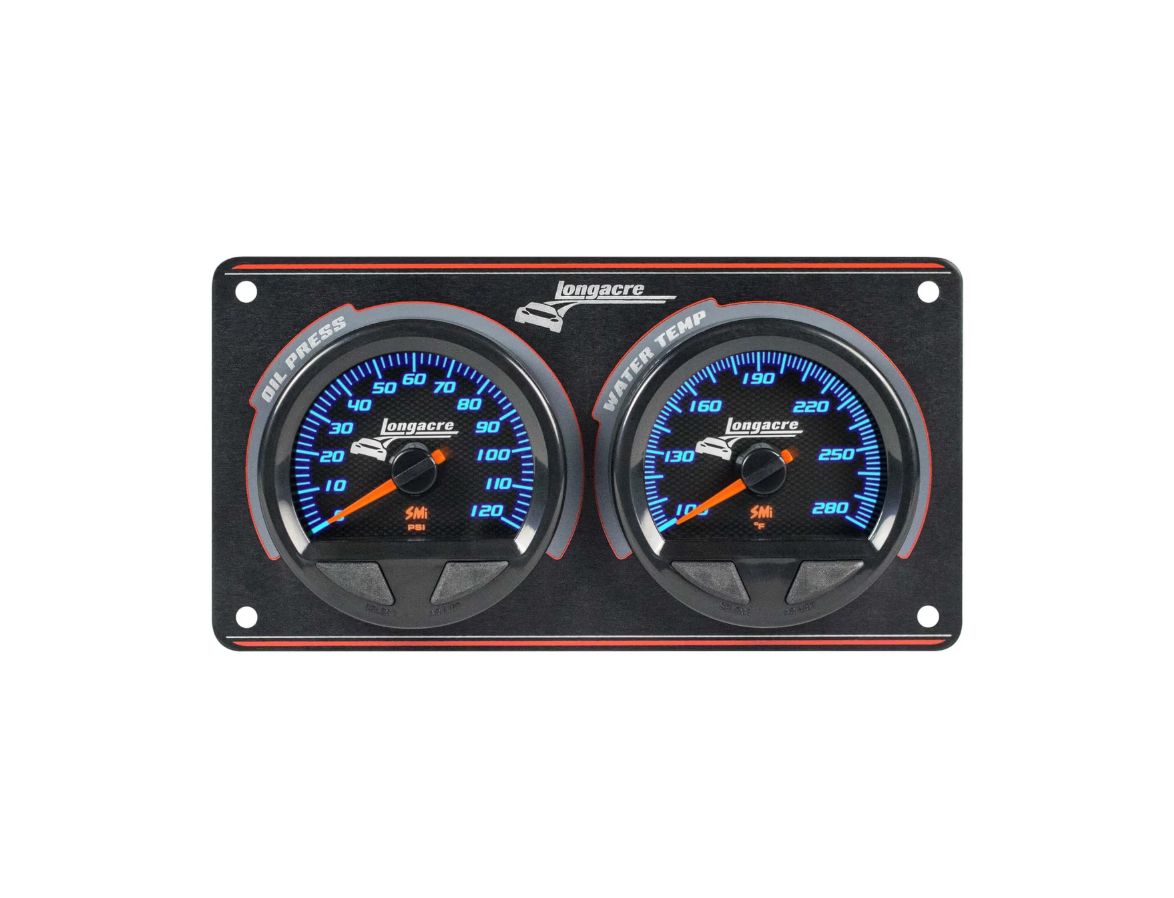

Longacre 52-44560 Elite Waterproof Gauge Panel 2 Gauge Oil Pressure/Water Temp

$346.99
SKU:
LON44560
MPN:
52-44560
Condition:
New
  • Free Ground Shipping

  • 30-Day Returns

  • Safe Payments

  • Top Tier Brands

The next generation in instrumentation has arrived. Longacre Racing products is proud to introduce the all-new SMi™ Elite Waterproof Gauges. Engineered for wet and dirty environments, the SMi™ Elite Waterproof Gauges provide the absolute best in waterproof sealing. These elite gauges provide the most precise measurements on the market with unmatched resistance to vibration, heat, and moisture. Manufactured with IP-66 certified methods to be waterproof; dust tight and safe against powerful water jets. Uses Firewall Mount 52-43540.

  • New waterproof design eliminates the need to remove gauges before you wash your car.
  • LED backlit numbers and illuminated pointers.
  • Custom set your warnings and brightness.
  • Backlight changes color based on the warning.
  • Panels are completely wired and ready for quick installation.
  • Many panel combinations available to suit your specific racing needs.
  • All sensors are included.
  • New 2-5/8” tachometer available with high rpm, average low rpm, and average high rpm recall.
  • New water pressure gauge option available.
  • Legal in most sanctioning bodies, including IMCA.
Specifications

Gauges

  • Brand:AccuTech™ SMi™
  • Style:Stepper Motor
  • Type:Electronic
  • Size:2 5/8" diameter
  • Face Color:Black
  • Bezel Color:Black
  • Pointer Color:Red LED Illuminated
  • Oil Pressure Included:Yes
  • Oil Pressure Range:0-100 psi
  • Oil Pressure Sensor Wiring:5' lead length
  • Oil Pressure Sensor Fitting:1/8" NPT
  • Oil Pressure Power Draw:61mA @ 12v
  • Water Temperature Included:Yes
  • Water Temperature Range:100º-280º F
  • Water Temperature Sensor Wiring:6' lead length
  • Water Temperature Sensor Fitting:1/2" NPT
  • Water Temperature Power Draw:62mA @ 12v
  • Oil Temperature Included:No
  • Fuel Pressure Included:No
  • Voltage Gauge Included:No
  • Tachometer Included:No
  • Gauge Backlights:Blue
  • Gauge Warning Lights:Yes
  • Run on 12v System:Yes
  • Run on 16v System:Yes

Panel:

  • Material:Aluminum
  • Finish:Black anodized
  • Gauge Panel Dimensions:7" x 3 5/8"
  • Sensors Included:Yes
  • Wiring Included:Yes
  • Pressure Sensor Adapter Included:No

Replacement Parts:

  • Pressure Sensor - 100 psi:PN 43520
  • Pressure Sensor QD 'Pigtail' Wire:PN 43530
  • Pressure Sensor Adapter:PN 43525
  • Temperature Sensor - 280° F:PN 43500
