The back side of these switches are completely sealed and weatherproofed with a tough, waterproof polymer coating. Keeps out dirt, dust and moisture that can turn a critical switch into a useless dead end connection, possibly putting you out of a race.

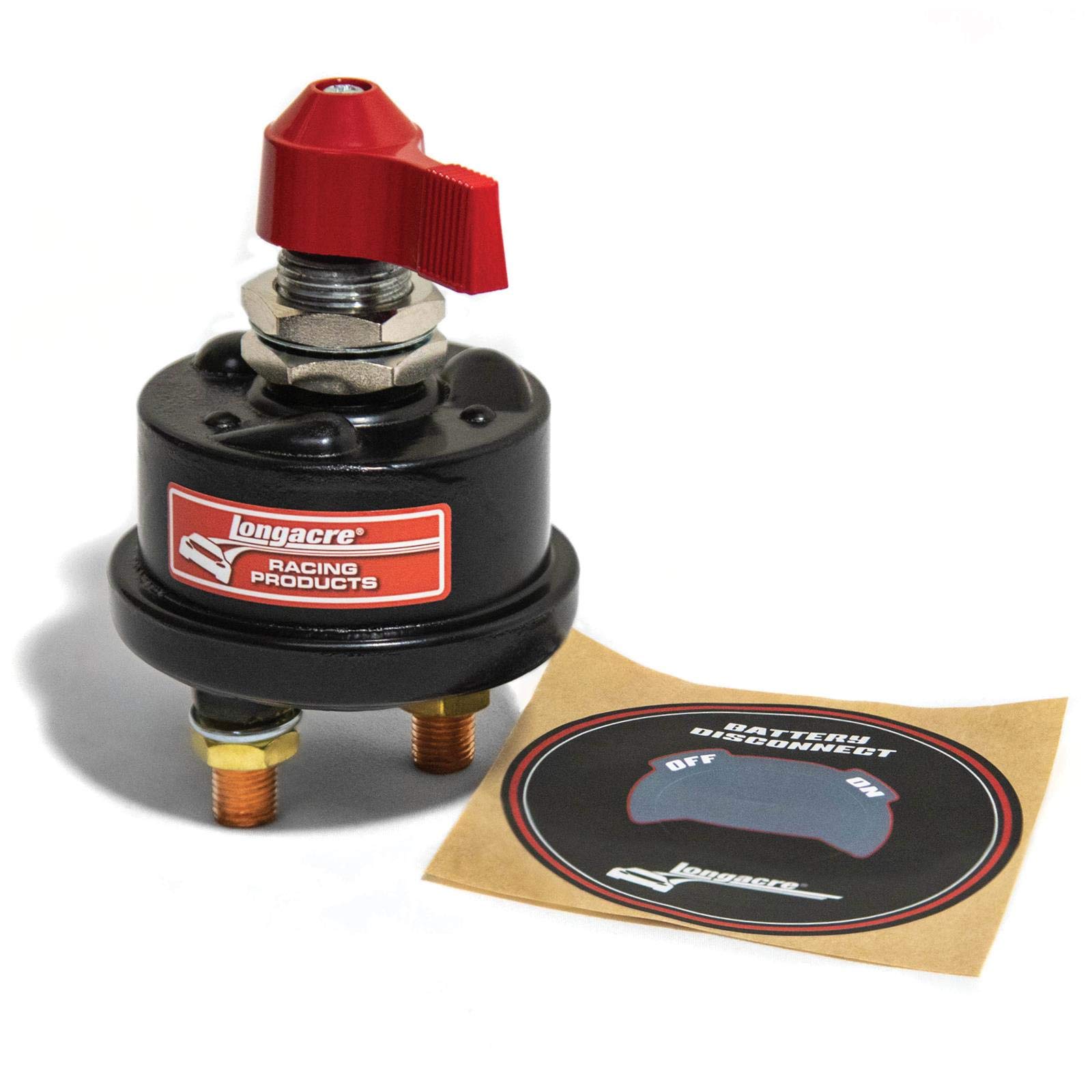

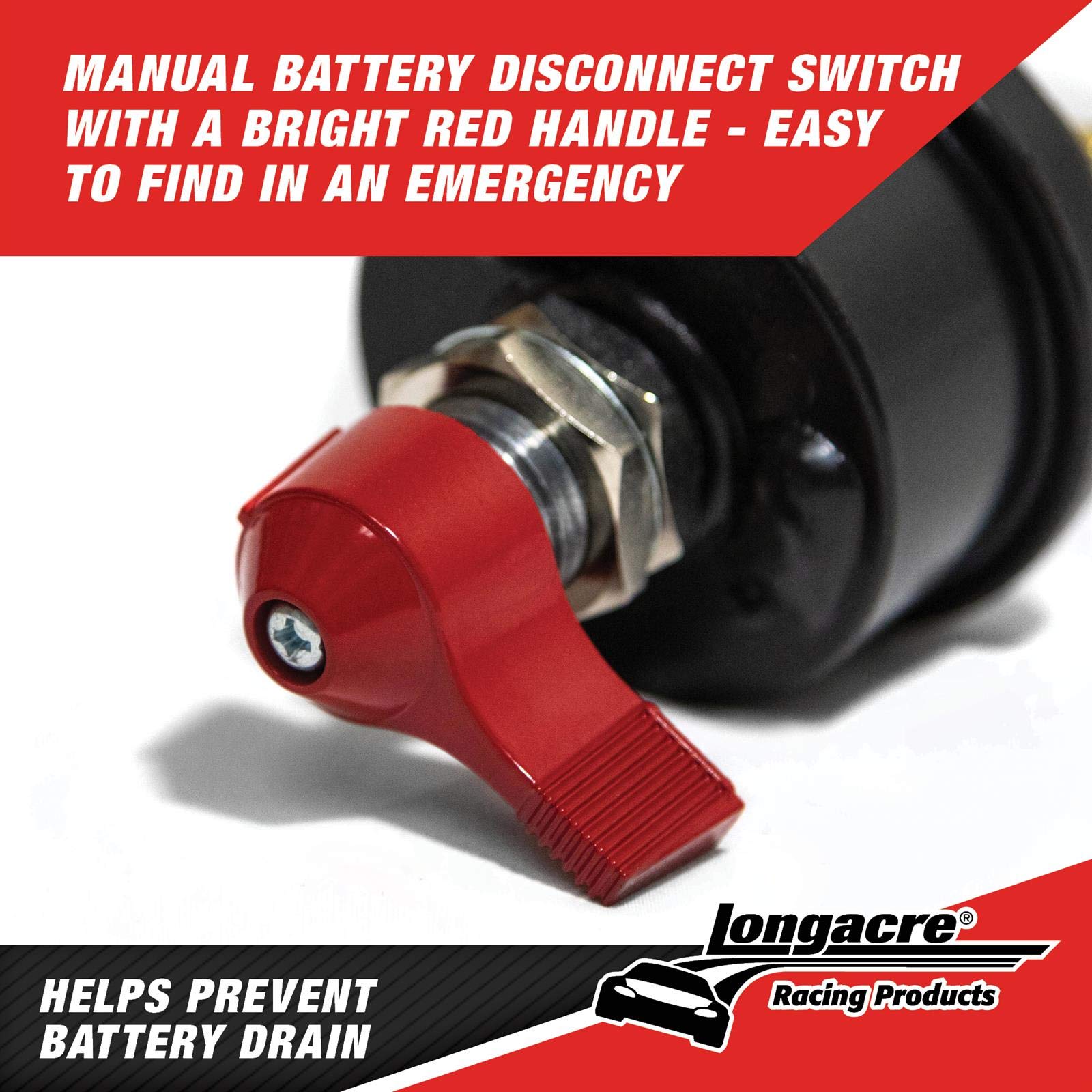

- Manual battery disconnect switch with a bright red handle
- Easier to find in an emergency
- Prevents battery drain

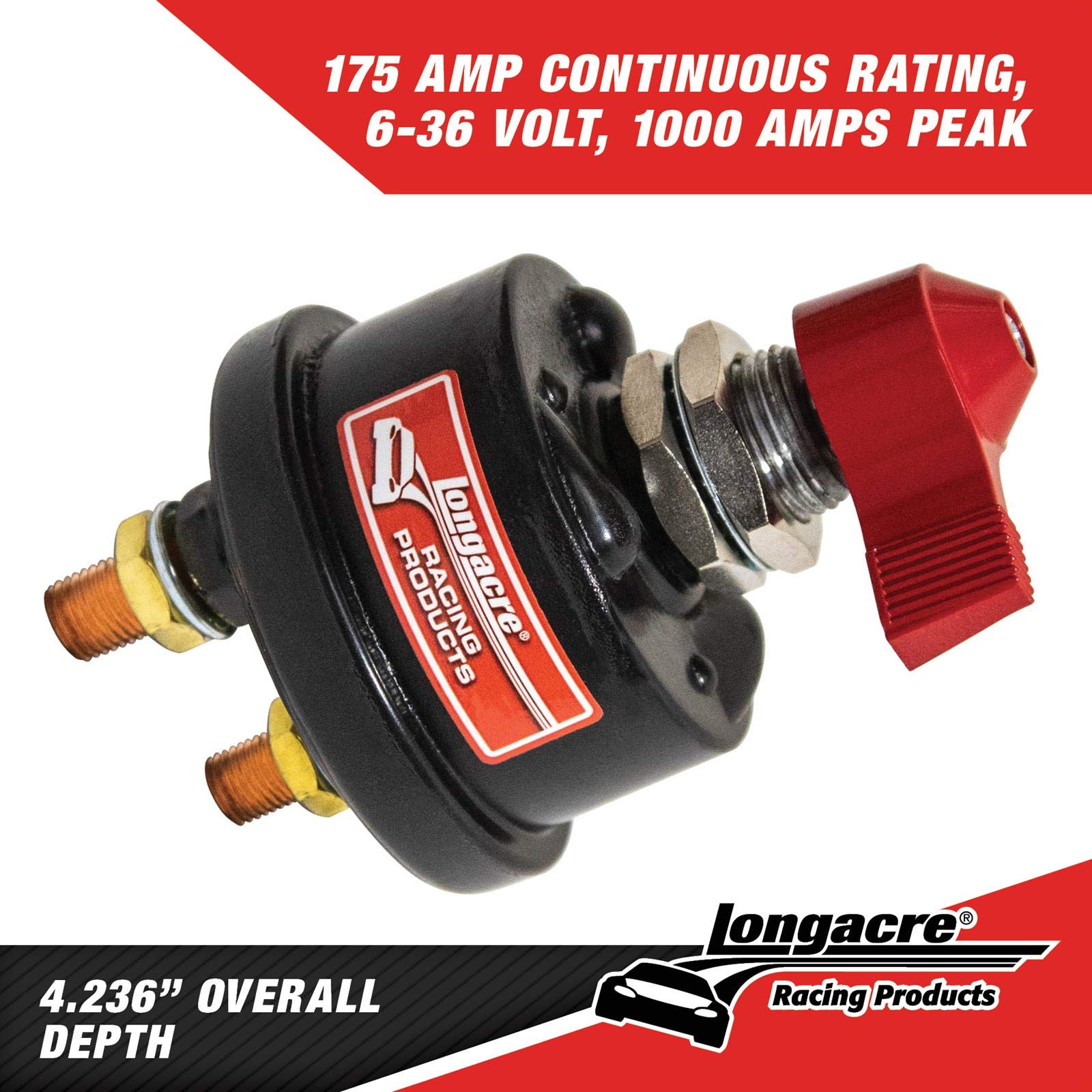

- 175 amp continuous rating, 6-36 volt, 1000 peak
(switch only - panel not included)
| Specifications | |
| Switch Activation: | Manual |
| Switch Actuation: | Rotary |
| Voltage Rating: | 6-36 volts |
| Continuous Amperage Rating: | 175 amps |
| Peak Amperage Rating: | 1000 amps |
| Alternator Disconnect Included: | No |
| Weatherproof: | Yes |
| Mounting Panel/Bracket Included: | No |

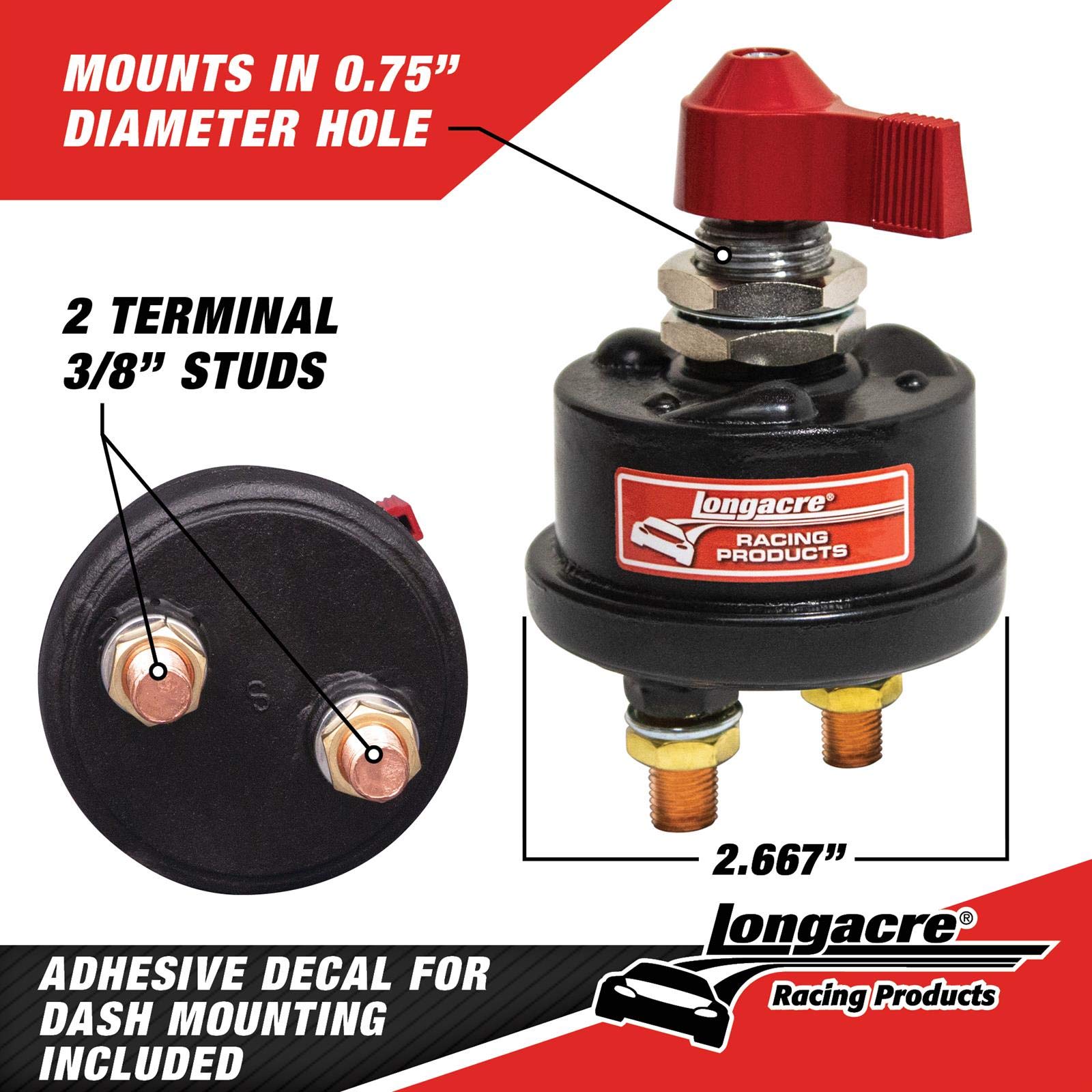

| Mounting Hole Size: | 0.750" |
| Body Diameter (At largest Point): | 2.667" |
| Body Depth (From end of threads to lock washer): | 3.000" |
| Overall Depth: | 4.236" |
