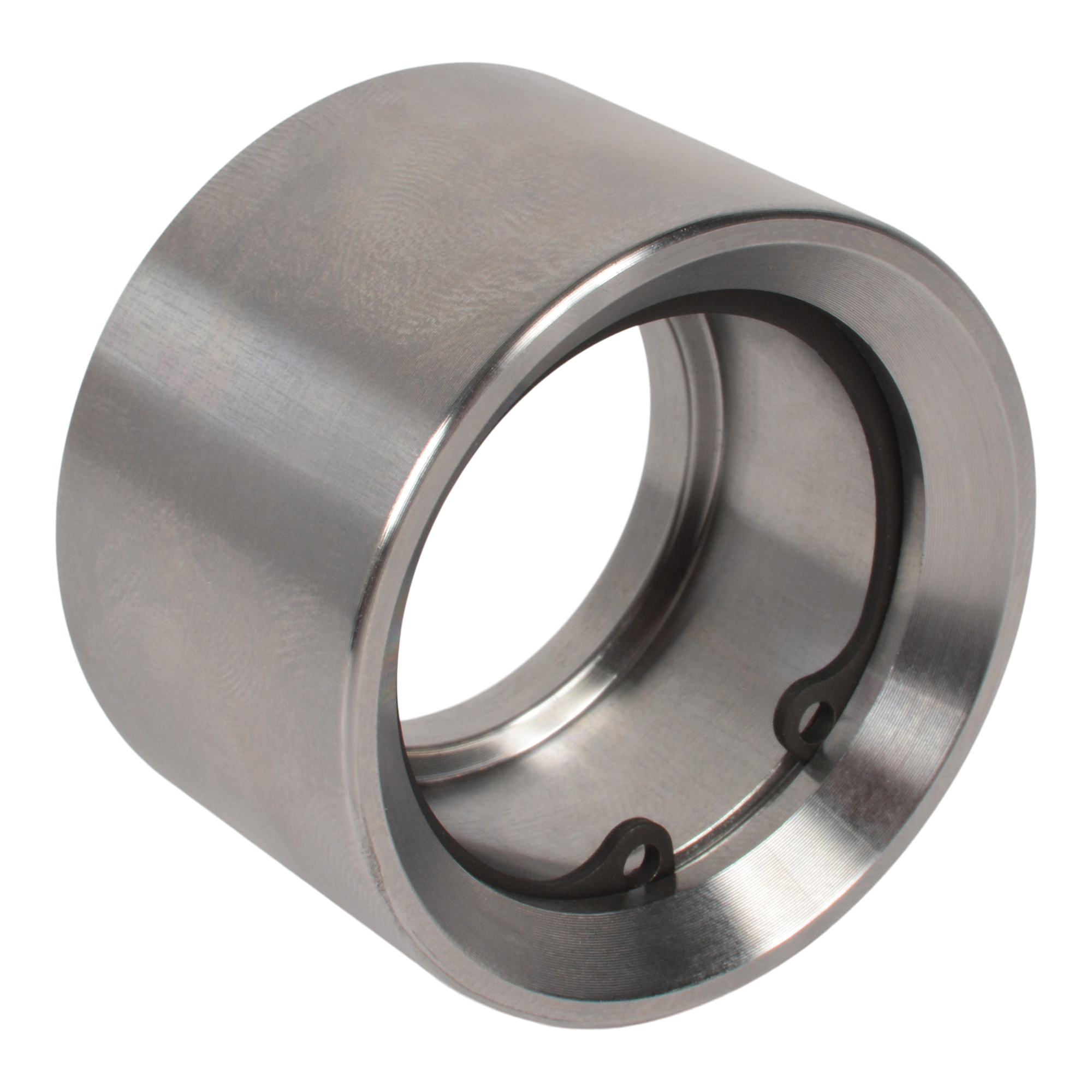

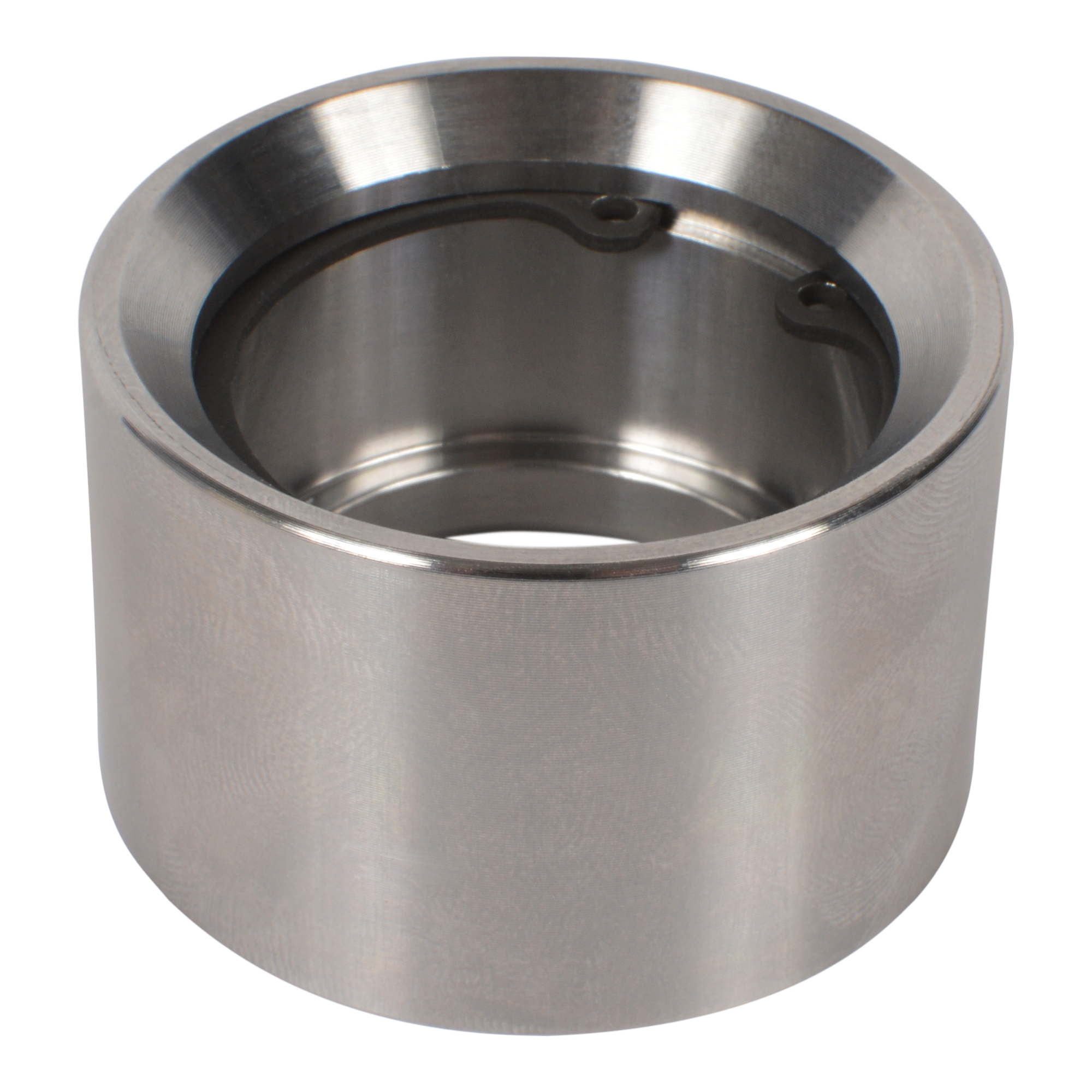

The 15016 housing is specifically designed to accommodate High-Misalignment spacers. Unlike standard spherical bearing housings, this unit features a wider internal clearance and a specific cup depth that allows the bearing to pivot at much steeper angles. This is critical in long-travel setups where a standard rod end or ball joint would "max out" and snap under the pressure of full suspension droop or compression.
Detailed Technical Specifications
1. Extreme Articulation Geometry
-
Increased Pivot Range: Optimized to allow the uniball to tilt further than standard housings, ensuring the suspension can cycle through 20" or more of travel without mechanical interference.
-
Precision Bore: CNC-machined to provide an exact interference fit for the uniball bearing, preventing "clunking" or movement within the housing under heavy load.
-

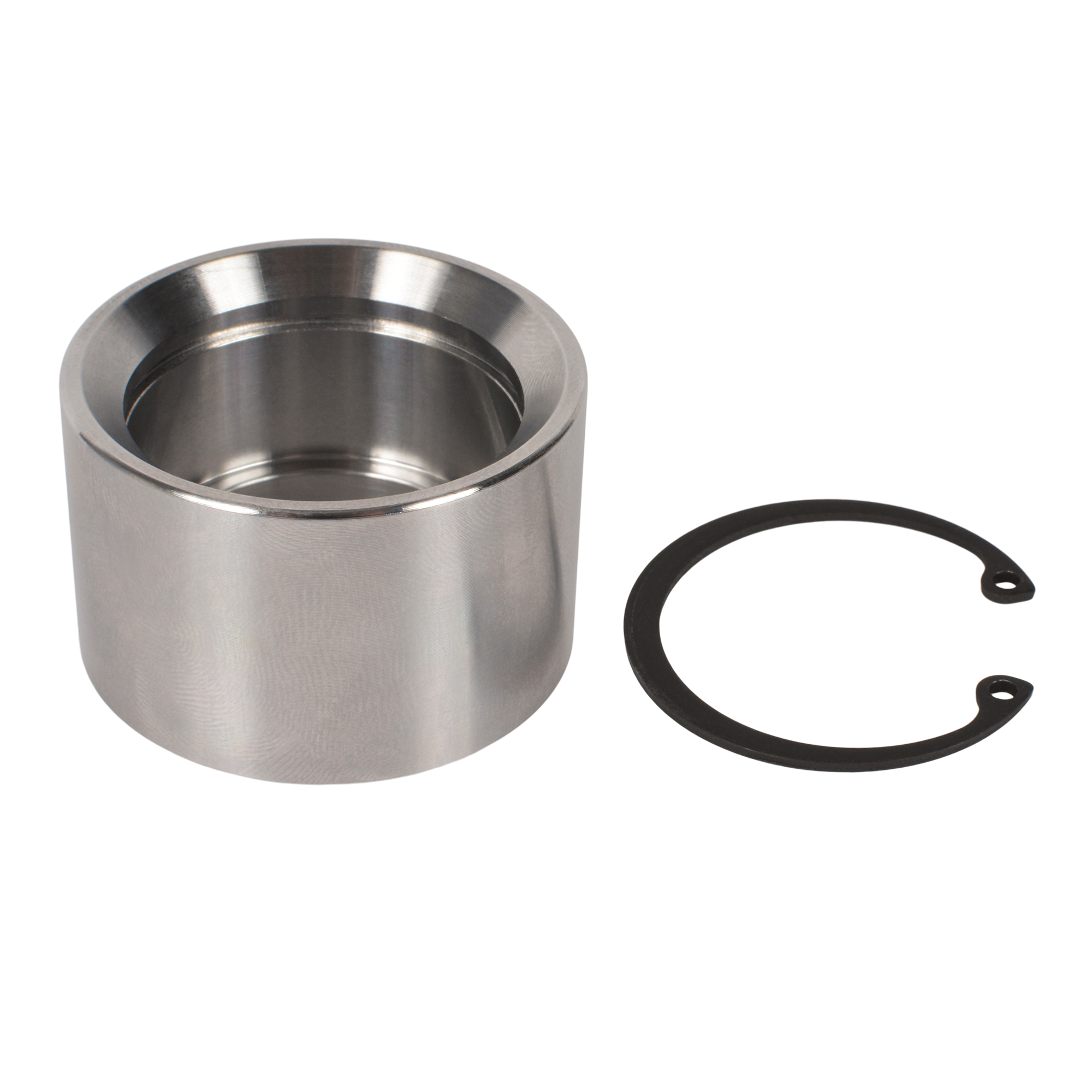

Snap-Ring Groove: Features a precision-machined groove for a heavy-duty snap ring (usually sold with the bearing), ensuring the uniball remains safely captured in the housing.
2. Fabricator-Friendly Construction
-
Premium Weldability: Machined from high-quality steel that is compatible with both MIG and TIG welding processes, allowing for a strong, reliable bond to chromoly or mild steel tubing.
-
Massive Load Capacity: The thick-wall design dissipates heat during the welding process to prevent warping and provides the structural mass needed to handle the "landing" forces of off-road racing.
-
Beveled Edges: Typically features a pre-beveled edge to allow for deeper weld penetration and a cleaner finish on the suspension arm.
3. Performance & Safety
-
Strength Over Ball Joints: Uniballs are significantly stronger than traditional tapered ball joints, making this housing the go-to choice for vehicles that see extreme vertical impacts.
-
Serviceable Design: Allows for easy replacement of the bearing. When the uniball wears out from dirt and grit, you simply remove the snap ring and press in a new one—the 15016 housing stays on the car.
