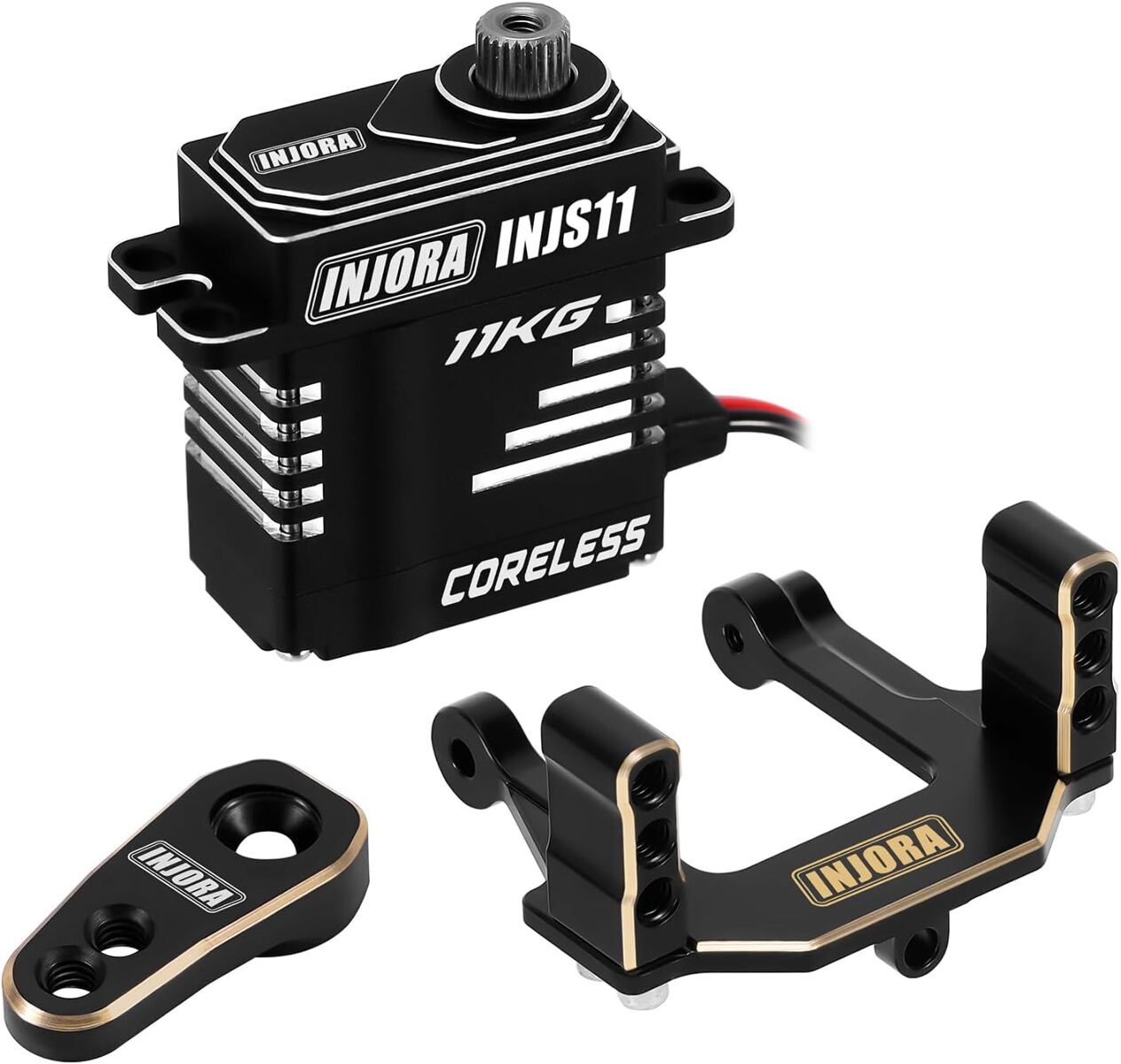

INJORA High Voltage Large Torque Metal Gear Digital Micro Coreless Servo for 1/18 RC Crawler Redcat Ascent-18
Note:
- Servo Mount: Fits INJORA INJS11 Servo. For use with Ascent-18 stock servo (M2 holes), enlarge mounting holes to M2.5.
- Servo Horn: Compatible only with INJORA INJS11 Servo, not compatible with stock servo.
Compatible with:
- 1/18 Redcat Ascent-18
- 1/18 Redcat Ascent-18 Brushless
- 1/18 Redcat Ascent-18 Scout II
- 1/18 Redcat Ascent-18 Scout II Brushless
- 1/18 Redcat Ascent-18 Apex
Features:

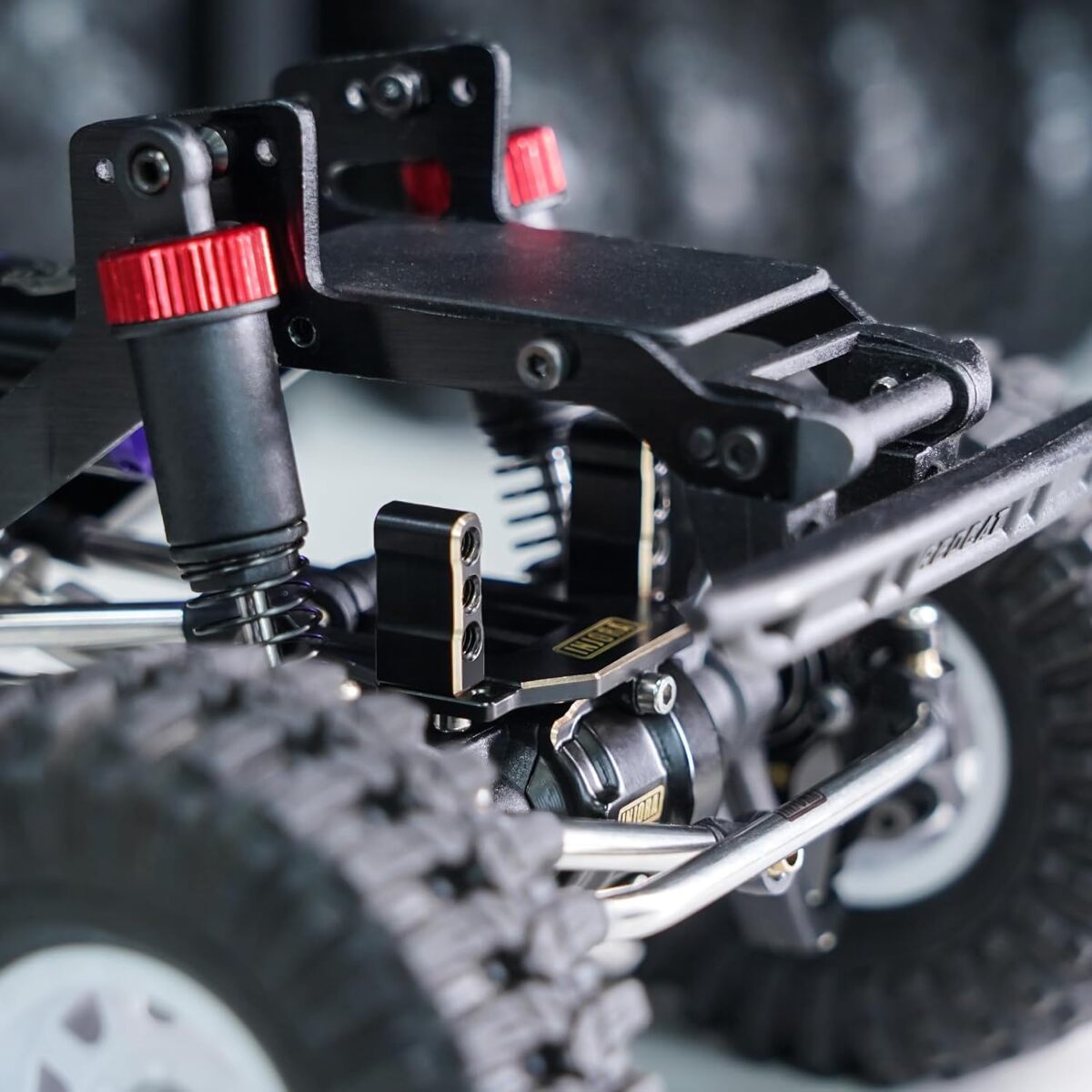

- Two-position adjustable designed servo mount
- Provide extra weight and lower the centre of gravity
- Easy to install, just replace the stock plastic parts
- High quality CNC machined brass, corrosion resistant and durable
- Adds stylish, unique and premium touch to your vehicle's appearance

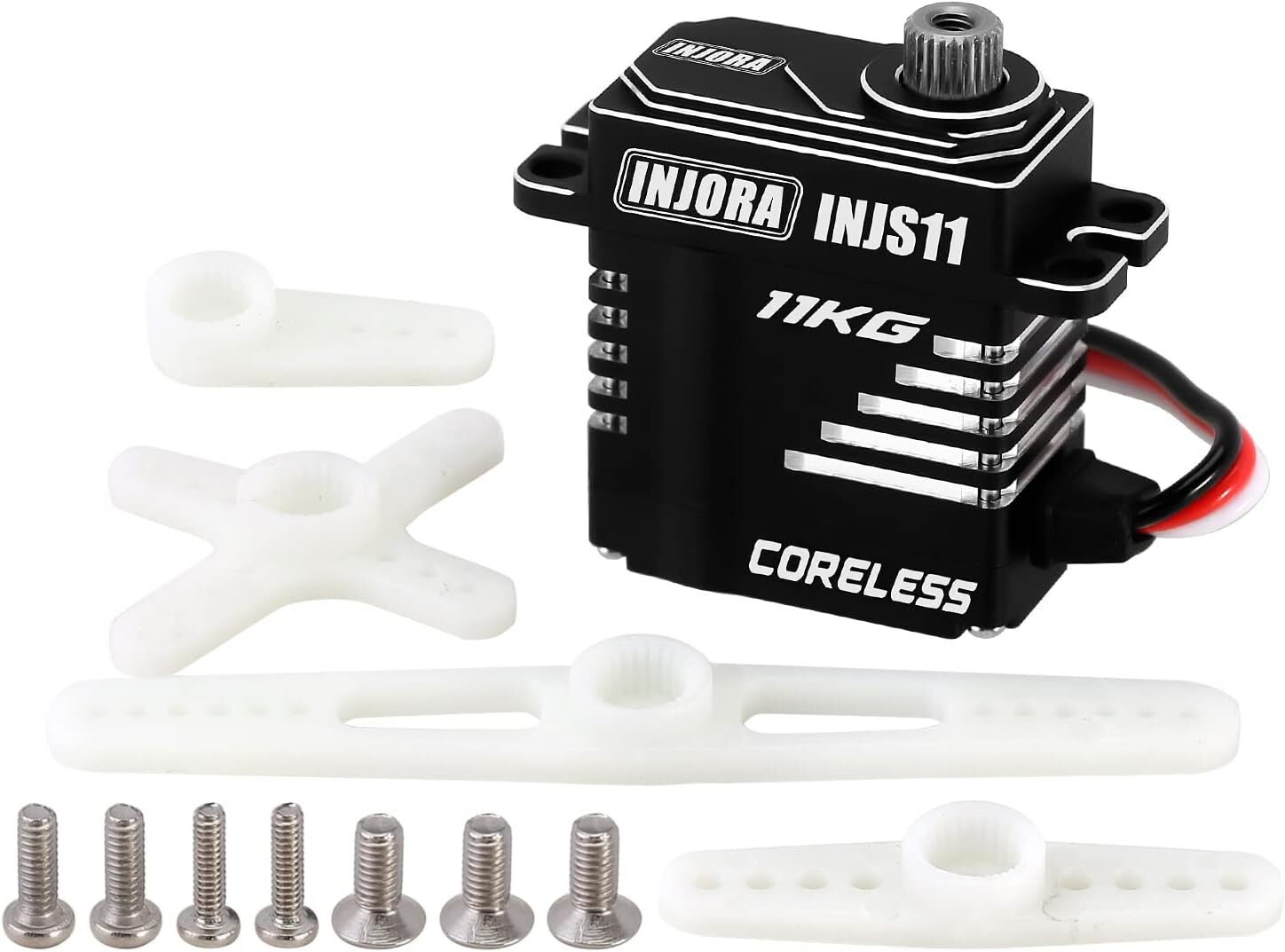

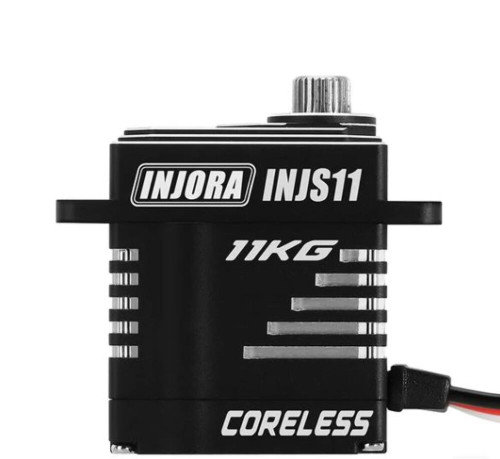

Servo Specifications:
- Part Number: INJS11
- Operating Voltage: 6V-8.4V
- Torque(6V): 8kg-cm/111oz-in
- Speed(6V): 0.106"/60°
- Torque(7.4V): 9.5kg-cm/132oz-in
- Speed(7.4V): 0.085"/60°
- Torque(8.4V): 11kg-cm/153oz-in
- Speed(8.4V): 0.074"/60°
- RC Angle: 90°±5
- 500-2500μs Angle: 180°± 5
- Motor: Coreless
- Gears: Stainless Steel
- Spline: Φ4.9 Mini 25T
- Bearing: 2BB
- Size: 32*12*27mm
- Weight: 21g

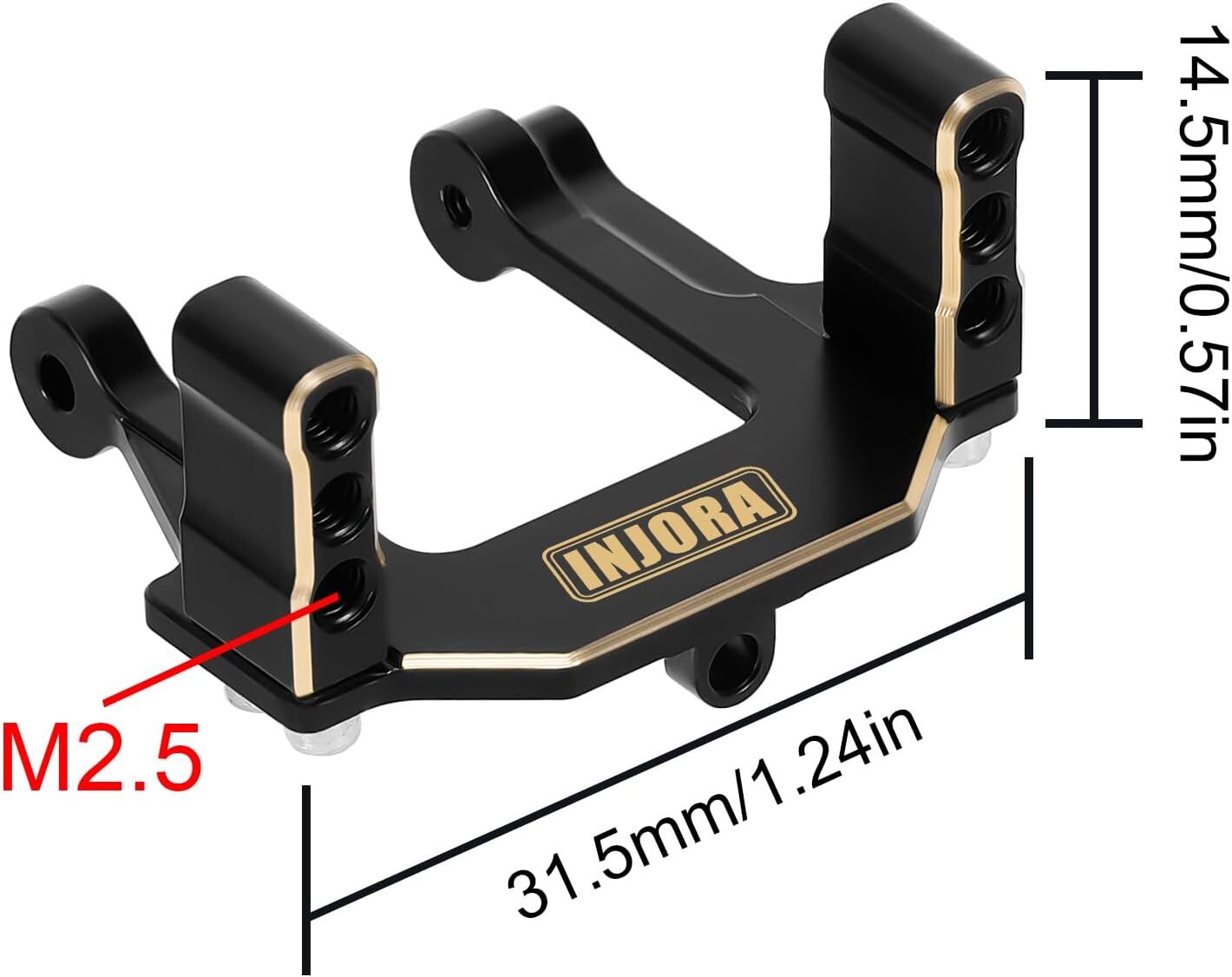

Servo Mount Specifications:
- Part Number: ASC18-13
- Material: Brass
- Weight: 10g (0.022lb)

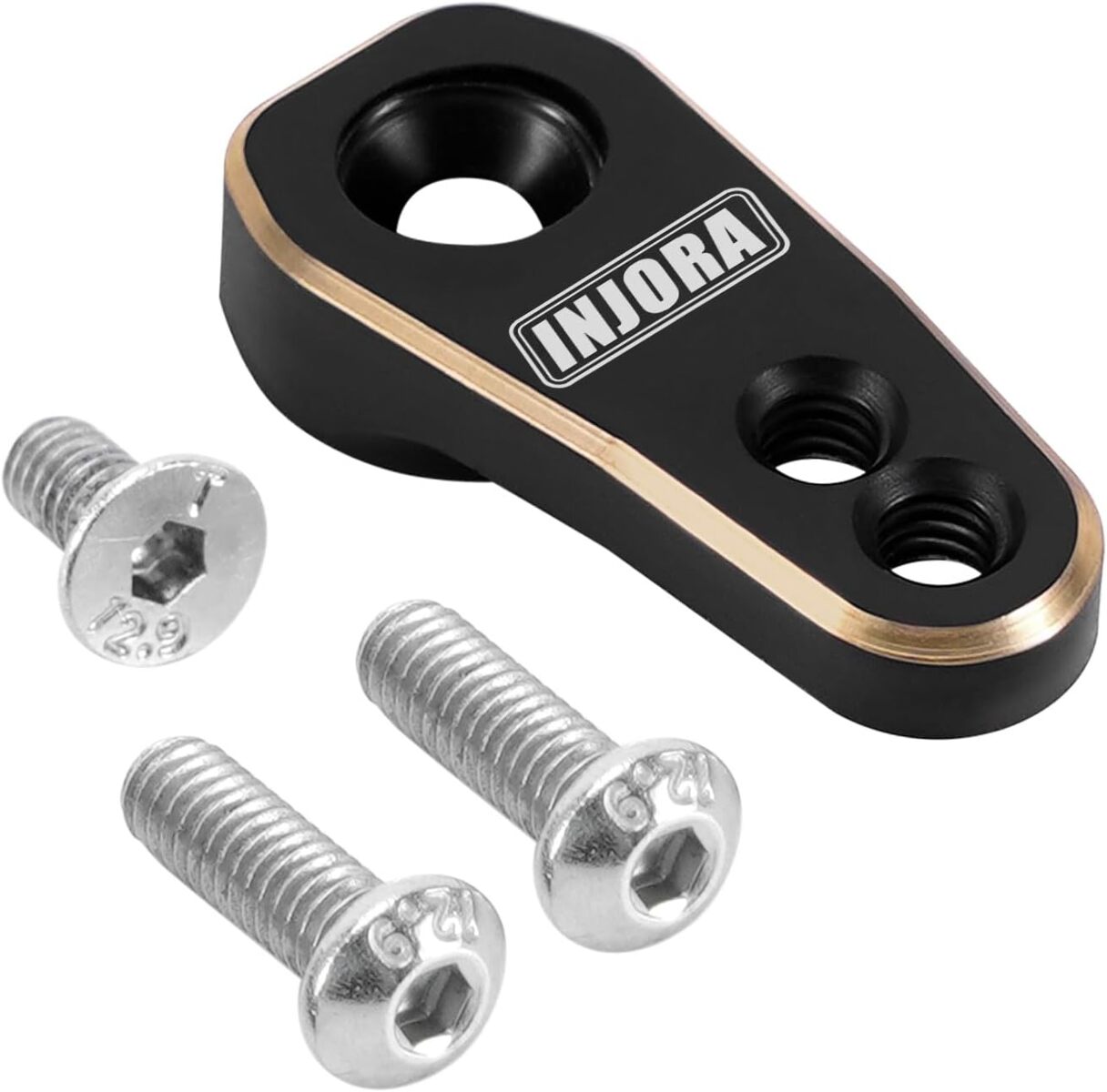

Servo Horn Specifications:
- Material: Brass
- Weight: 2.5g
- Screw hole size: M2
1 Year
