Holley's EFI Crank Trigger Kit is meticulously designed to deliver precise crank speed and position signals to Holley EFI systems, particularly in high-horsepower racing scenarios. Unlike standard 4-Magnet, MSD "style" Crank triggers that measure crank position every 45 degrees, this kit provides a more detailed measurement every 10 degrees. It is specifically crafted for early model BBC Chevy applications utilizing a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.
Key Features:

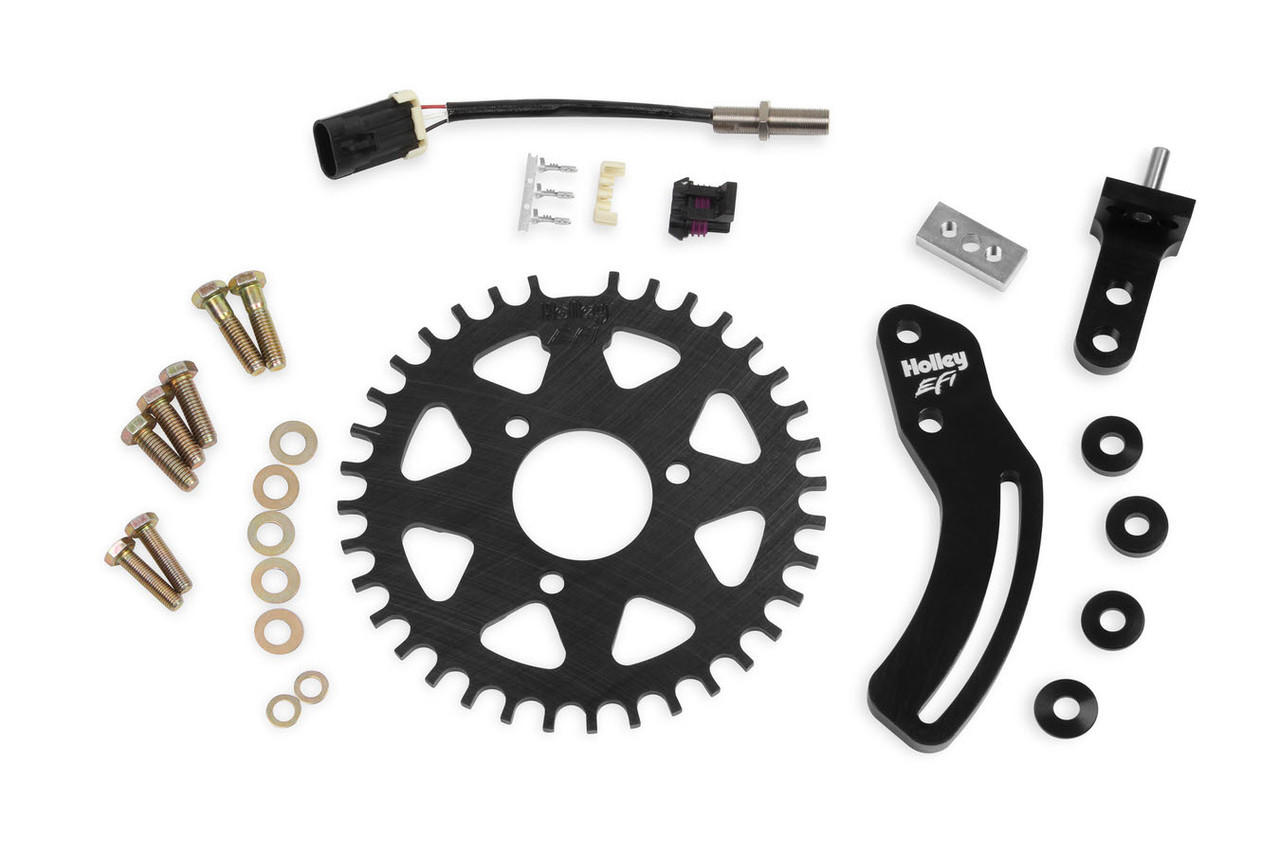

- 8” diameter, 1/4” thick billet steel, 36-1 tooth crank wheel with a Black Zinc Oxide finish for exceptional corrosion resistance and aesthetic appeal.
- Crank wheel centers off the balancer’s hub, eliminating the need for a centering ring.
- All billet, 6061-T6 aluminum sensor mounting brackets with a "bright-dipped" black anodized finish and a Laser-etched Holley EFI logo.
- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for precise gap adjustment.
- All Grade 8 and Mil. Spec mounting hardware included.
