Holley Standalone Digital Dash Kit

Are you in search of an affordable and versatile dash solution for your vehicle? Look no further, as Holley introduces a full-color touch screen dash equipped with sensors to monitor basic engine parameters and a GPS speedometer – all bundled in a cost-effective package!

Holley's standalone digital dash boasts features like a weather-resistant aluminum housing for durability, various gauge and indicator selections, customizable screen and gauge layouts, and a virtual switch panel, among others. With an integrated 3-axis accelerometer and data-logging capabilities, this dash is suitable for a range of vehicles, from JR dragsters to Sportsman racing, daily drivers, or show-winning roadsters.

Features:

• Compact and customizable dash suitable for diverse applications.

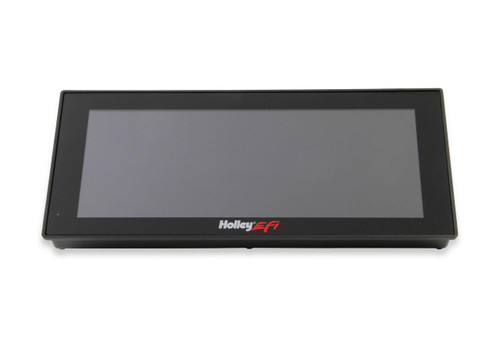

• 7” low glare, high brightness, high contrast, full-color touch screen for easy viewing even in bright sunlight.
• 800x480 resolution with auto brightness and dimming.
• Operating voltage range: min 8V - 20V.
• USB GPS included for Speedometer display with a magnetic base for quick and clean installation.
• Weather-resistant aluminum housing with flexible mounting options.
• Completely customizable layouts with multiple default configurations to expedite setup.
• Multiple gauge and indicator types with limitless customization options.
• Quick toggling between multiple active screens (tune, warm-up, race, drive, etc.).
• Virtual Switch Panel eliminating the need for physical switches, with 2 switched ground outputs for triggering an external relay.
• Maintains gauge customization flexibility as the EFI dash but is now compatible with any vehicle.
• Powerful data log software for in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3-axis accelerometer and USB GPS – no need for separate data logging boxes.
• Various additional sensors available, including fuel pressure, nitrous pressure, boost, with more to come.
• Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution.
• User-definable warnings for any input.
• Configurable progressive shift lights and light bar.
• Expandable internal storage on micro SD card.
• Free Software and Firmware upgrades, ensuring a future-proof display solution.

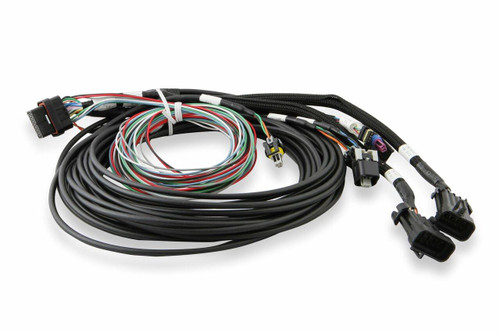

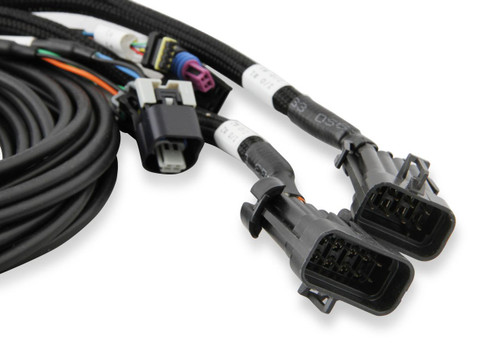

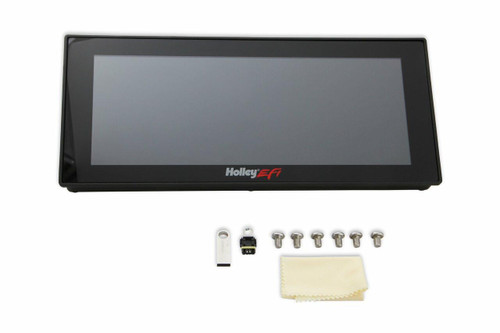

• Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS.
