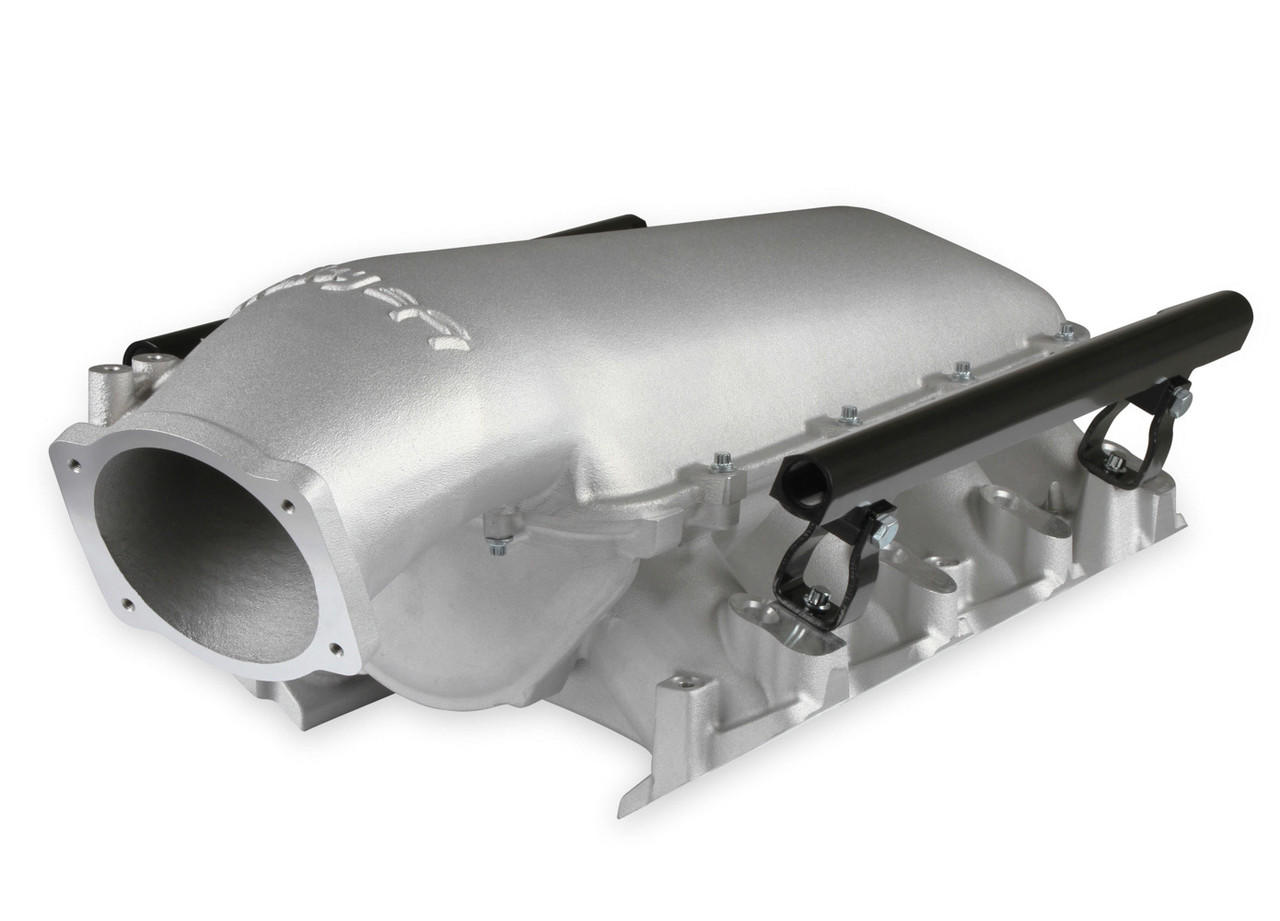

The Holley LS3 Lo-Ram intake manifold kits are engineered for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These versatile intake manifolds are compatible with both OE and aftermarket cylinder heads. Specifically designed for forced induction (supercharged or turbocharged) engine applications, these kits are optimized for the 105mm throttle body, such as part number 112-581 or similar models.
The base intake manifold is crafted with a low profile, facilitating the integration of a plenum-mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options, providing flexibility for various configurations. The LS3 Lo-Ram kits are available in both as-cast satin and black power-coat finishes.
Key Features:
- Designed for GM LS Gen III and IV engines with LS3/L92 cylinder heads
- Engineered for forced induction applications with peak power at 7000-8000 rpm
- Modular design with included plenum entry for customization
- Low height design for accommodating a plenum-mounted air-to-water intercooler in top-feed configuration
- High volume fuel rails suitable for eight and sixteen injector configurations
- Mounting hardware included with 3/4-16 O-ring ports (8 AN)
