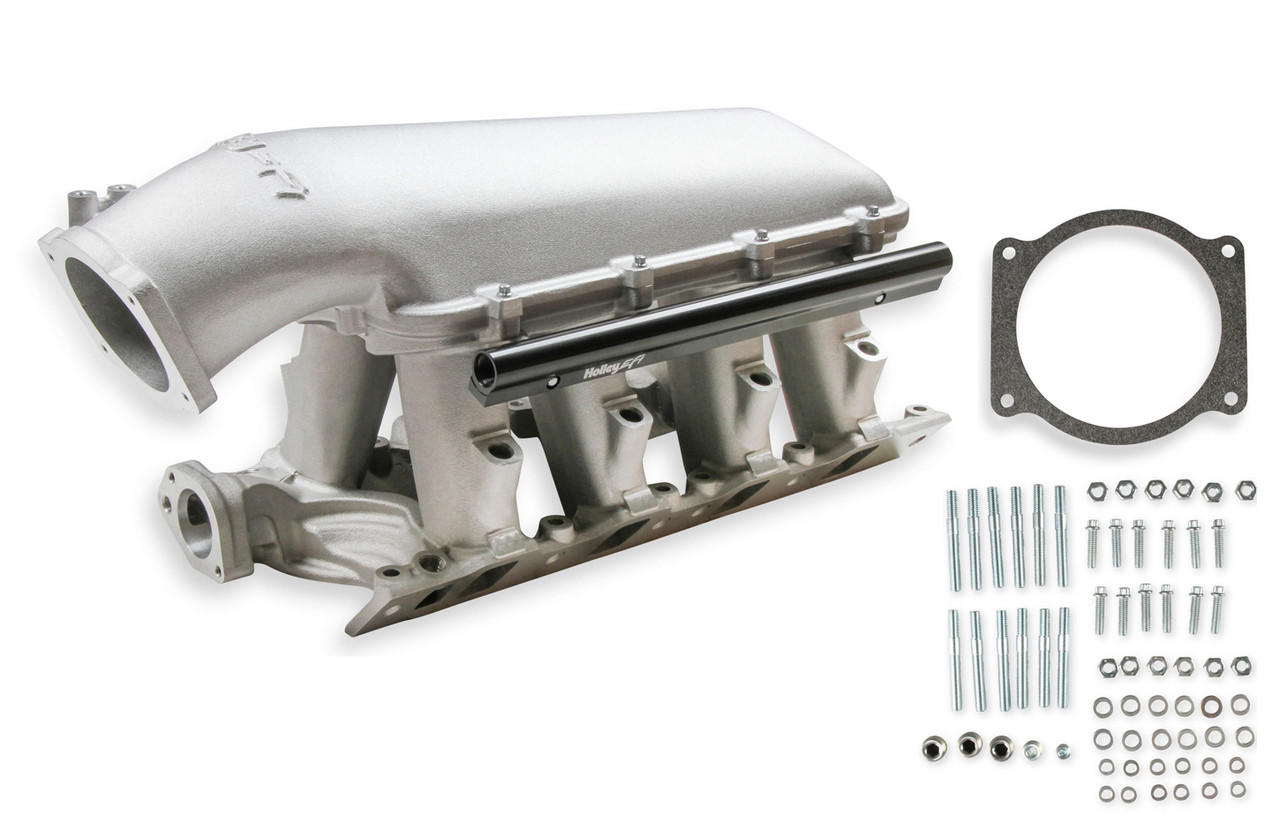

The EFI Hi-Ram manifold line introduces a new offering for the 8.2" SBF Ford application, featuring a 105MM LS throttle body flange top. Designed for an 8.2" deck height, this manifold boasts a runner length and tapered cross-section crafted for exceptional performance across a diverse range of engine configurations. The water crossover passage has undergone meticulous redesign to accommodate distributor phasing, ensuring optimal functionality.
Precision-machined EFI fuel rails with -8AN O-ring fittings provide ample passages for high fuel flows, effectively dampening pressure pulsations in the fuel system. Constructed from cast aluminum, the manifold combines durability with aggressive race-bred styling, making it a standout choice for applications such as drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, and street-rod applications.
Note: The use of a low-profile distributor is essential with this manifold. Sniper Hyperspark version #565-322 and Holley EFI Dual Sync #565-211 are available options.
Features:
- EFI fuel rails machined for -8AN O-ring fittings with passages for high fuel flows
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold designed for an 8.2" SBF deck height
- Available to work with 105MM throttle bodies
