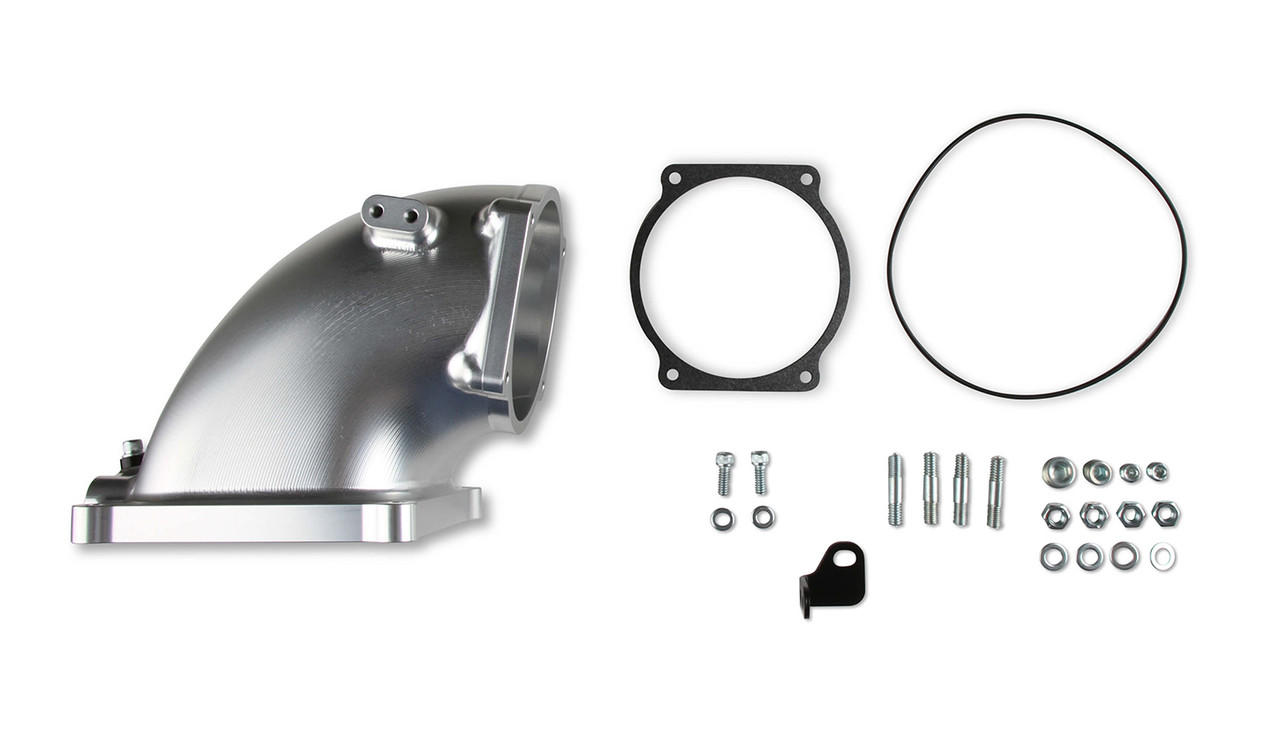

These precision-machined billet aluminum EFI intake elbows enable the installation of GM LS throttle bodies on any intake manifold with a 4500 mounting flange. Our design ensures an optimized transition from the throttle body to the intake plenum, maximizing airflow and distribution. The 4500 flange pattern, along with dual throttle cable mounting bracket bosses, allows flexible mounting options—forward, sideways, or rearward—for both the elbow and throttle body, and it includes the throttle bracket.
Key Features:
- Fits GM LS Throttle Bodies
- 105mm Throttle Body Opening with a 100° Mounting Angle
- Compatible with Intakes featuring a 4500 Flange, utilizing the included o-ring for sealing
- Square 4500 flange pattern allows versatile Throttle Body Mounting—Forward, Sideways, or Rearward
- LS3 Style MAP Sensor Mounting
- (4) vacuum ports, MAP sensor port,
- (2) Throttle Linkage Mounting Bosses
- Machined Billet Finish
- Overall Height of 6.38”
