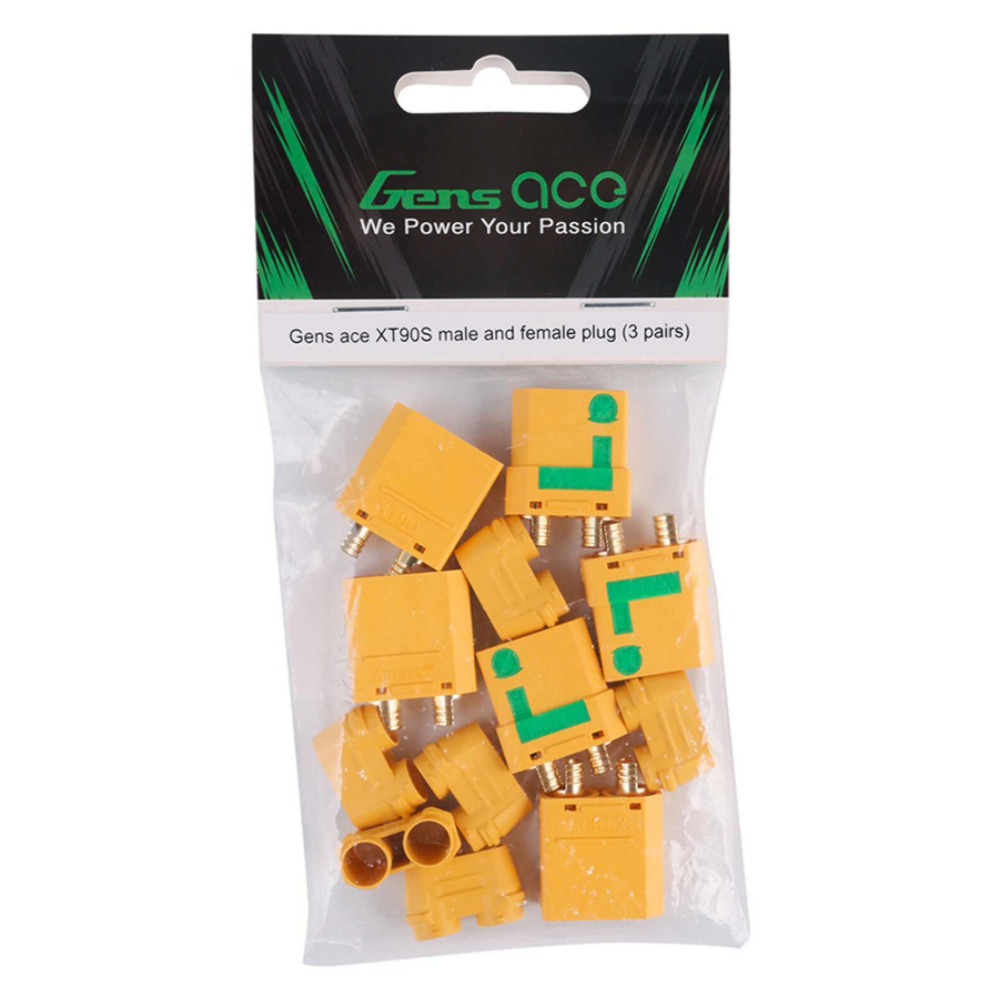

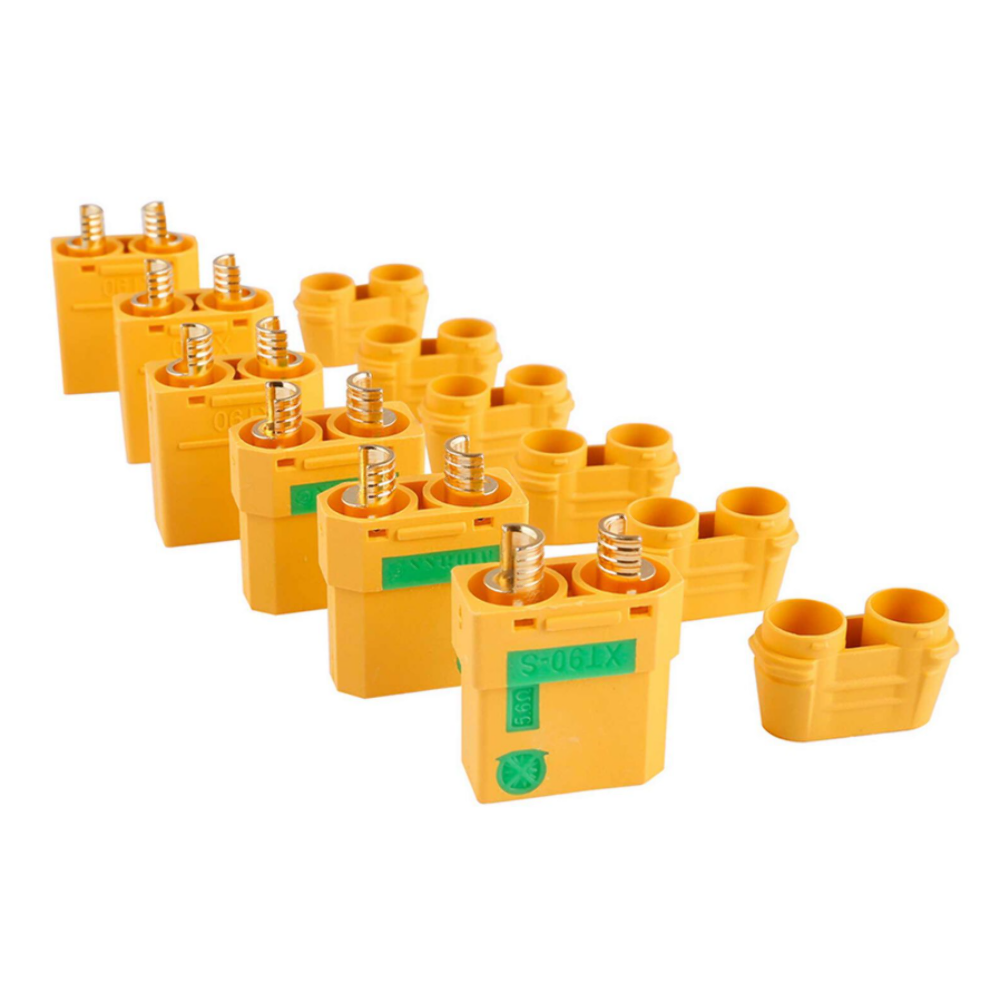

Eliminate the terrifying "spark" when plugging in your high-voltage batteries with these genuine XT90S Anti-Spark Connectors from Gens Ace. This set includes 3 complete pairs (Male and Female), making it the perfect upgrade for 6S, 8S, and 12S LiPo setups.
High-voltage systems naturally create a large electrical arc when the battery is first connected to the ESC. This arc acts like a mini-welder, pitting your connector contacts and potentially damaging the capacitors on your speed controller over time. The XT90S features a built-in resistor design that safely suppresses this surge, protecting your electronics and ensuring a solid, clean connection every time.
Key Features
-
Anti-Spark Technology: The female connector features a specialized two-stage signal pin with an integrated resistor. When you plug it in, the resistor engages first to charge the ESC capacitors gently, preventing the dangerous initial spark.
-
High Current Handling: Capable of sustaining 90 Amps of continuous current (and significantly higher bursts), making them ideal for large-scale RCs, heavy-lift drones, and high-performance jets.
-
High-Temp Housing: Molded from durable Nylon capable of withstanding high heat without melting or deforming during soldering or heavy use.
-
Gold-Plated Contacts: Uses heavy-duty 4.5mm gold-plated banana plugs for minimal resistance and maximum power transfer.
-
Protective End Caps: Includes snap-on rear wire covers that insulate the solder joints, eliminating the need for messy heat shrink tubing.
Specifications
-
Connector Type: XT90S (Anti-Spark)
-
Amperage Rating: 90A Continuous / 120A+ Peak
-
Wire Compatibility: Fits up to 8 AWG silicone wire
-
Contact Material: Gold Plated Brass
-

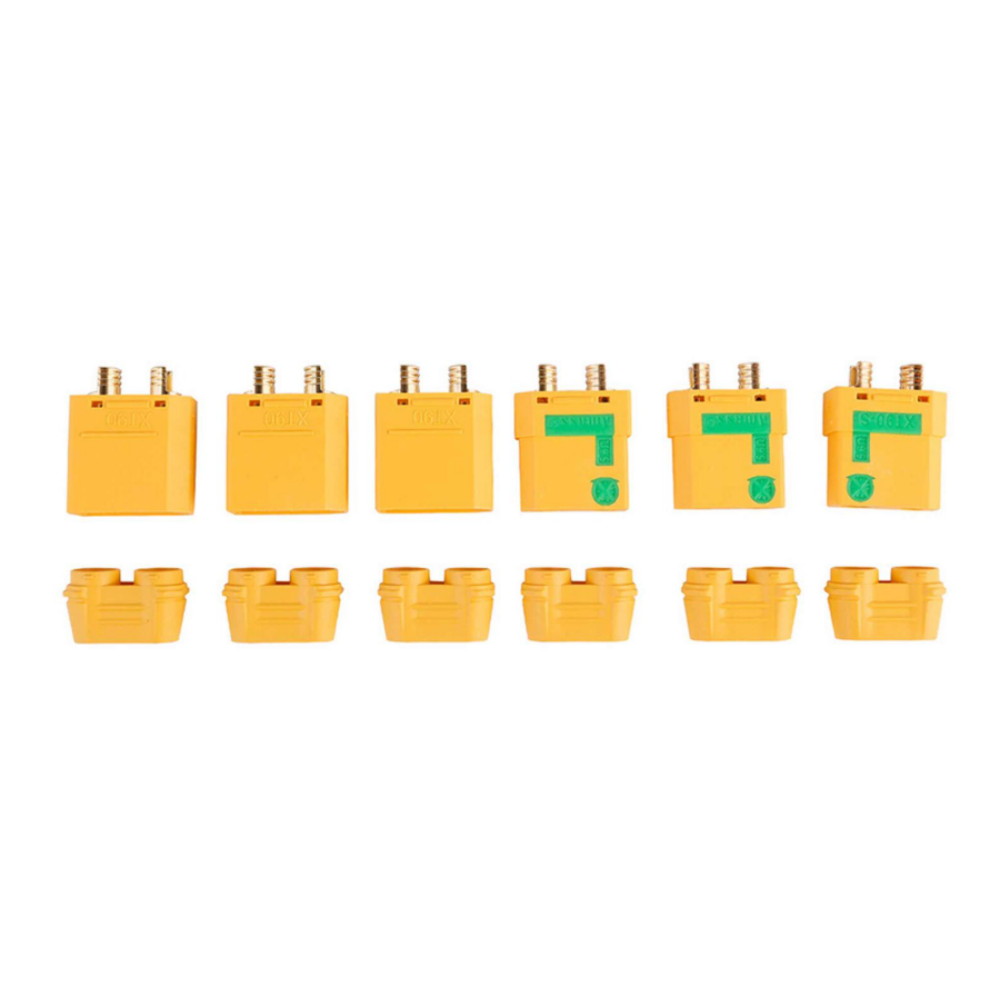

Quantity: 3 Males + 3 Females (3 Pairs Total)
Compatibility
-
Vehicles: 1/8 and 1/5 Scale Electric Vehicles (e.g., Traxxas X-Maxx, Arrma Kraton 8S, Losi DBXL-E).
-
Batteries: Any large capacity LiPo battery (4S - 12S).
-
ESCs: High-amp ESCs (Hobbywing Max5/Max6, Castle XLX2).
