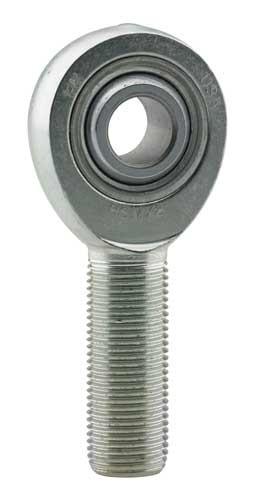

The RSMX Series rod ends feature a 3 piece extra strength rod end with heavy duty shank. The ball is made of 52100 steel, heat treated and hard chrome plated while the race is heat treated steel alloy, zinc plated and chromate treated. The rod end body is made from alloy steel, heat treated, zinc plated and chromate treated. PTFE Liners are available.
B Dia: 0.875 D Dia: 2.312 W Width: 0.875 T Width: 0.765 Ball Dia: 1.375 A Length: 3.800 N Thread: 1-14 C Length: 2.375 Misalignment Angle: 12 Left Hand Thread PTFE Liner
B Dia: 0.875 D Dia: 2.312 W Width: 0.875 T Width: 0.765 Ball Dia: 1.375 A Length: 3.800 N Thread: 1-14 C Length: 2.375 Misalignment Angle: 12 Left Hand Thread PTFE Liner
