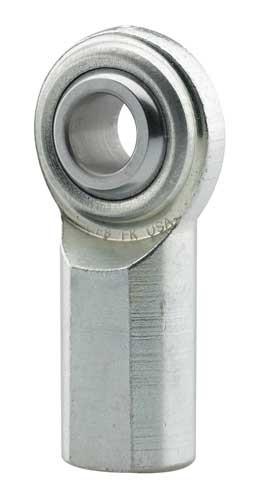

Metric 2 Piece metal to metal female rod end. Ball: 52100 Steel - Heat Treated - Hard Chrome PlatedBody: Low Carbon Steel - Zinc Plated - Chromate Heat TreatedNote: Most of these rod ends can be made with grease fittings and/or a PTFE liner
B Dia (mm): 12 D Dia (mm): 30 W Width (mm): 16 T Width (mm): 10.75 Ball Dia (mm): 22.23 A Length (mm): 50 N Thread (mm): M12 X 1.25 C Length (mm): 24 E Diameter (mm): 22 F Flat (mm): 19 Misalignment Angle: 27Ult. Static Radial Load (Newton): 25819 Approx. Weight (grams): 95 PTFE Liner: No
B Dia (mm): 12 D Dia (mm): 30 W Width (mm): 16 T Width (mm): 10.75 Ball Dia (mm): 22.23 A Length (mm): 50 N Thread (mm): M12 X 1.25 C Length (mm): 24 E Diameter (mm): 22 F Flat (mm): 19 Misalignment Angle: 27Ult. Static Radial Load (Newton): 25819 Approx. Weight (grams): 95 PTFE Liner: No
