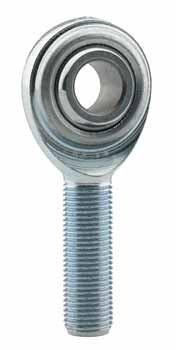

Metric 2 Piece metal to metal male rod end. Ball: 52100 Steel - Heat Treated - Hard Chrome PlatedBody: Low Carbon Steel - Zinc Plated - Chromate Heat TreatedNote: Most of these rod ends can be made with grease fittings and/or a PTFE liner
B Dia (mm): 10 D Dia (mm): 27 W Width (mm): 14 T Width (mm): 9.5 Ball Dia (mm): 19.05 A Length (mm): 48 N Thread (mm): M10 X 1.25 C Length (mm): 29 Misalignment Angle: 26 Ult. Static Radial Load (Newton): 21024 Approx. Weight (grams): 68PTFE Liner: No
B Dia (mm): 10 D Dia (mm): 27 W Width (mm): 14 T Width (mm): 9.5 Ball Dia (mm): 19.05 A Length (mm): 48 N Thread (mm): M10 X 1.25 C Length (mm): 29 Misalignment Angle: 26 Ult. Static Radial Load (Newton): 21024 Approx. Weight (grams): 68PTFE Liner: No
