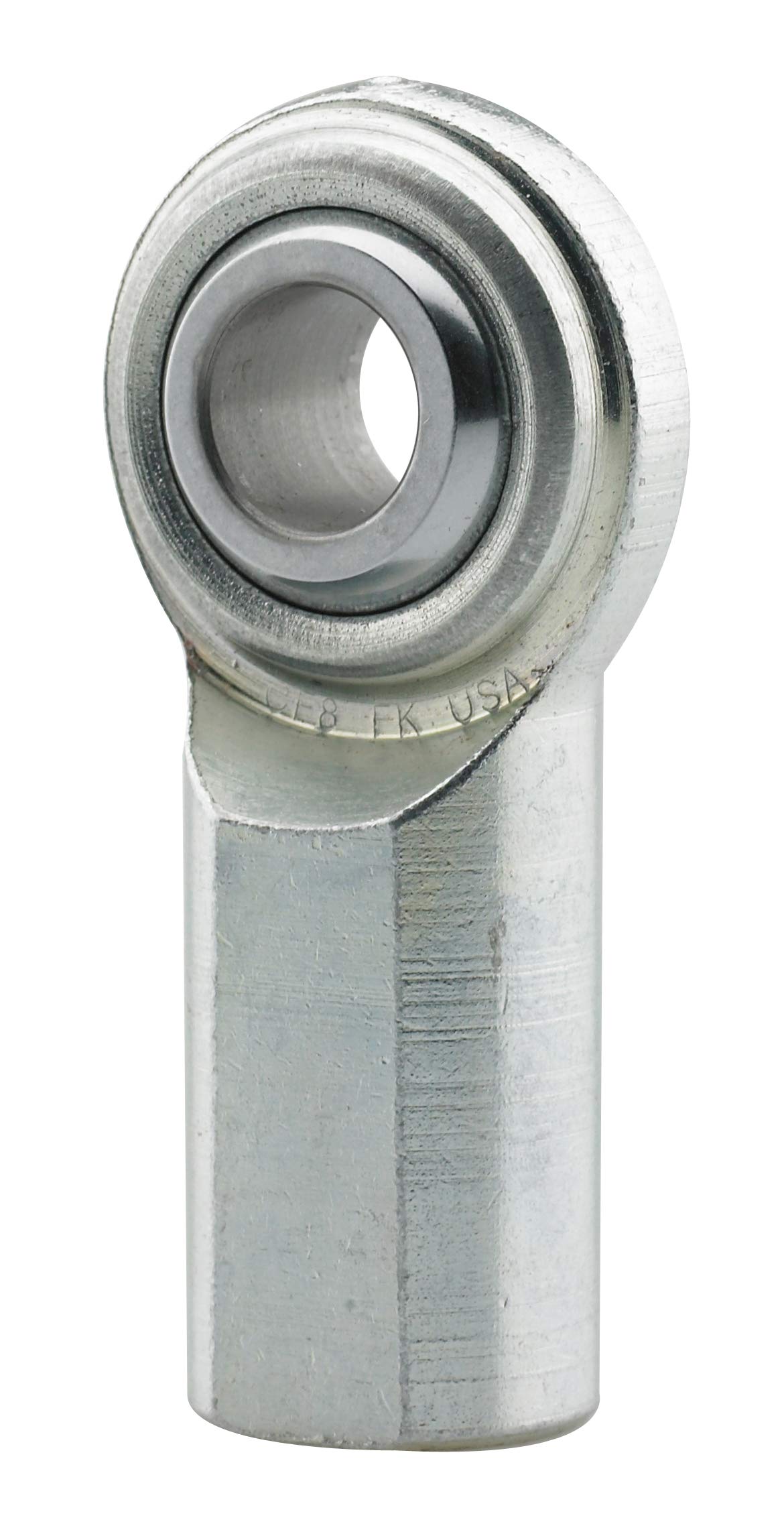

When building heavy-duty steering, suspension, or throttle linkages, the FK Bearings CF7T Female Rod End (commonly known as a heim joint) delivers commercial-grade reliability. The "CF" series designates a standard Female threaded body, while the crucial "T" indicates the inclusion of a bonded PTFE (Teflon) liner.
This liner is the major selling point for fabricators and racers. It provides a self-lubricating, metal-to-PTFE interface that dramatically reduces friction and completely eliminates the need for messy grease zerks. It also prevents dirt and grit from destroying the bearing surface, making it ideal for harsh off-road, track, or industrial environments.
Key Features
-
PTFE Lined (Self-Lubricating): The high-performance Teflon liner is bonded to the inner race, offering a maintenance-free, slop-free fit that resists pounding and vibration.
-
Heavy-Duty Construction: The body is constructed from low-carbon steel that is zinc-plated and chromate-treated for excellent corrosion resistance against the elements.
-
Hardened Steel Ball: The pivot ball is machined from 52100 bearing steel, heat-treated, and hard chrome plated to ensure a perfectly smooth rotation within the race.
-
Female Right-Hand Thread: Features a female-threaded shank designed to thread directly onto a 7/16" male stud or turnbuckle.
(Standard right-hand thread).
Specifications
-
Bore Size (Hole inside the ball): 7/16" (0.4375")
-
Thread Size: 7/16"-20 UNF (Fine Thread)
-
Thread Type: Female / Right-Hand
-
Body Material: Low Carbon Steel (Zinc Plated)
-
Ball Material: 52100 Steel (Hard Chrome Plated)
