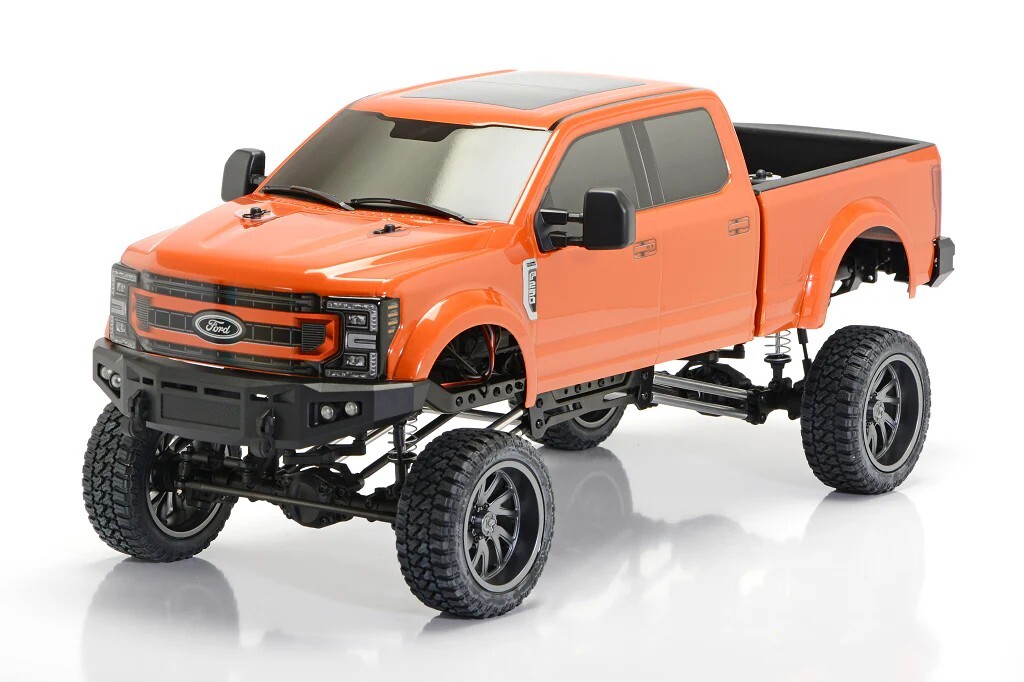

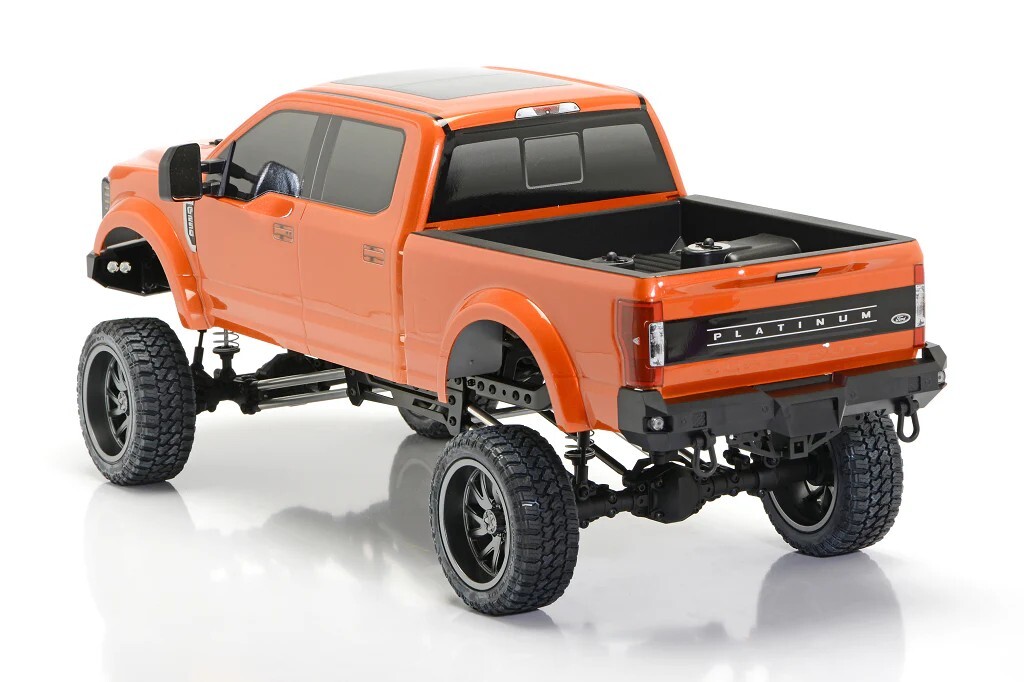

CEN Ford F250 SD KG1 Lift Edition Custom Super Scale Lifted Truck
The CEN Ford F250 SD KG1 Lift Edition 1/10 RTR Custom Truck brings the same incredible custom looks as offered with it's F450 big brother but with a fresh updated look. Featuring a true to scale F250 quad cab body, detailed side view mirrors, custom front and rear bumpers and a massive suspension lift it is hard to deny how awesome this truck looks! Adding to the custom truck theme is an RGB LED light positioned under the fenders. This light is selectable from the transmitter and gives you a multitude of color options showing off the impressive suspension. Supporting the F250 are two stout straight axles each located with four aluminum main links and a unique Watts link style pivoting axle mount. The Watts link takes the place of a typical panhard bar and keeps the axle centered throughout the suspension travel thus keeping any unwanted tire rubbing from happening. Finishing off the axles are a matching pair of front and rear sway bars keeping the truck level in heavy duty conditions.Features:
RGB LED Light:
- Stander Under Fender Multicolor RGB LED.
* ESC - 40A WP-1040-Brushed (By HobbyWing).
- Water-Proof and Dust-Proof for All Weather.
- Built-In Capacitor Module.
- Automatic Throttle Range Calibration.
- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
- Over-Heat Protection and Throttle Signal Loss Protection.
* Motor
- RS-540 High Torque Brushed Motor.
* Servo
- 12Kg Metal Gear Servo (By Savox).
4.8V - 0.26 sec/60° 10.0 kg-cm.
6.0V - 0.23 sec/60° 12.0 kg-cm.
25T Horn Gear Spline.

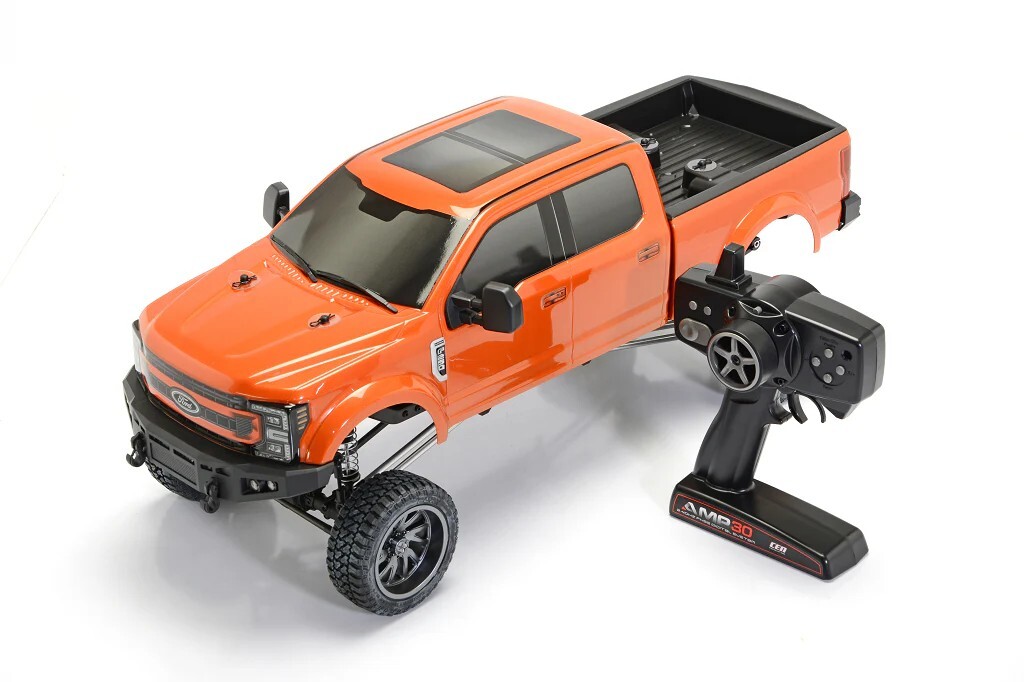

* Radio System
- Pistol-Grip Mod-3S 3 Channel Transmitter.
- Digital Trimming.
- Steering Dual-Rate (ST D/R) Adjustment.
- End Point Adjustment (EPA).
- Build in Failsafe.
Transmitter Model: 82190
Frequencies: 2.4GHz
Weight: 375gm
Power Supply: 4 - AA Alkaline (Not Included).
-Receiver
Receiver Model: G82191
Frequency: 2.4GHz
Power Supply: DC 4.8 ~ 6.0V
Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).
Body:
Official Licensed by Ford Motor
- F-250 Super Duty.
- Scale Realistic Body Details.
- Black Bed Liner Coating.
- hard Molded Front & Rear bumpers with build in 3mm LED housing

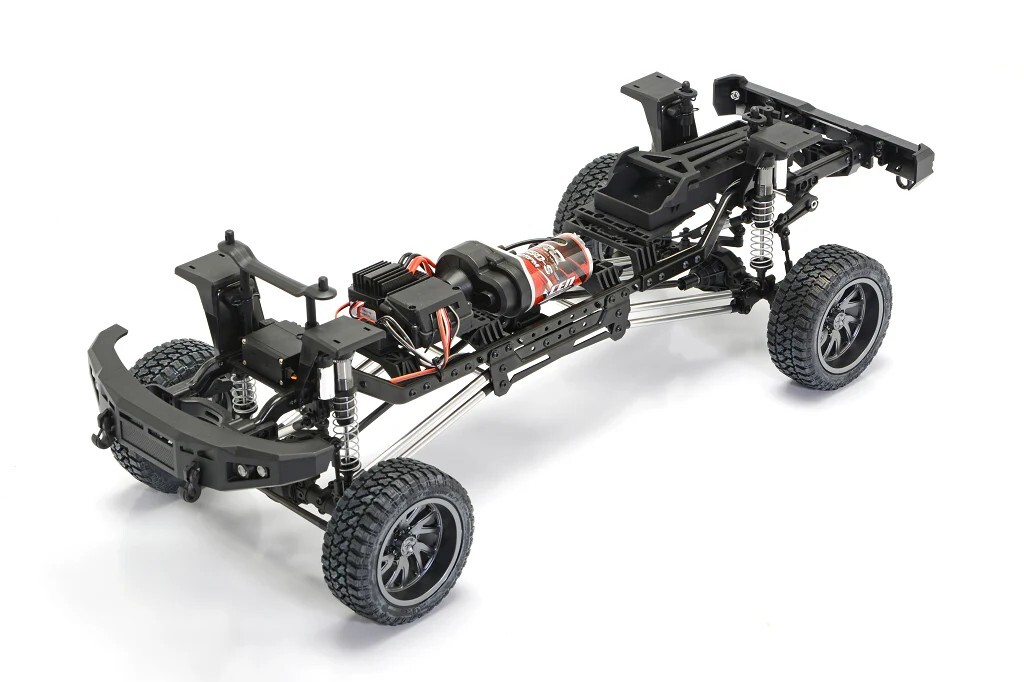

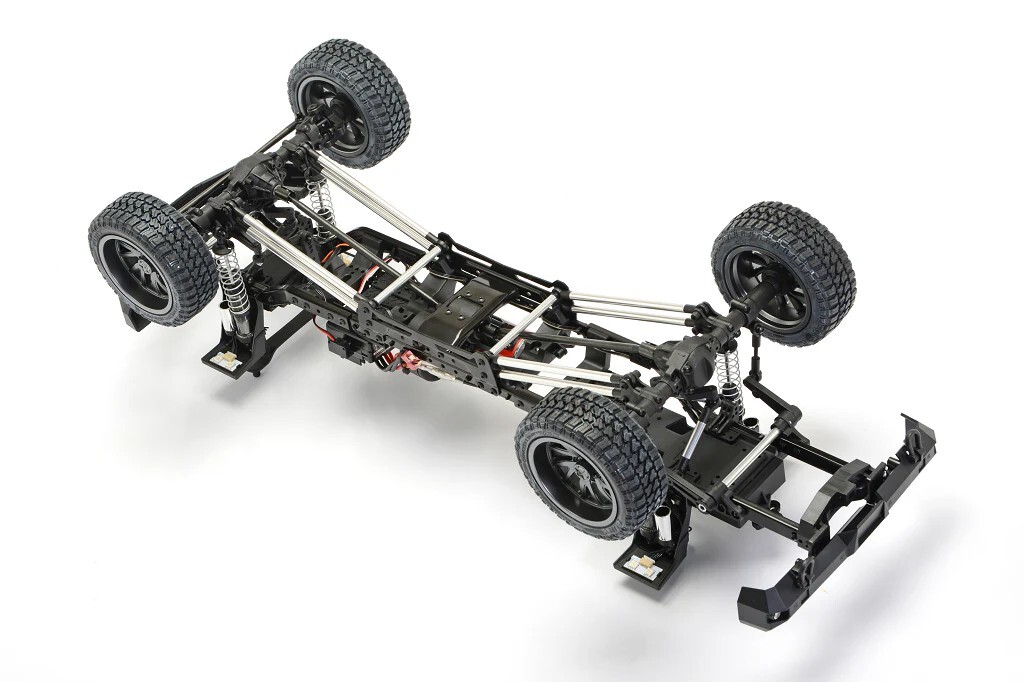

Chassis:
- Steel Frame Rails.
- CMS (Chassis Mounted Servo) Chassis Design.
- Stamped Steel Shock Hoops.
- Steel Skid Plate.
- Full Precision Ball Bearing Supported.
- Adjustable Turnbuckles.
- High Torque Servo Saver Horn.
- Easy Access Battery Tray.
- Battery Tray Size 146 x 50 x 25mm.
Suspension:
- Custom Lifted Suspension Design.
- 110mm Big Bore Oil Filled Adjustable Coil Over Shocks.
- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
- Harden Steel Steering Drag Link.
- CNC Machined 6mm Aluminum Linkage.
- Front / Rear Sway Bar.
Drivetrain:
- Full Metal Transmission Gears.
- 4 Wheels Drive.
- Center Shaft Drivetrain for More Power Transferred to the Wheels.
- Hight Efficient Transmission System.
- Wide Range Easy Changeable Gear Box Design.
- Sealed Transmission Case.
- Sealed Axle Housing.
- Metal Planetary Gear Type Differential.
Gear Ratio:
- Hi / Speed Ratio 1.56:1
- Hi / Torque Ratio 2.8:1
- Spur / Pinion Gear 32p85/32p12T
- Ring & Pinion Gear30/15T 2:1
Wheel:
Official Licensed by KG1 Forged
-KF004 Vile Wheel.
-66.50mm x 37.5mm.
Tires:
Official Licensed Fury Tires
-Low Profile Country Hunter tires.
-65 x 100.50 x 38.50 mm.
Specs:
Item Number: 8992 / 8993
F-250 Super Duty
1/10 Scale 4 wheels Drive Lifted Custom Truck
Length: 25.6 inches (650mm).
Width: 10.04 inches (255mm).
Wheelbase: 16.02 inches (407mm).
Ground Clearance: 3.54inch (90mm).
Weight: 5.51 lb. 2.5 kg.
Battery Recommend : 2S 5000mah Lipo Battery with dean connector
