BD Diesel has been shipping top-notch exhaust brakes for almost 30 years. Drawing on BD Diesel's extensive experience with hill and mountain roads, BD Diesel leverages this knowledge to consistently deliver the best-designed exhaust brakes for your application. Incorporating BD Diesel's exclusive Variable Orifice Technology, a solid, offset butterfly, a spring-loaded cylinder, and adjustable pressure regulation collectively provide up to 150 retarding horsepower across the engine's RPM range. This performance stands out from designs that claim superiority by focusing solely on high RPM and utilize holes or additional parts.

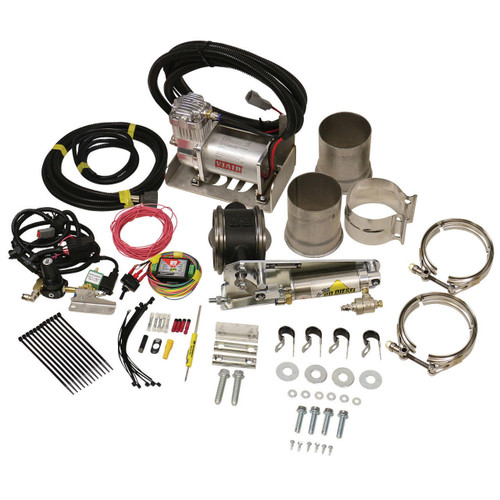

A range of rugged, cast-iron housings caters to Dodge, Ford, Chevy, and motor home applications. These housings incorporate BD Diesel's exclusive alumibronze bushing, piston ring-seals, and a stainless steel butterfly shaft, proving their durability under the harsh, high-heat conditions of the exhaust environment. The butterfly valve and rotating shaft are crafted from stainless steel to ensure corrosion resistance. Most kits for newer pickup trucks even include an air compressor.
Key Features:
- Provides up to 150 retarding horsepower across the engine's RPM range
- BD Diesel's exclusive Variable Orifice Technology
- Adjustable pressure regulation
- Pneumatic spring-loaded cylinder
- Solid, offset butterfly
- Rugged, cast-iron housings with alumibronze bushing, piston ring-seals, and stainless steel butterfly shaft
- Proven durability under harsh, high-heat conditions
- All mounting hardware provided
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
Installation Time: 4 Hours
Warranty:
- Parts: 24 Months / 24,000 Miles
- Labour: 12 Months / 12,000 Miles
Note:
- Brake controls connect to the throttle pedal with an Accelerator Pedal Position Sensor (APPS). Vehicles without APPS will require 1300420 micro switch, and a custom bracket will need to be made.
- An Exhaust Back Pressure test gauge kit 1030050 is suggested for the setup of exhaust brakes.
- May not work with engines that have OEM Variable Vane (VGT) turbos such as Cummins ISX. Will work with aftermarket non-VGT turbos.
Emissions: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
