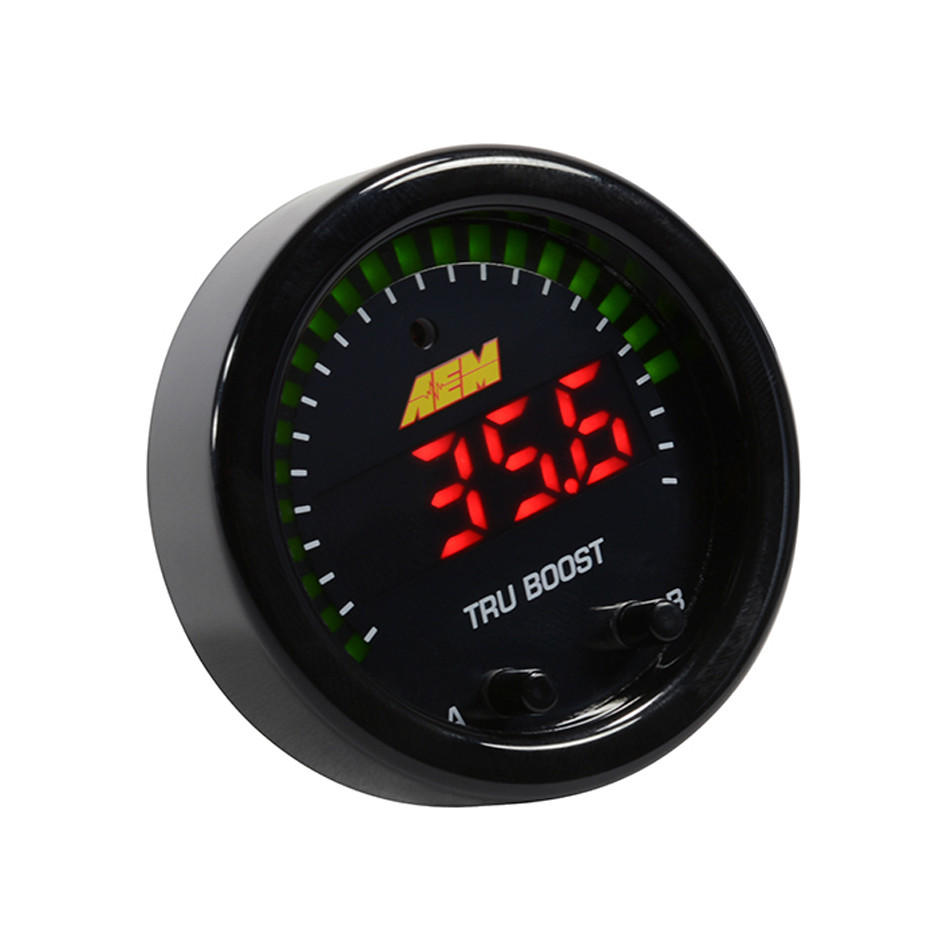

The Tru-BoostX Boost Controller Gauge retains the beloved features of its predecessor, now enhanced with AEMnet for data logging and an impressive internal MAP sensor capable of handling boost pressures up to 80 PSI.
This boost controller gauge combines digital precision with the simplicity of a manual boost controller. Programming is effortlessly done through the faceplate buttons, eliminating the need for a laptop. AEM includes the specially designed Boost Control Solenoid and all essential hardware.
Key Features:
-
Program Two Boost Levels + Scramble Boost Setting: Configure two boost modes for varying performance levels (up to 80PSIg internal MAP sensor), and set a time-based scramble boost using a switched input. The controller can be turned off, functioning as a display only.
-
Change Wastegate Open Pressure: Ideal for minimizing boost spikes and enhancing spool-up.
-
Display Boost Levels in Multiple Units: View boost in PSIg (PSI), BAR, or kPa (PAS). Scale the 24 outer LEDs to match peak boost levels for a seamless sweeping motion.
-
Set Alarms and Display Peak Boost: Utilize the 24 green outer LEDs to flash based on boost pressure, providing alerts for overboost conditions. A ground output is included for connecting an optional LED warning light. Peak boost level is accessible with the "B" button, with the option to clear the value through the menu.
-
Overboost Protection Built In: Safeguard your engine by deactivating the boost control solenoid during an overboost condition, with reactivation controlled through the faceplate buttons.
-
Integrated Error Protection: Receive alerts in case of a fault, such as a shorted or disconnected boost control solenoid, ensuring awareness of the Tru-BoostX's operational status.
-
Datalogging using AEMnet CAN Bus: Transmit a wealth of data over a 2-wire connection through AEMnet, including boost pressure, peak boost, boost target, boost scramble duty, overboost status, wastegate crack pressure, boost control solenoid status, and more.
Additional Features:
- Slim 0.825" overall gauge depth and 0.200" cup depth for versatile mounting.
- 2-1/16th (52mm) gauge diameter for easy installation in gauge pods.
- Programmable center LED that is 87% larger than original AEM gauges.
- 24 green outer LEDs for quick reference to engine parameters.
- Boost display gauge and boost controller in a single unit.
- Easy programming with no laptop required.
- On-board 80PSIg MAP sensor, eliminating the need for an upgrade kit in high boost vehicles.
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger.
- Wastegate open pressure setting to control boost spikes and enhance spool.
- Display boost levels in PSI, BAR, or kPa.
- Overboost protection and programmable alarms, with a ground output for an optional LED warning light.
