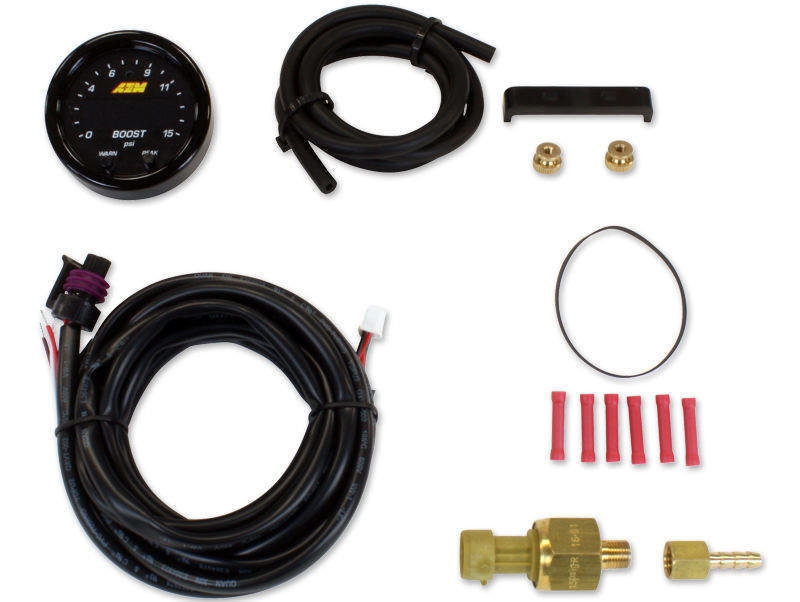

AEM's 30-0309 X-Series 0~15PSI Digital Boost/Fuel Pressure Display gauge seamlessly integrates striking aesthetics, improved readability, and a host of user-friendly features, making it a necessity for users seeking highly accurate boost or fuel pressure readouts up to 15 PSI in their high-performance supercharged or carbureted vehicles.
Easier to Read: Visual enhancements include a vibrant center LED display that is 87% larger than our original digital gauges, ensuring superior readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. With a 33% overall increase in the gauge face display, information is now more accessible at a glance.
Easier to Mount: Despite the larger display, X-Series Gauges are housed in a standard 2-1/16th-inch (52mm) diameter, facilitating effortless mounting in a standard gauge pod. Thanks to an advanced single-board design, X-Series Gauges boast an exceptionally slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted virtually anywhere.
Smarter Interface: X-Series Digital Gauges feature new technological enhancements that elevate user convenience. Two buttons on the faceplate offer programmability for peak/recall, standard or metric center LED readout, and sweeping LED needle, along with user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, facilitating daisy-chaining for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or third-party EMS or loggers that accept AEMnet. Additionally, 0-5V analog outputs are included for seamless integration with data loggers and engine management systems.
Key Features:
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825" overall gauge depth and 0.200" cup depth for versatile placement
- Center LED, 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameters
- Peak/Recall functionality via gauge face buttons
- User-selectable threshold warnings
- Optional silver bezel with white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for data transmission to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto-dimming sensor for ideal display brightness
- Positive locking connectors for secure connections
