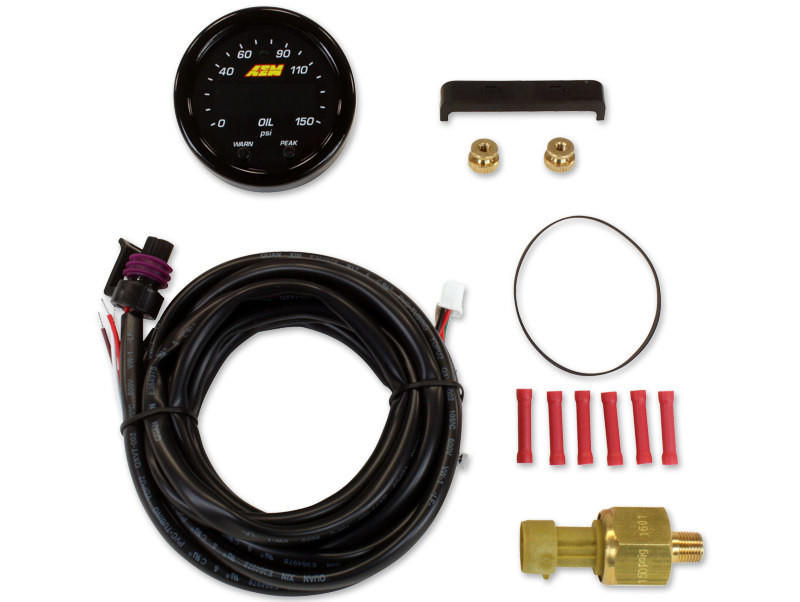

AEM's 30-0307 X-Series 150 PSI/10 BAR Digital Oil Pressure gauge integrates striking aesthetics, enhanced readability, and a plethora of user-friendly features, making it indispensable for users seeking precise oil or fuel pressure readouts in their high-performance vehicles.
NOTE: The 30-0307 is equipped with a black bezel and black oil pressure faceplate. To obtain the silver bezel and white oil pressure faceplate, the optional 30-0307-ACC accessory kit must be purchased. Each faceplate is double-sided, featuring standard PSI on one side and metric BAR on the other. Calibration for standard or metric display is effortlessly performed using the buttons on the gauge face.
Easier to Read: Visual enhancements include a vibrant center LED display that is 87% larger than our original digital gauges, ensuring superior readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. With a 33% overall increase in the gauge face display, information is now more accessible at a glance.
Easier to Mount: Despite the larger display, X-Series Gauges are housed in a standard 2-1/16th-inch (52mm) diameter, facilitating effortless mounting in a standard gauge pod. Thanks to an advanced single-board design, X-Series Gauges boast an exceptionally slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted virtually anywhere.
Smarter Interface: X-Series Digital Gauges feature new technological enhancements that elevate user convenience. Two buttons on the faceplate offer programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, enabling daisy-chaining for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or third-party EMS or loggers that accept AEMnet. Additionally, 0-5V analog outputs are included for seamless integration with data loggers and engine management systems.
Key Features:
- 2-1/16th (52mm) gauge diameter for easy pod mounting
- Slim 0.825" overall gauge depth and 0.200" cup depth for versatile placement
- Programmable center LED, 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameters
- User-selectable standard or metric display (0-100 PSI/0-7 BAR)
- Peak/Recall functionality via gauge face buttons
- User-selectable threshold warnings
- Optional silver bezel and white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for data transmission to EMS or Data Logger
- 0-5V analog outputs for seamless integration with EMS or Data Logger
- Auto-dimming sensor for ideal display brightness
- Positive locking connectors for secure connections
