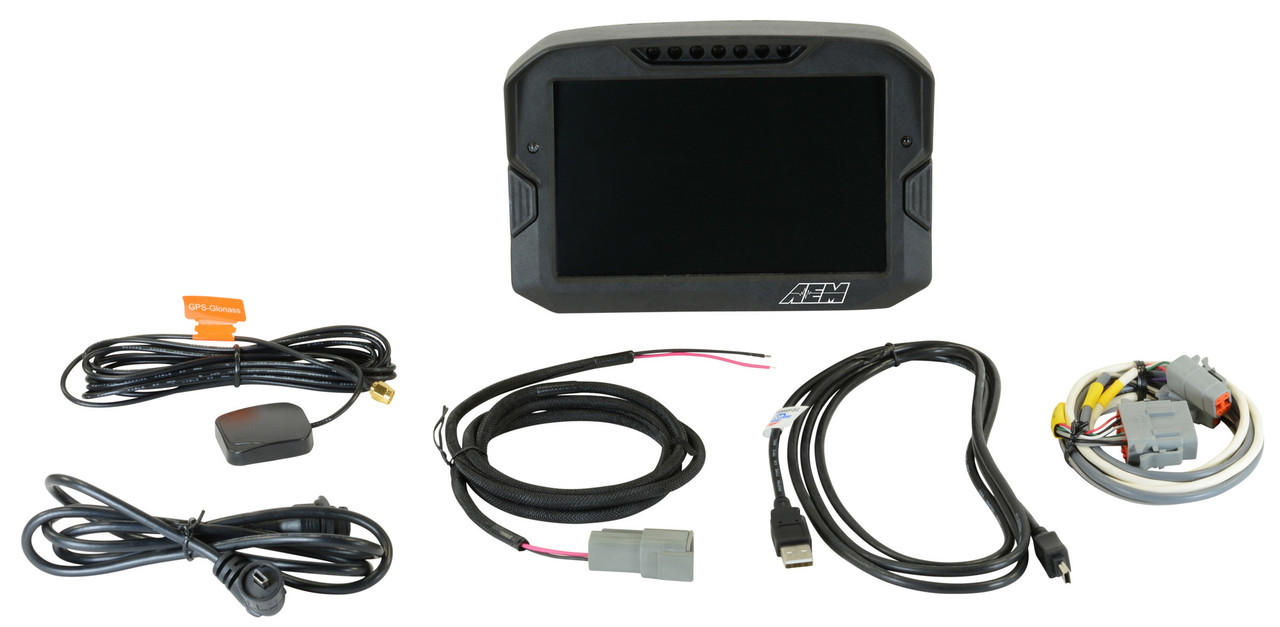

The CD-7 Carbon Digital Dash Displays showcase a vibrant, daylight-readable screen enclosed in a robust, lightweight flow-molded carbon fiber composite housing. Illuminating the top of the display housing, seven ultra-bright LEDs serve as RPM and shift light indicators, programmable to ascend in specific increments based on RPM range and flash when it's time to shift. Users can customize the brightness of the fixed color LEDs. The display face incorporates two large buttons for easy page changing and memory resetting, even with driving gloves. These button functions are seamlessly integrated into the supplied rear connector, enabling users to mount remote buttons. Additionally, two programmable LEDs are positioned above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.
Features:
- Full color 7" screen with 800x480 resolution
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Layout files interchangeable with all versions of the CD-5 Carbon
- Wiring interface/harness is identical to the CD-5 Carbon
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Total display weight of 20.9 oz. / 595 grams
- IP65 water resistance - open cockpit, marine and motorcycle safe
- Accepts channels from two separate user-programmable CAN bus connections
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
- Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user-defined)
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Use included page layouts and input your channels and text, or create your own from scratch
- Free DashDesign Graphics Editor software
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Two programmable LEDs
- Odometer function
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams, etc.)
- User-supplied graphics can be changed based on channel values (up to the full screen size)
- Convert CAN bus channel values to user-defined text in multiple languages
