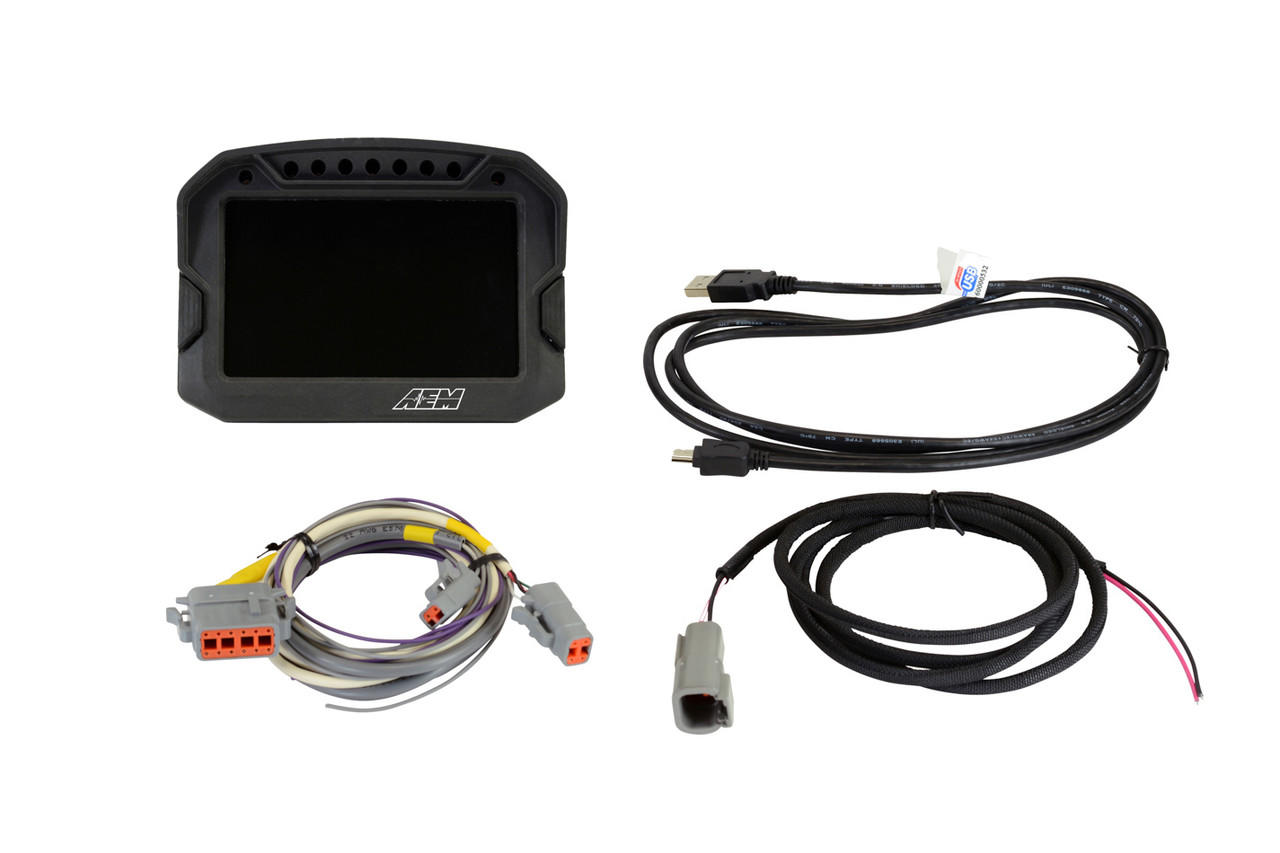

CD-5 Carbon Digital Dash Displays showcase a vibrant full-color screen encased in a robust, lightweight carbon fiber composite housing. The display's top features seven ultra-bright LEDs for RPM and shift light indications, with customizable programming to ascend in specific RPM increments and flash during shift points. The fixed color LEDs' brightness is user-programmable. Conveniently placed large buttons on the face of the display facilitate easy page changes and memory resets, even when wearing driving gloves. These functions are also accessible through the supplied rear connector, enabling the mounting of remote buttons. Two additional programmable LEDs enhance the top housing, flanking the integrated LED shift lights. View and log data from over 250 CAN devices!
The CD-5 Carbon seamlessly receives channels from two independent CAN bus inputs, eliminating the need for special modules to read AEM and/or third-party CAN signals. Validated to communicate with over 250 non-AEM devices and 2008-up stock ECUs via the OBDII port, the CD-5 Carbon can be added to any vehicle with the optional 22 Channel CAN Sensor Module. ECU CAN readiness eliminates the need for external modules for CAN-to-CAN communication. All channels can be named in any language, ensuring user-friendly information display on the main screen dashboard monitor or warning alerts.
Key Features:
- Full-color 5" screen with 800x480 resolution
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Interchangeable layout files with all CD-7 versions
- Identical wiring interface/harness as the CD-7
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- IP66 water resistance for operation in boats and motorcycles
- Accepts channels from two user-programmable CAN bus connections
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic, and Vi-Pec ECUs
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable
- Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Available with or without on-board GPS receiver and antenna
- Add Vehicle Dynamics Module for GPS, 3-axis gyroscope, and 3-axis accelerometer
- Seven programmable pages including Main, Alarm, On-Change, and Start-up pages
- Dedicated Alarm page with customizable warnings
- On-Change page for identifying map switching, lap times, etc.
- Free DashDesign Graphics Editor software
- Seven LED RPM/shift light indicators (programmable and dimmable)
- Two programmable LEDs
- Odometer function
- Over 200 fully programmable SAE and custom warning icons
- 'Headlight-in' connection for night operation dimming
- Two extra switch inputs for user-triggered events
- User-supplied graphics change based on channel values
