Unisteer Performance 68-72 Gm A-Body Power Rack And Pinion Kit

Upgrade your 1968-72 GM A-Body with the Unisteer Performance Power Rack and Pinion Kit, specifically designed for Chevelles and other GM A-Body vehicles. This kit replaces the original steering system with a front-steer center take-off style rack and pinion, offering a significant improvement in steering precision and handling.

Key Features:

• Direct Bolt-On Installation: The rack mounts on a one-piece bracket that bolts directly to the original location of the steering box and idler arm, ensuring a straightforward installation process. The design clears the Z-Bar and 4-speed linkage, making it compatible with both manual and automatic transmissions.
• Engine Compatibility: The kit has been successfully installed on both big block and small block motors. It accommodates big block cars with stock manifolds or Super Comp Headers and small block motors with Hooker Comp Headers. While other headers may fit, some modifications might be necessary.
• Flexible Setup: Designed for vehicles with long water pumps, the kit can be adapted for short water pumps by swapping in the appropriate components—contact us for assistance. It also bolts directly into a 1968-72 small block El Camino and Monte Carlo.
• Clearance Considerations: Be mindful of aftermarket cylinder heads, particularly those with raised exhaust floors, as these can affect header clearance. Big block motors with Mark V and Mark VI designs may require additional header modifications due to a 0.4" difference in deck height compared to the original Mark IV design.

Technical Specifications:

• Pinion Type/Size: 3/4" - 36 Spline
• Amount of Travel: 7"
• Turns Lock to Lock: 3 turns
• Pressure Port Size: 18mm - 6 AN
• Return Port Size: 16mm - 8 AN
• Pump Required: High Flow/Pressure
• Inner End Threads: M14 x 1.5
• Outer Ends: 8020940

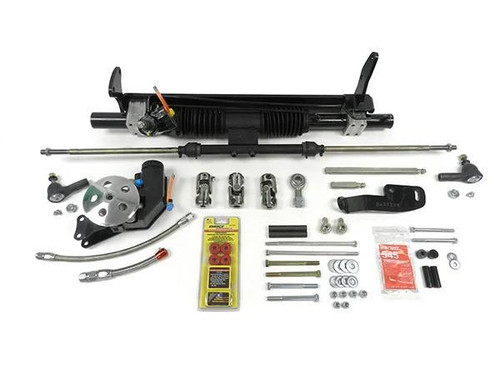

Kit Includes:

• Rack and Pinion
• Mounting Bracket
• Mounting Hardware

Important Notes:

• Compatibility: The kit is designed for vehicles with either small blocks or big blocks with long water pumps. For short water pumps, contact us for proper component swaps.
• Header Clearance: Ensure compatibility with your header setup, especially when using aftermarket cylinder heads with raised exhaust floors or big block motors with Mark V and Mark VI designs.

Enhance the driving experience of your GM A-Body with the Unisteer Performance Power Rack and Pinion Kit. Enjoy improved steering response and a cleaner, more modern setup in your classic Chevelle, El Camino, Monte Carlo, or other GM A-Body.
