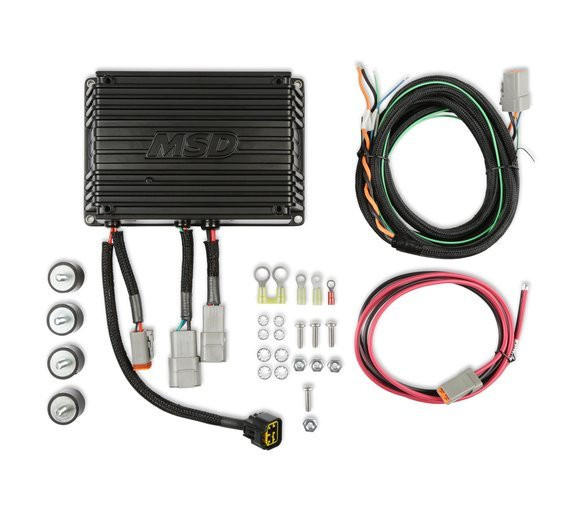

The Single Channel Pro 600 Ignition stands out as a pinnacle of engineering, purpose-built for the most demanding racing scenarios, and emerges as the premier single channel ignition box seamlessly integrated with the MSD Power Grid. Boasting the highest energy levels in its class, this ignition system can consistently operate at an energy level of up to 600 mJ, delivering spark durations exceeding 250 microseconds.
The ingenuity of the Single Channel Pro 600 Ignition is evident in its ability to adapt on the fly, featuring a Power Boost wire that facilitates dynamic adjustments between programmable lower energy (defaulted at 325 mJ) and its maximum energy output of 600 mJ. This dynamic functionality not only reduces battery power requirements but also mitigates stress on secondary ignition components such as the distributor cap, rotor, spark plug wires, and spark plugs.
The ignition's distinctive Alternating-Current (AC) operation, coupled with an internal coil-coupler, significantly enhances spark-gap energy and duration when compared to traditional Direct-Current (DC) ignitions. This heightened efficiency translates to increased energy at the spark gap, prolonged spark duration, and a cooler operating temperature for the ignition coil.
To further optimize efficiency, the Single Channel Pro 600 Ignition recycles unused spark energy back to the ignition capacitor, minimizing the power draw from the battery. This unique feature provides up to 20% additional spark gap energy and a 40% increase in spark duration compared to other 600 mJ ignitions available in the market.
The high-efficiency design not only reduces power demands from the battery but also alleviates stress on wires and connectors. Engineered for continuous full-power operation, the Single Channel Pro 600 Ignition seamlessly interfaces with the MSD Power-Grid, offering firing-by-firing spark current data acquisition. A Diagnostic LED adds an extra layer of intelligence, swiftly detecting faults such as Open Coil Primary, Shorted Coil Primary, Reversed Primary Connections, or Open Coil Secondary.
Key Features:
- Adjustable output energy up to 680 millijoules (mJ)
- Over 3A peak spark current with the recommended ignition coil PN 82612/3
- Compatible with 8/6/4 cylinder engines
- Spark current sense and recording for each firing
- Spark duration exceeding 250 microseconds
- Rated for continuous operation at an output of 600 mJ
- Operates between 12-28V
- Minimum starting voltage: 6 volts
- Direct plug-in compatibility with MSD Power Grid Controller PN 7730
- Reverse battery protection
- Internal protection against damage from internal over-temperature or open/shorted coil
- Diagnostic LED for fault detection
- On-the-fly Power Output selection wire
