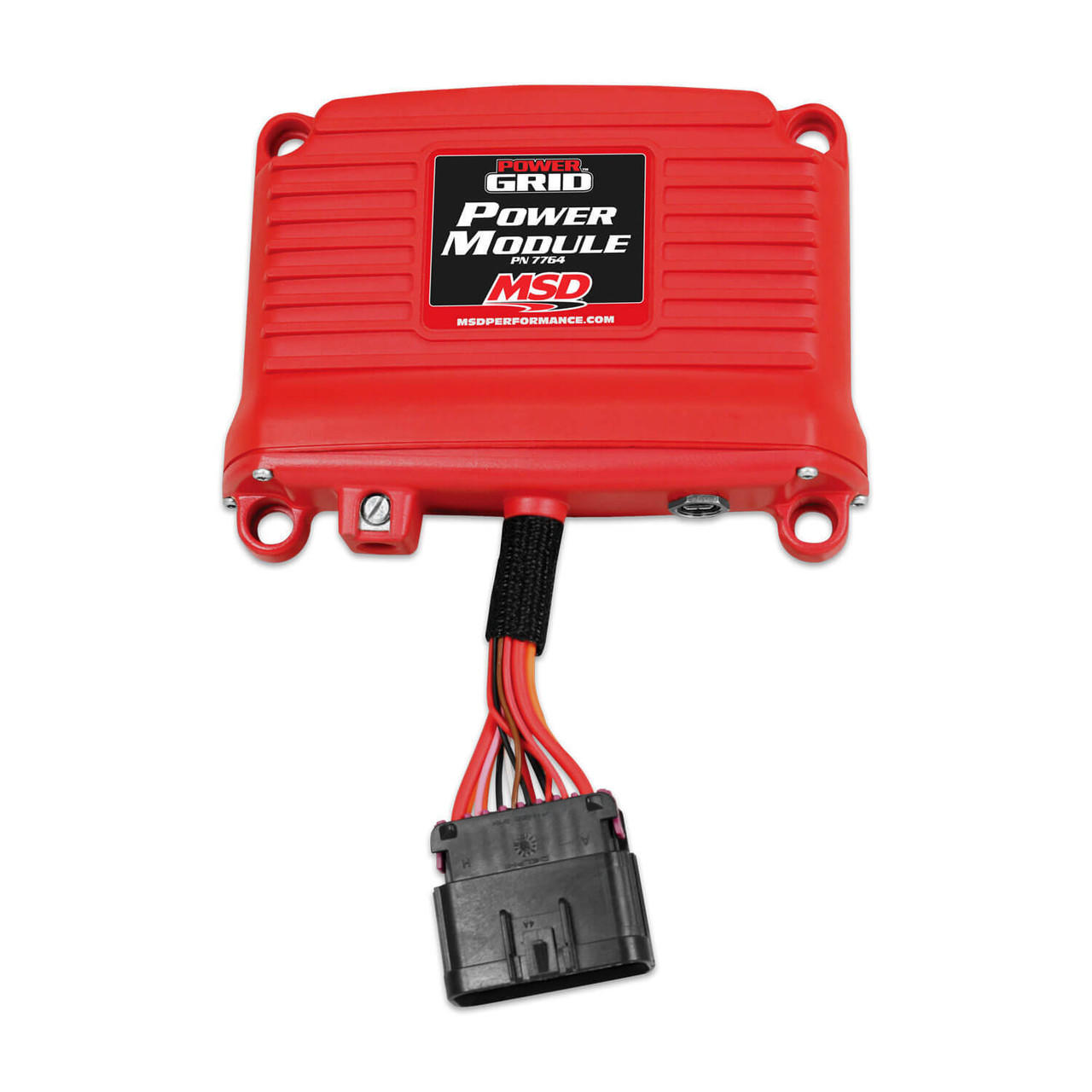

The MSD Power Module stands as a fully programmable, four-stage solid-state relay designed to handle up to 20 Amps of current per channel. This innovative module eliminates the need for traditional electromechanical relays, fuses, and timers.
Each output can be independently or simultaneously controlled, offering exceptional flexibility. The configuration options include digital output (ON/OFF) or Pulse Width Modulated output (PWM), featuring user-programmable frequencies reaching up to 10 Kilohertz.
Versatile outputs can be orchestrated based on Time, RPM, or temperature, providing control over fans, pumps, nitrous systems, and various other components.
For comprehensive functionality recording, the Power Module can be coupled with the MSD PN 7730 Power Grid along with a High-Speed Data Logger. The module includes built-in overcurrent protection, negating the need for additional fuses. With an 80 Amp capacity and each of the four channels rated up to 20 Amps, this module ensures efficient and advanced control for a variety of applications. It can be utilized either independently or in conjunction with the MSD Power Grid PN 7730. Trigger signals can be configured to respond to power, temperature, or time inputs. The MSD Power Module is available in both Red (P/N 7764) and Black (P/N 77643) options.
