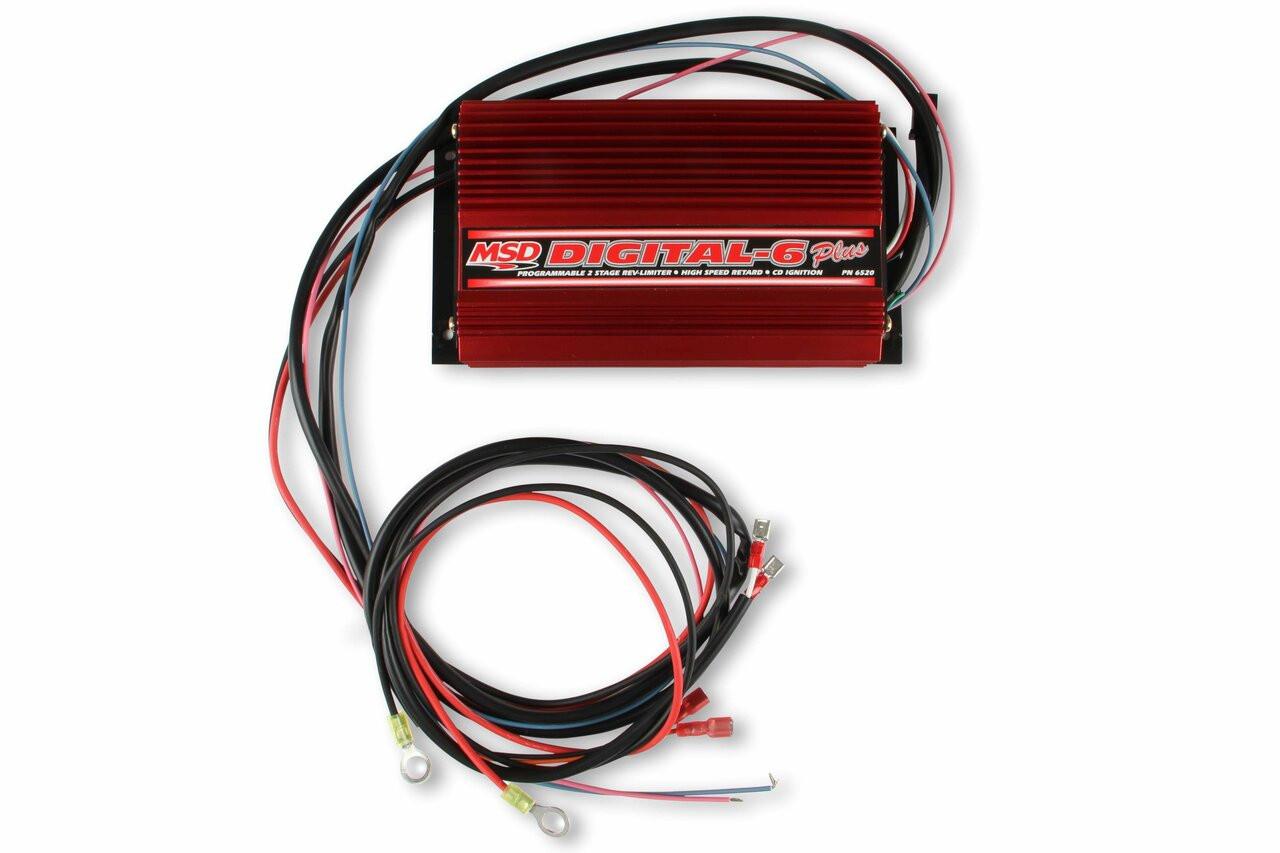

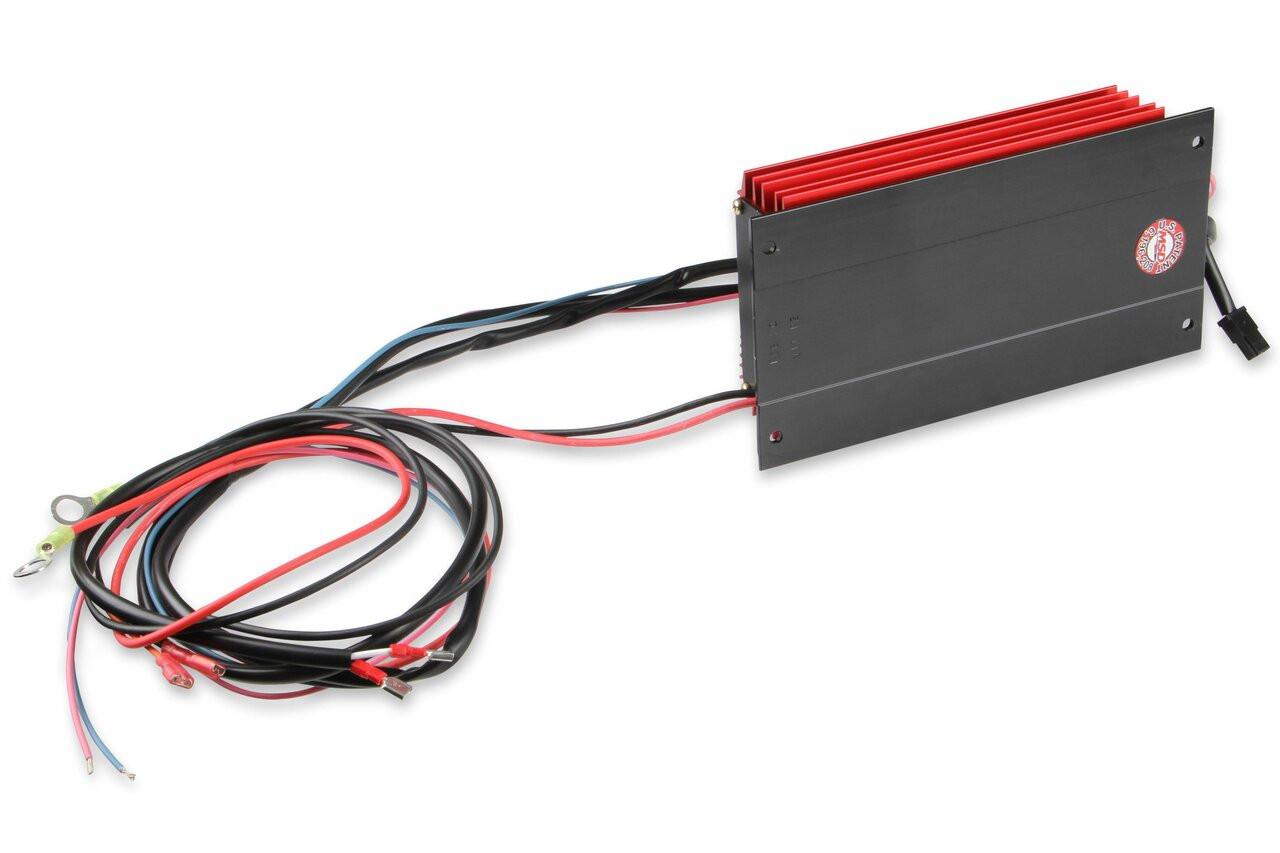

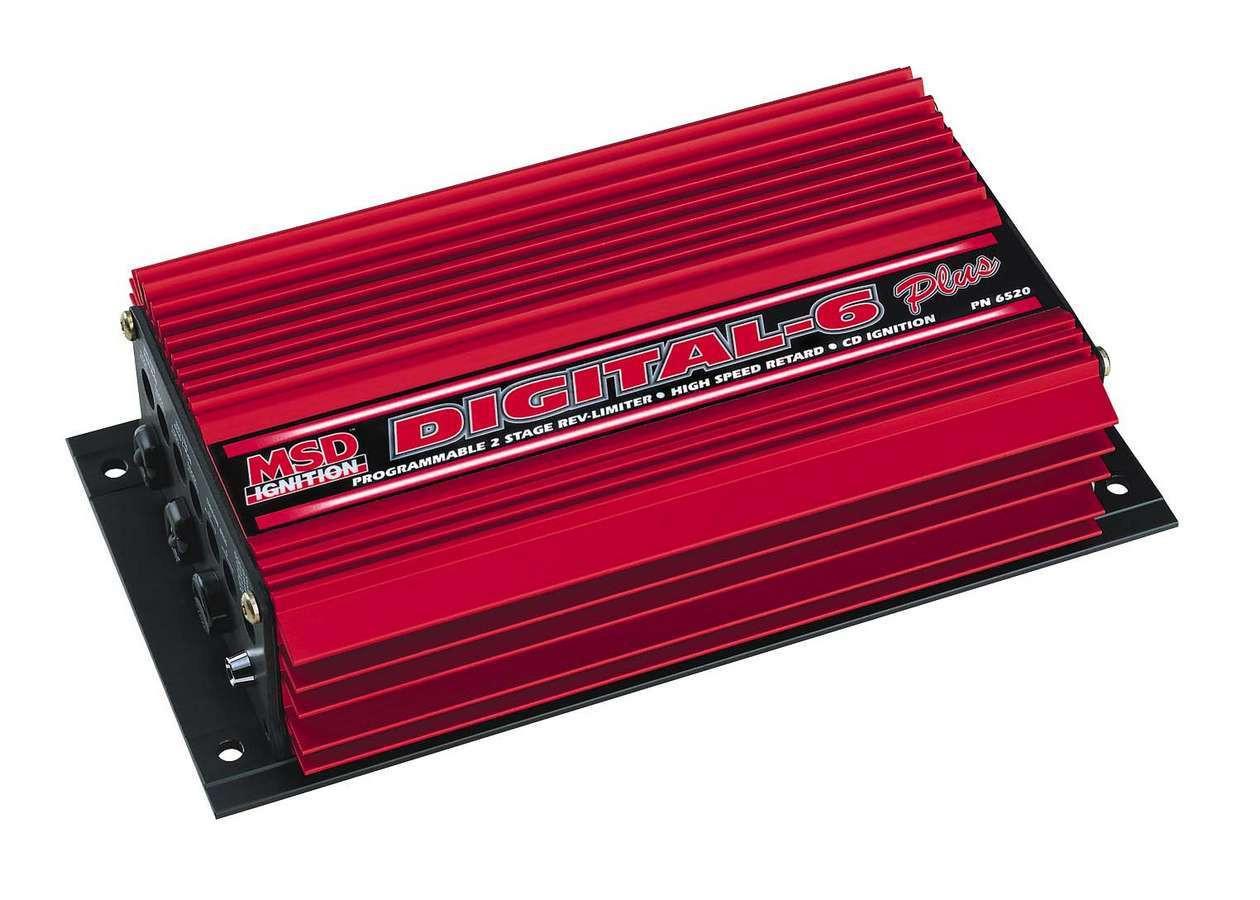

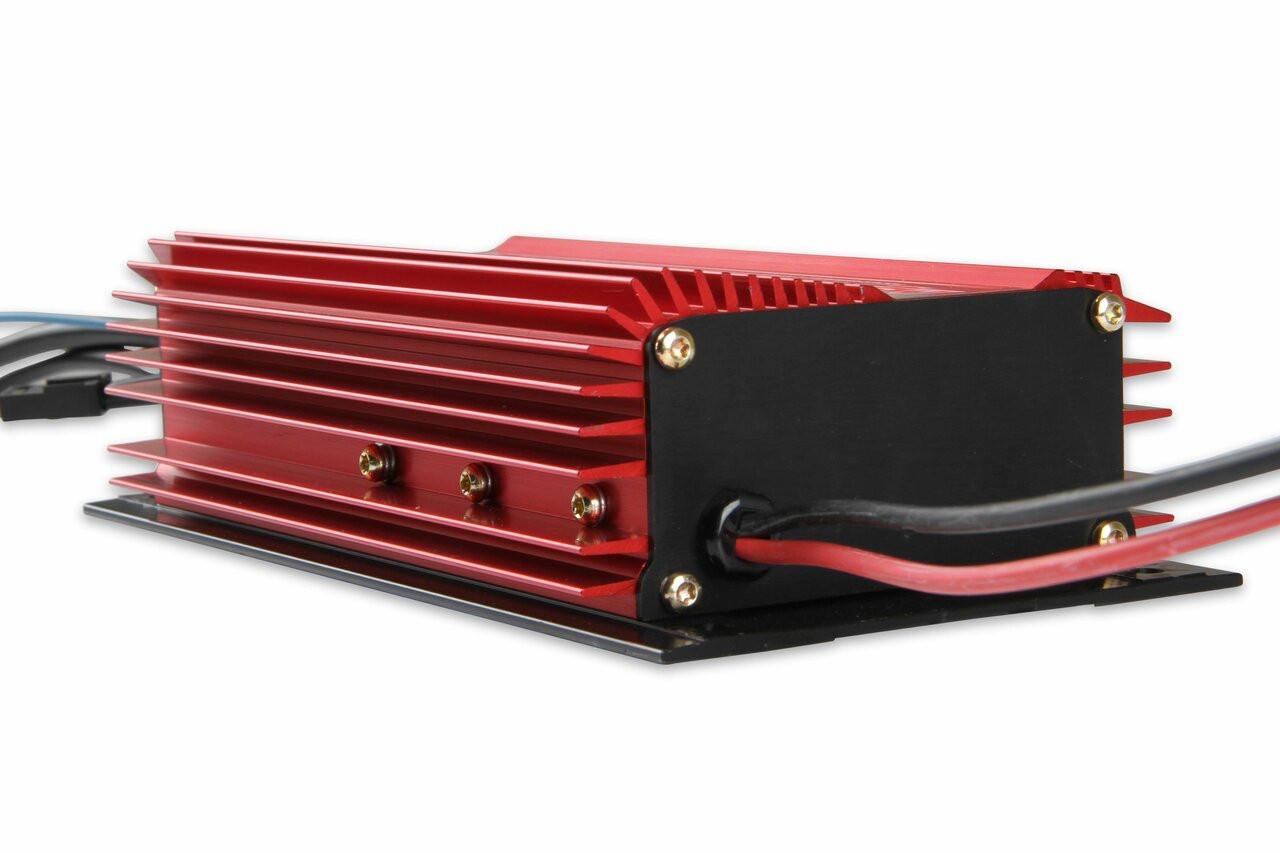

Msd Ignition Digital 6-Plus Ignition Controller

The MSD Digital-6 Plus Ignition Control is the perfect blend of formidable power, digital precision, and versatile accessories, making it well-suited for street/strip applications.

Each spark generated by the Digital-6 Plus Ignition is infused with an impressive 135 millijoules of spark energy and boasts 535 primary volts.

For vehicles equipped with nitrous, the Digital-6 Plus features a step retard function that intelligently adjusts the timing when the nitrous is engaged. Additionally, a 2-step rev limiter ensures consistent holeshot performance and protects against over-revving.

Compatible with points, amplifier, and mag pickup inputs, the Digital-6 Plus caters to 4, 6, or 8 cylinder engines.

Utilizing a high-speed RISC microcontroller, the MSD Digital 6 Plus expertly manages the ignition output while continuously analyzing crucial inputs like supply voltage, trigger signals, and RPM. The high-speed controller facilitates rapid adjustments to output voltage, multiple spark series, timing, and RPM limits, all while maintaining timing accuracy within 1° and 1% of the RPM limits. Robust debouncing and isolation of circuits and controllers in the Digital 6 Plus provide reliable protection against Electro-Magnetic Interference (EMI).

Features:

• Switch between two rev limits with rotary switches in 100 rpm increments.


• Single-stage retard for nitrous application and enhanced top-end performance.


• Start retard reduces stress on the starter, flywheel, and engine.


• Adjustable magnetic pickup compensation ensures precise trigger signals.


• LED display signals potential trigger signal issues or faulty charging system.
