Introducing AEM's 6 Channel CAN Sensor Module (PN 30-2226), a cost-effective solution offering a seamless integration of temperature, pressure, fuel level, and tachometer signals onto a CD Carbon Digital dash through the advanced AEMnet CAN bus. This module, designed to support the Bosch CAN 2.0b standard, not only caters to CD Carbon Digital dash users but extends compatibility to third-party devices accepting programmable CAN bus inputs. Unlock the potential to add extra channels to non-AEM ECUs, dashes, or loggers effortlessly.
Key Advantages:
Affordable Channel Expansion: The 6 Channel CAN Sensor Module serves as an economical and straightforward method to expand data channels on CD Carbon Digital Dashes. It covers essential channels, including tachometer, fuel level, and pressure/temperature sensors for carbureted vehicles.
Carbureted Vehicles: Tailored to meet the needs of carbureted vehicle users, this module facilitates the transfer of crucial data to a CD Carbon Digital Dash. It includes channels like tachometer, fuel level, and pressure/temperature sensors. Vehicle speed can be derived from a GPS-enabled dash or by integrating a Vehicle Dynamics Module.
Enhancing Stock/Reflashed ECUs: Perfect for CD Carbon Dash users linking channels from an OBDII CAN stock ECU, the module allows the addition of extra channels not available through the factory CAN stream.
Standalone CAN-based EFI: Ideal for racers utilizing a non-AEM CAN-based programmable ECU, the module acts as a valuable extension for adding extra channels to the dash for real-time monitoring or logging (logging requires CD Carbon Logging Dash).

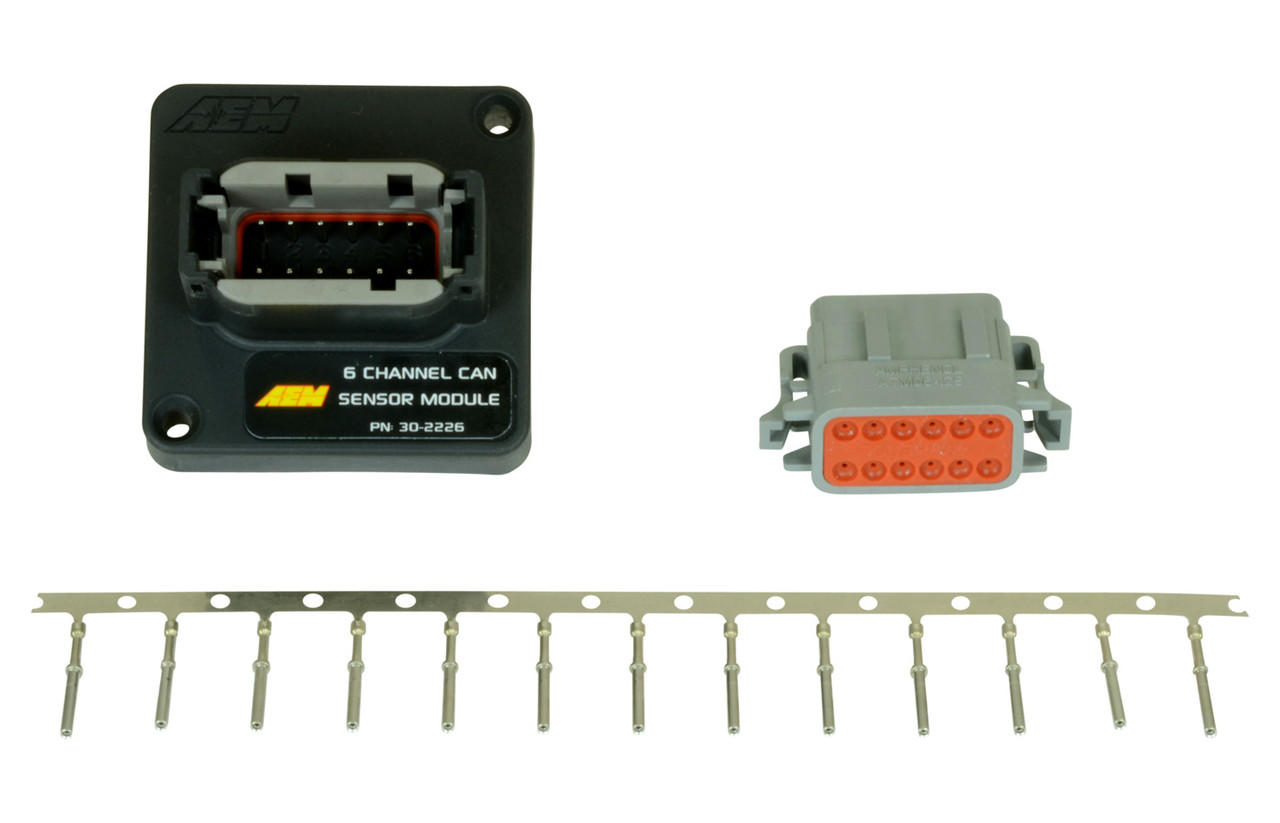

Module Contents: The 6 Channel CAN Sensor Module comprises two 0-5V analog inputs, two temperature inputs (thermistors), RPM input, and fuel level input. Housed in an IP67-rated enclosure, the unit is both dustproof and water-resistant. The package includes a 12-Pin DTM-style connector and pins for convenient setup.
Notable Features:
- Two (2) temperature (thermistor) inputs
- Two (2) dedicated 0-5V analog inputs
- One (1) dedicated fuel level input (0 to 250 Ohm range)
- One (1) tachometer/coil input
- Fixed CAN bus speed, header length, and base address
- IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
- Protected inputs
Upgrade your data acquisition capabilities with the AEM 6 Channel CAN Sensor Module—a versatile solution providing flexibility and functionality for diverse automotive applications.
