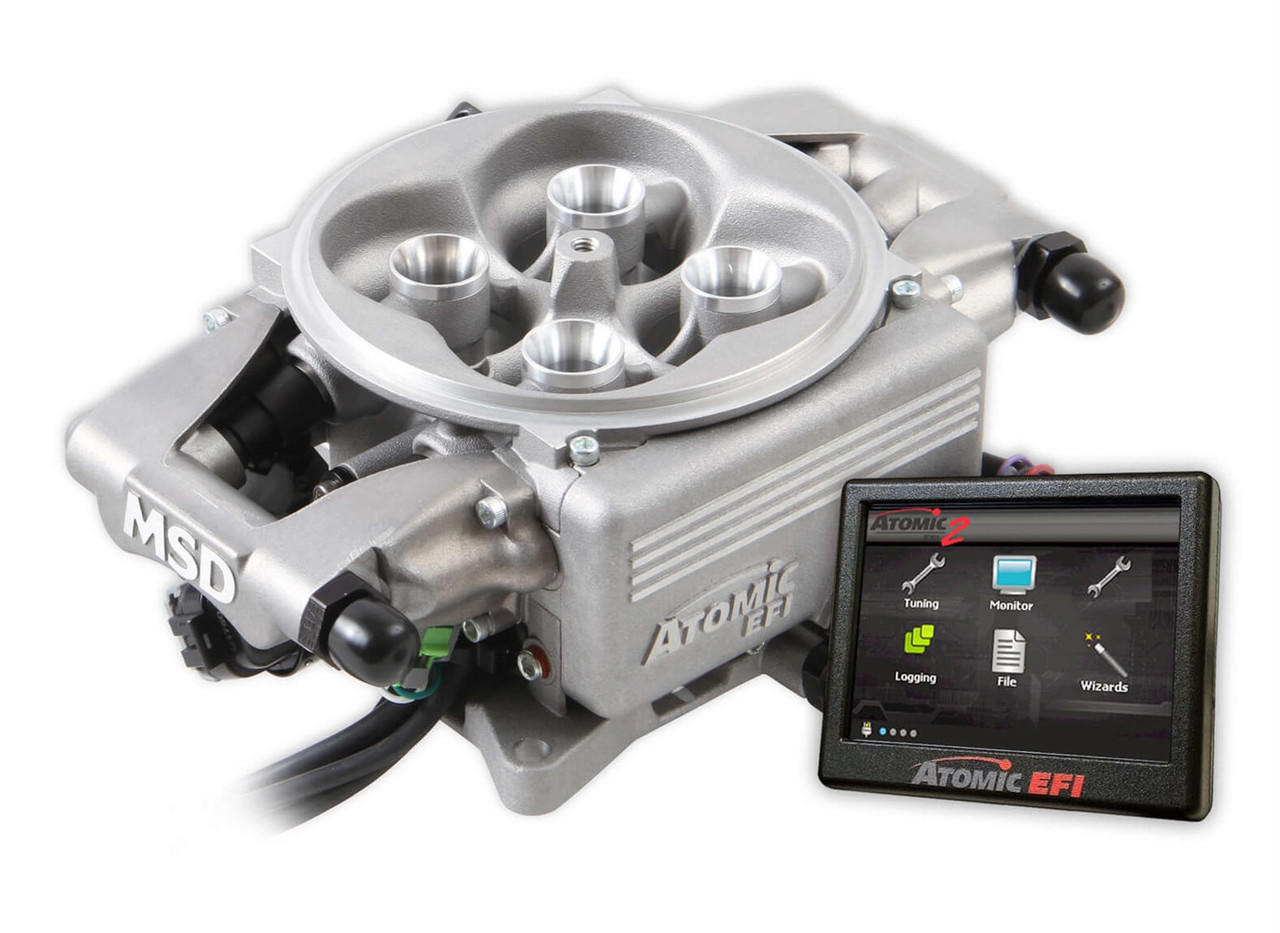

Msd Ignition Atomic 2 Efi Throttle Body Kit - Natural Finish

Unleash the power of your engine with the Atomic 2 EFI system from MSD, featuring four 100LB/HR Fuel Injectors that can support up to 650 HP naturally aspirated or 635 HP on forced induction applications. The Atomic 2 ECU introduces fuel map self-learning and ignition timing control, enhancing idle stability, drivability, and wide-open throttle horsepower. Specifically designed to fit on a 4150 intake manifold, it provides ample clearance for factory air cleaners.

The Atomic 2 EFI delivers the expected performance and drivability benefits of fuel injection, ensuring quick starts, smooth idle, and excellent throttle response. Supported by the ECU for ignition timing, the Atomic 2 becomes a winning combination. Initial timing setup is simplified through a compact handheld monitor, where answering a few engine-related questions kick-starts your journey.

Key Features:

• Direct Replacement: Designed as a direct replacement for common 4-barrel carburetors with a 4150-style (square bore) flange.
• Enhanced Throttle Body: The new throttle body flows 865 CFM and features 1 ¾” throttle plates.
• Improved Fuel Atomization: The booster design offers superior fuel atomization for optimal performance.
• Integrated ECU: The new ECU is 100% incorporated into the throttle body, eliminating the need for a separate power module.
• Calibration Wizard: A new and improved calibration wizard simplifies setup, creating a base map and initiating tuning without the need for a laptop.
• High-Resolution Touchscreen: The new 3.5” touchscreen provides a high-resolution, full-color interface for initial setup, tuning, and gauge displays.
• Optional Laptop Tuneability: Ideal for fine-tuning and unique engine combinations or boosted applications up to 21.5 PSI.
• Built-in Nitrous Control: Improved nitrous control supports wet/dry nitrous applications.
• Integrated Ignition Timing Control: Includes an ignition coil driver, eliminating the need for an external ignition box.
• Efficient Wiring: Only four wiring connections required (Battery +, Battery -, Switched Ignition & RPM).
• Modern Finish Options: Choose between the new black ceramic finish for durable, modern looks or the raw aluminum option.
• Higher Horsepower Rating: Supports up to 650 HP naturally aspirated or 635 HP forced induction with four 100 LB/HR injectors.
• Smooth Throttle Feel: Roller bearing throttle shafts provide a smooth throttle feel with less pedal effort.
• External Fuel Pressure Regulator: Required and set to a base pressure of 58.5 PSI, such as Holley 12-882 (Only on PN 2910-2 and 2910-2BK).
• Built-in Fuel Pump Control: Includes a 40 amp relay for fuel pump control.
• Effortless Fan Control: Fan control eliminates the need for an external fan controller, simply wire a relay to the fan and set the desired fan activation temperature.
• OEM Style Sensors: New OEM-style TPS/IAC and fuel pressure sensor ensure years of dependable service with easy replacement.
• Wideband Oxygen Sensor: The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn.
• Clamp-on Oxygen Sensor Kit: A new kit is included for simplified, leak-free installation, featuring stainless steel T-Bolt clamps and a weldable stainless steel oxygen sensor bung.
• Compatibility: Compatible with MSD, Holley Hyperspark, and OEM ignition systems, as well as Holley EFI digital dashes, gauges, and fuel system accessories.

Elevate your engine's performance with the cutting-edge features of the Atomic 2 EFI system.
